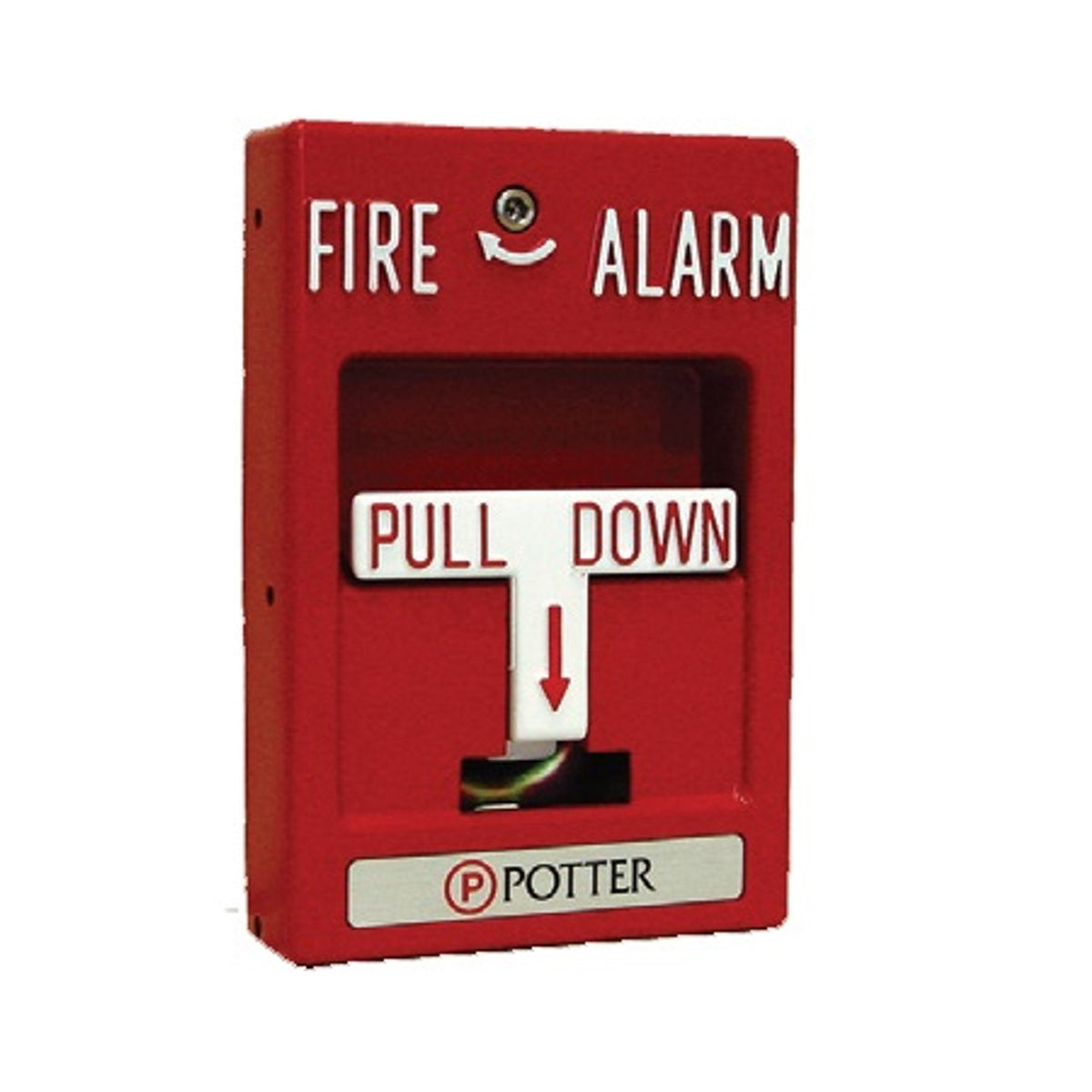

Potter Electric Signal - Usa 1000401 | Rms-1T-Wp Pull Station - Access Control

Potter Electric Signal - Usa - 1000401 - Additional Information

• The Potter single action series of pull stations operate by pulling the white operating handle straight down and the handle will lock into place. The Potter Pull Station Series offers a complete line of die-cast pull stations for a variety of applications focusing mainly on fire alarm systems. The pull stations are available in single or dual action models. All of the pull stations have a 10-amp snap action switch and a dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish.
• Switch Rating:
• 1 Amp @ 30 VDC
• 1 Amp @ 125 VAC
• Pull Station Dimensions - 4-3/4" H x 3-1/4" W x 7/8" D
• Weather Proof
• UL and cUL Listed, FM Approved, CSFM Listed, MEA Approved, ADA Compliant
• Single Action
• Terminal connectors
• 10 Amp Snap Action Switch
• Gold plated SPST contacts
• Mounts on standard single gangbox
• Surface backboxes available
• High-gloss red enamel finish
• Glass breakrod
• Made in the U.S.A.

Potter Electric Signal - Usa - 1000401 - Product Categories

• Security
• Access Control
• Access Control Accessories

Potter Electric Signal - Usa - 1000401 - Specifications

• Potter Electric Signal - Usa 1000401 Datasheet
