Potter Electric Signal - Usa 1000405 | Rms-6T-Exp-Wp-Lp Pull Station - Pull Station

Potter Electric Signal - Usa - 1000405 - Additional Information

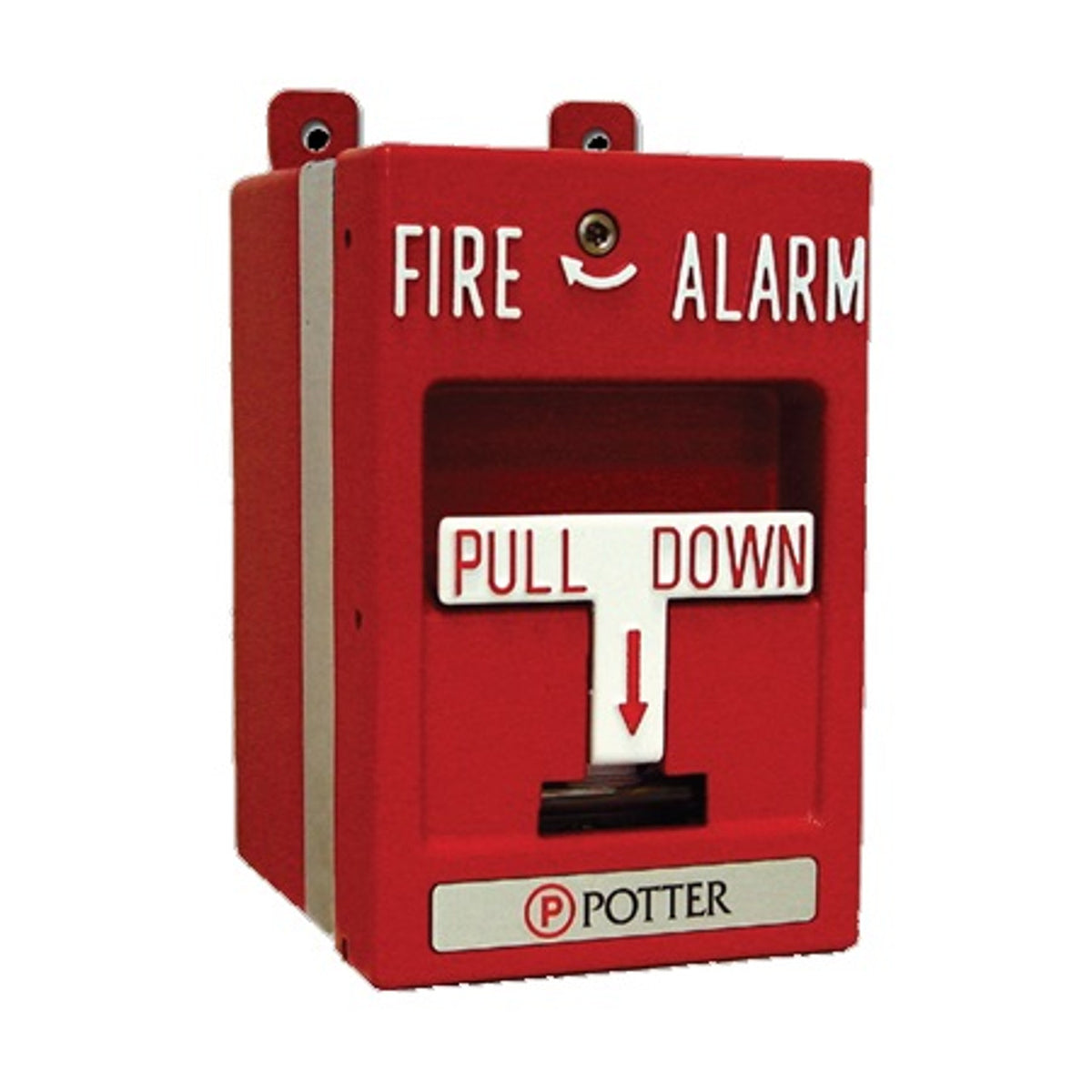

• The RMS-6T-EXP-WP is a high-quality, die-cast metal, explosion-proof manual fire alarm pull station available in either single or dual action configurations. The RMS-6T-EXP-WP is approved for NEMA-4X applications and is UL Listed and Factory Mutual Approved for use in Class I, G G roups B, C, and D; Class II, G G roups E, F, and G G ; and Class III hazardous environments. The RMS-6T-EXP-WP has a DPDT switch with terminal strip connections.
• UL Listed, FM Approved, Marine and Nema 4X Rated, CSFM Listed, MEA Approved, ADA Compliant
• Dual Action
• High gloss red enamel
• Double pole double throw switch
• Screw terminal connections
• Switch Rating:
• 1 Amp @ 30 VDC
• 1 Amp @ 125/250 VAC
• Switch Type - DPDT
• Terminal size - 12 TO 22 AWG
• Temperature - -55°C to +150°C
• Humidity - 90% relative humidity at 100°F
• Explosion Hazard Classifications:
• Class I Groups B,C and D
• Class II Groups E, F and G
• Class III
• Weatherproof Classification - NEMA Type 4X
• Conduit Fittings - 2
• Conduit Fitting Size - 3/4" - 14 NPT

Potter Electric Signal - Usa - 1000405 - Product Categories

• Security
• Fire Alarm Systems
• Pull Stations

Potter Electric Signal - Usa - 1000405 - Specifications

• Potter Electric Signal - Usa 1000405 Datasheet
