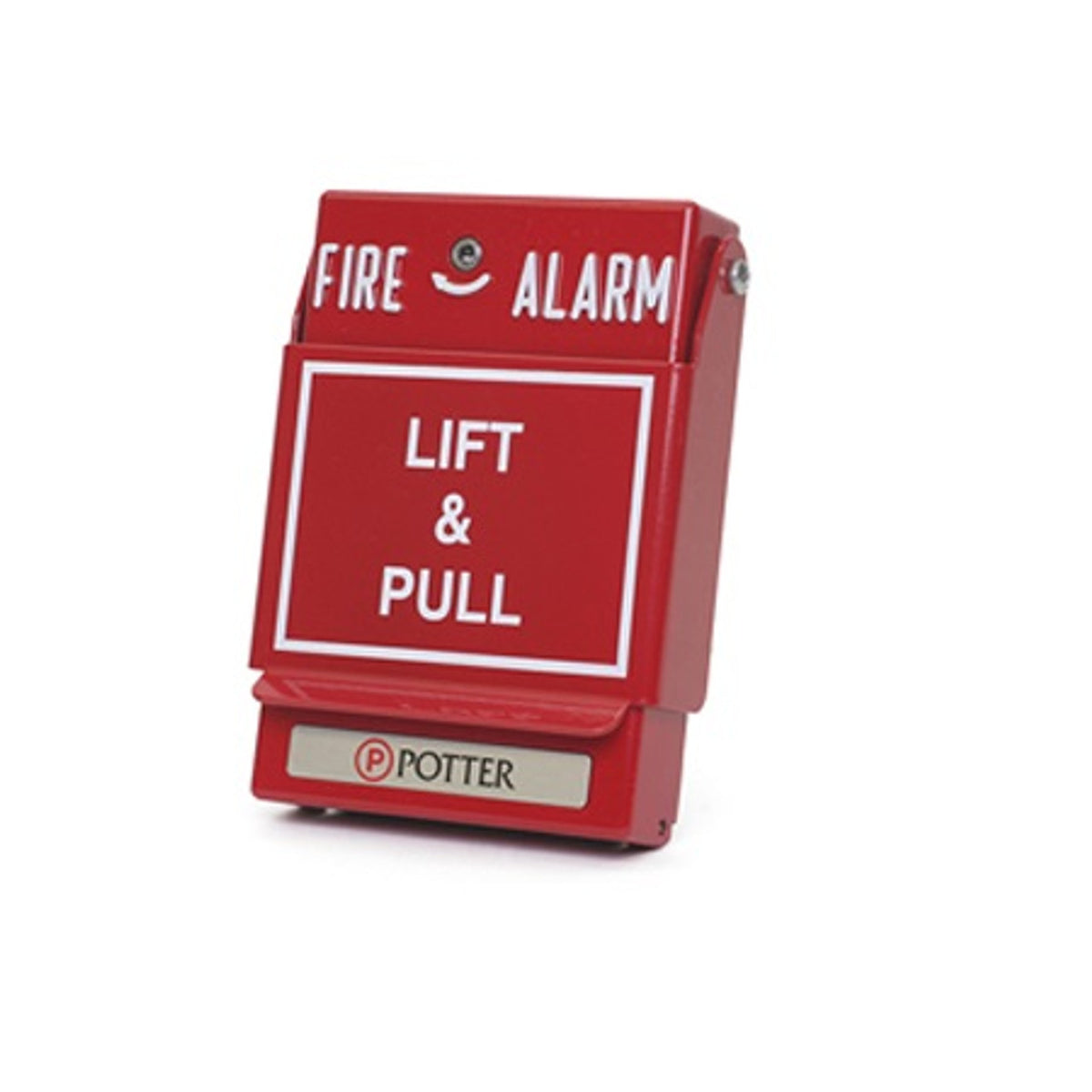

Potter Electric Signal - Usa 1000476 | P32-1T-Lp Pull Station - Pull Station

Potter Electric Signal - Usa - 1000476 - Additional Information

• UL and cUL Listed, FM Approved, CSFM Listed, MEA Approved, ADA Compliant
• Single or Dual Action
• Terminal connectors
• 10 Amp Snap Action Switch
• Gold plated SPST contacts
• Optional auxiliary contacts
• Mounts on standard single gangbox
• Surface backboxes available
• High-gloss red enamel finish
• Glass breakrod
• Made in the U.S.A. Potter
• The Potter Pull Station Series offers a complete line of die-cast pull stations for a variety of applications focusing mainly on fire alarm systems. The pull stations are available in single or dual action models. All of the pull stations have a 10-amp snap action switch and a dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish.
• The standard models have a hex key reset, however a key reset is also available. The models are available with shallow and deep surface mount back boxes and as a weatherproof version.

Potter Electric Signal - Usa - 1000476 - Product Categories

• Security
• Fire Alarm Systems
• Pull Stations

Potter Electric Signal - Usa - 1000476 - Specifications

• Potter Electric Signal - Usa 1000476 Specification Sheet
• Potter Electric Signal - Usa 1000476 Datasheet
