Potter Electric Signal - Usa 1010102 | Osysu-1 Supervisory Switch - Switch

Potter Electric Signal - Usa - 1010102 - Additional Information

• -40º to 140º (-40ºC to 60ºC) operating temperature range
• Visual switch indicators
• Two conduit entrances
• Adjustable length trip rod
• Accomodates up to 12AWG wire
• Three position switch detects tampering and valve closure

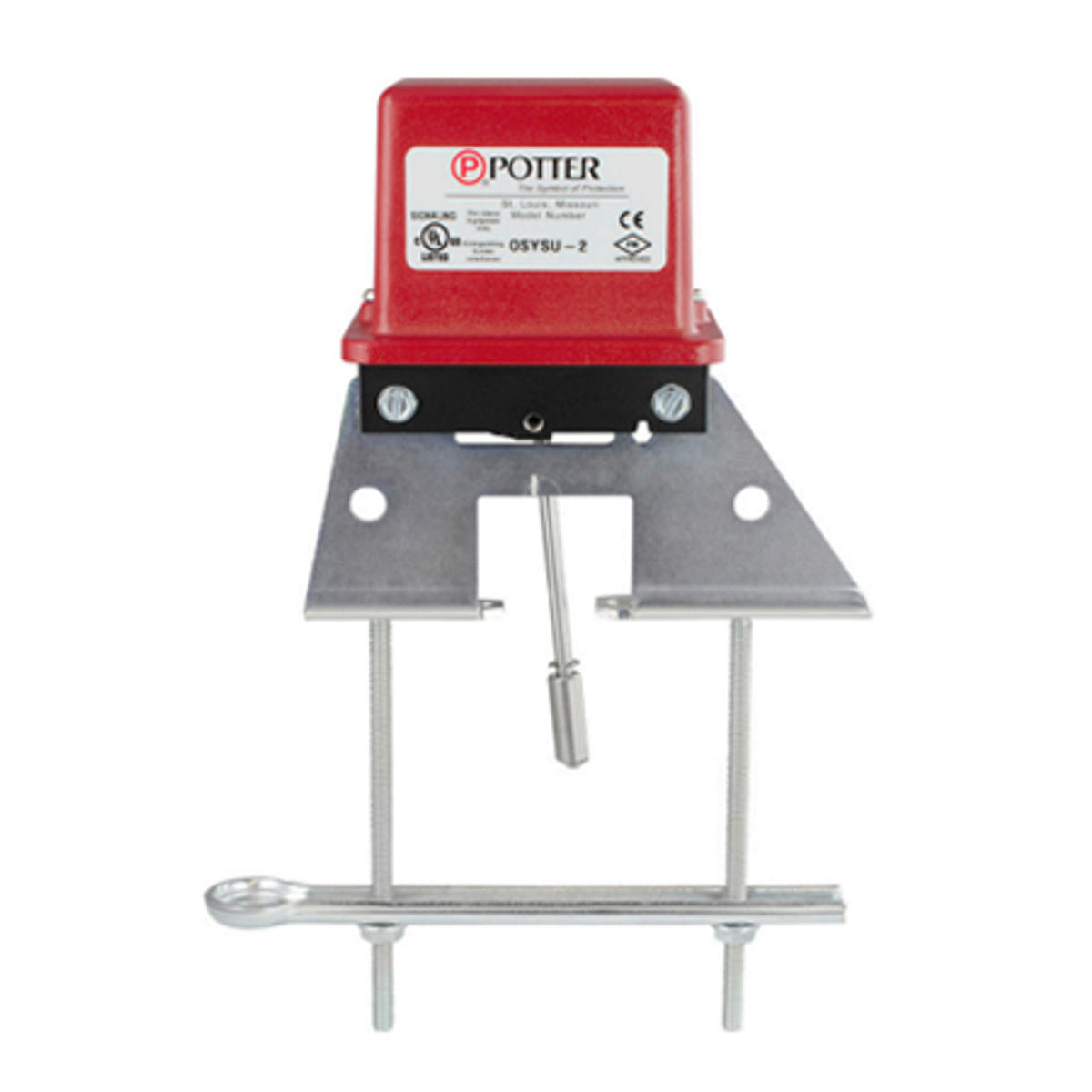

• The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2 to 12 (50mm to 300mm). They will mount on some valves as small as ½ (12,5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
• Specifications
• Dimensions
• 6.19"L X 2.25"W X 5.69"H
• Weight: 1.6 lbs (.73 kg)
• Enclosure
• Cover: Die Cast Finish: Red Powder Coat
• Base: Die Cast Finish: Black Powder Coat
• All parts have corrosion resistant finishes
• Cover Tamper
• Tamper Resistant Screws
• Optional Cover Tamper Switch Available
• Contact Ratings
• OSYSU-1: One Set of SPDT (Form C)
• 10.0 Amps at 125/250 VAC
• 2.0 Amps at 30VDC Resistive
• 10 mAmps minimum at 24 VDC
• Environmental Limitations
• -40º F to 140ºF (-40ºC to 60ºC)
• NEMA 4X (IP 65) and NEMA 6P (IP 67) Enclosure
• (Use suitably rated conduit and connector)
• Indoor or Outdoor Use (See OSYSU-EX Bulletin
• 5400705 for Hazardous locations)
• Conduit Entrances: 2 knockouts for 1/2" conduit provided
• Service Use
• NFPA 13, 13D, 13R, 72
