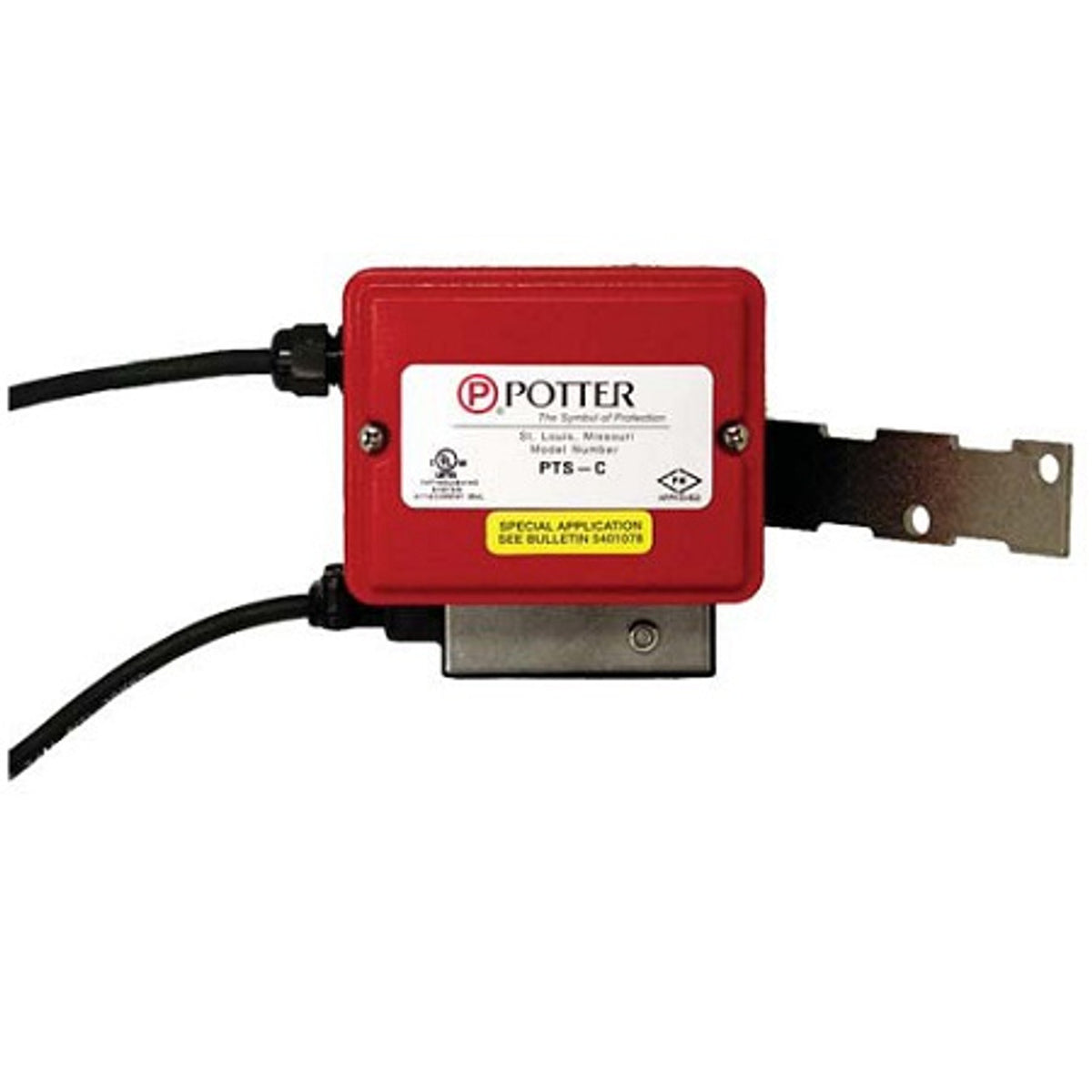

Potter Electric Signal - Usa 1010201 | Switch - Pts-C Plug Type Supervisory

Potter Electric Signal - Usa - 1010201 - Additional Information

• The Model PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves. Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to flooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion. Turning the valve wheel will pull the plug out of the receptacle. The plug cannot be reinserted after operation until the plug receptacle cover is removed with the special hex key provided. This key should be left with the building owner or responsible party. Replacement or additional cover tamper screws and hex keys are available. For cover tamper screws, order stock no. 5490344. For hex key, order stock no. 5250062.
• UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
• Dimensions:
• 7" L x 3.75 W x 3" D (including bracket)
• (17,7 cm x 9,5 cm x 7,6 cm)
• Weight: 13.6 oz. (385,5 g.)
• Enclosure - Non-Corrosive Composite Material
• Environmental Limitations:
• NEMA 4 and NEMA 6P rated enclosure when proper electrical fittings are used. (IP67)
• Temperature range: -40° F to 140° F (-40° C to 60° C)
• Housing Cover Tamper - Activated by housing cover removal.
• Contact Ratings:
• SPDT Plug Contacts: 100 mA at 28 VDC/AC
• 250 mA at 12 VDC/AC
• SPDT Cover Tamper: 250 mA at 28 VDC/AC
• Cable - 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
