Potter Electric Signal - Usa 1010202 | Osysu-2 Supervisory Switch -...
Description
Description

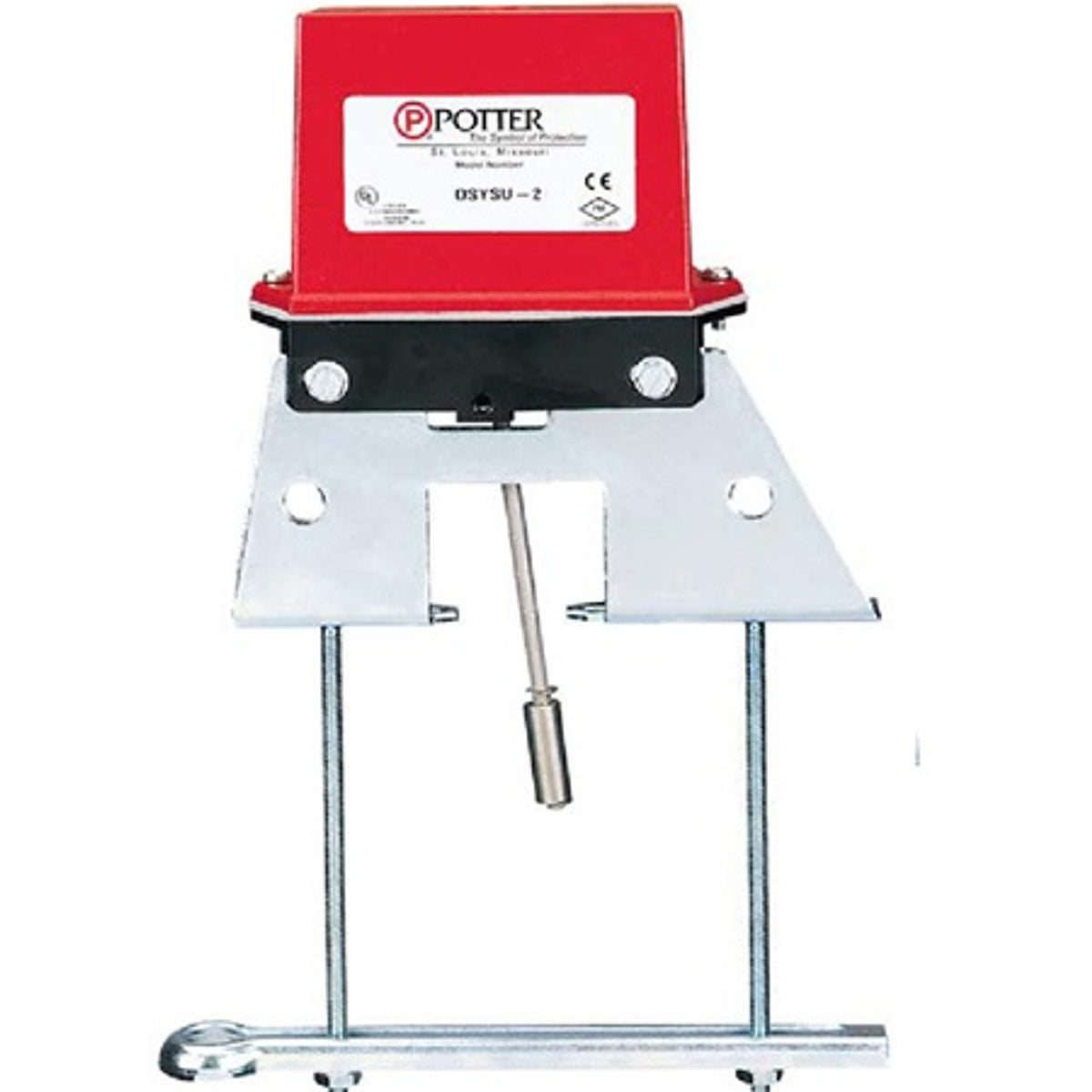

The OSYSU is used to monitor the open position of an OS and Y (outside screw And yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts And the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS and Y valves ranging in size from 2" - 12" (50 mm - 300mm). They will mount on some valves as small as 1/2 Inch (12.5 mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
Potter Electric Signal - Usa - 1010202 - Features
- NEMA 4X (IP 65) and 6P (IP 67)
- Enclosure is 4X. For additional corrosion protection of mounting hardware, use model OSYSU-2 CRH
- -40 to 60 deg C operating temperature range
- Visual switch indicators
- Two conduit entrances
- Adjustable length trip rod
- Acodates up to 12AWG wire
- Three position switch detects tampering and valve closure
- Knurled mounting bracket prevents slipping
- Fine adjustment feature for fast, easy installation
- One or two SPDT contact models (-1,-2)
- All parts have corrosion resistaninishes
- Tamper Resistant Screws, Optional Cover Tamper
Specifications
Specifications
Potter Electric Signal - Usa - 1010202 - Additional Information
- The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2" to 12" (50mm to 300mm). They will mount on some valves as small as ™" (12,5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device and should be left with the building owner or responsible party. Replacement or additional cover screws and hex keys are available. See Ordering Information.
- Dimensions:
- 6.19"L X 2.25"W X 5.88"H
- 15,7cm L X 5,7cm W X 14,6cm H
- Weight: 2 lbs (0,9 kg)
- Enclosure:
- Cover - Die-Cast
- Finish - Red Spatter Enamel
- Base - Die Cast Zinc
- All parts have corrosion resistant finishes
- Cover Tamper:
- Tamper Resistant Screws
- Optional Cover Tamper Switch Available
- Contact Ratings:
- Two sets of SPDT (Form C)
- 15 Amps at 125/250VAC
- 2.5 Amps at 30VDC resistive
- Environmental Limitations:
- -40™F to 140™F (-40™C to 60™C)
- NEMA 4 and NEMA 6P Enclosure (IP67)
- Indoor or outdoor use (Not for use in hazardous locations. See Bulletin No. 5400705 OSYS-U-EX for hazardous locations).
- Conduit Entrances - 2 knockouts for 1/2" conduit provided
- Service Use:
- Automatic Sprinkler NFPA-13
- One or two family dwelling NFPA-13D
- Residential occupancy up to four stories NFPA-13R
- National Fire Alarm Code NFPA-72
Potter Electric Signal - Usa - 1010202 - Product Categories
- Security
- Fire Alarm Systems
- Sprinkler and Water Flow Monitoring
Potter Electric Signal - Usa - 1010202 - Specifications
| Brand Name | Potter Electric Signal - Usa |
|---|---|
| Manufacturer Part Number | 1010202 |
| Item Description | Osysu-2 Supervisory Switch - Switch |
| Device Type | Valve Supervisory Switch |
| UNSPSC Code | 46171600 |
| Technical Information | callus Listed, FM Approved, CE Certified, RoHS Compliant |
