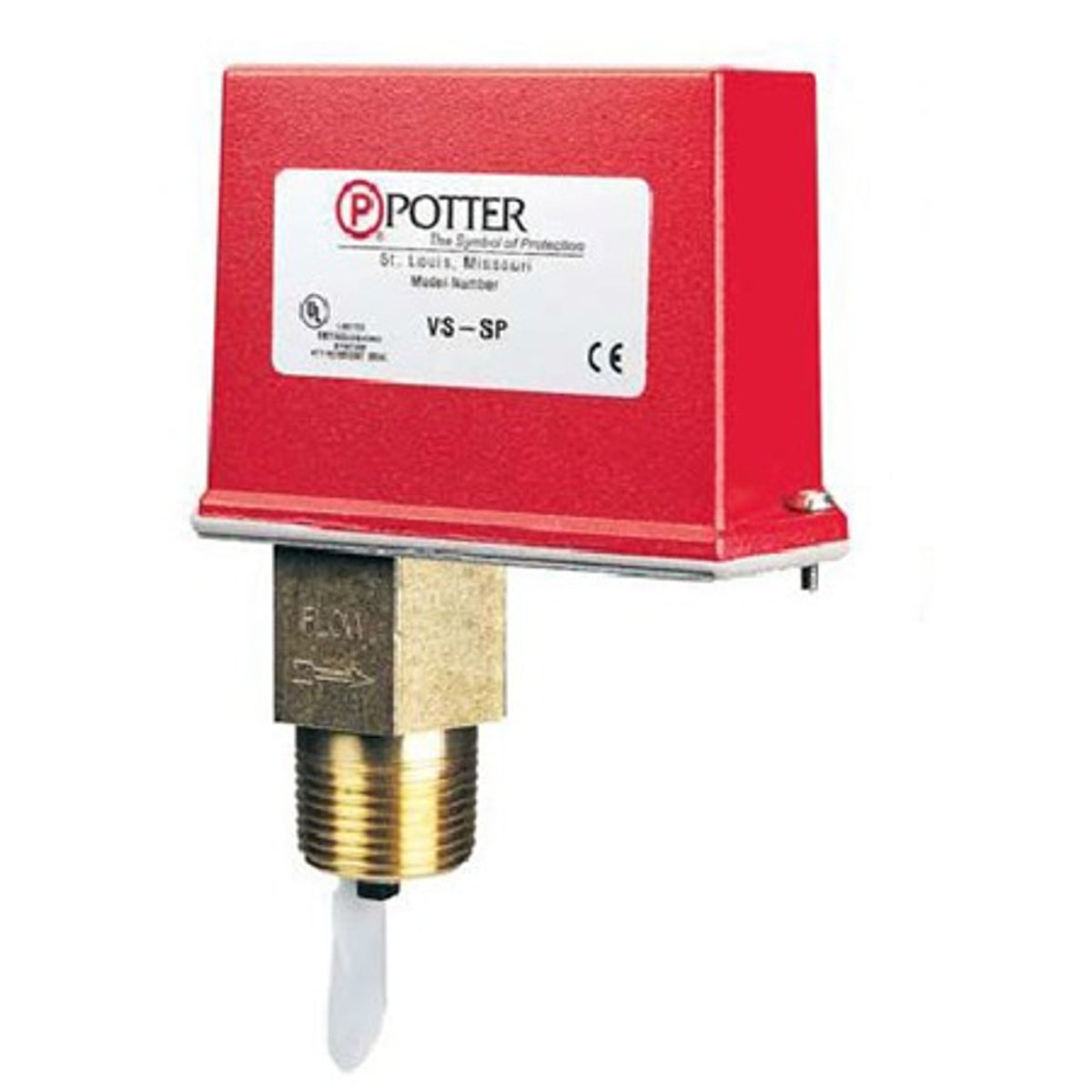

Potter Electric Signal - Usa 1111100 | Vs-Sp Water Flow Switch - Sprinkler

Potter Electric Signal - Usa - 1111100 - Additional Information

• Specifications
• Service Pressure - Up to 250 PSI (17,2 BAR)
• Minimum Flow Rate for Alarm - 10 GPM (38 LPM)
• Maximum Surge - 18 FPS (5,5 m/s)
• Conduit Entrance - One opening for 1/2" conduit
• Enclosure - Die-cast, red enamel finish Cover held in place with tamper resistant screws
• Contacts - One set of SPDT (Form C)15 Amps at 125/250VAC, 0.5 Amps at 125VDC , 0.25 Amps at 250VDC, 2.5 Amps at 30 VDC resistive
• Usage - Listed plastic, copper and schedule 40 iron pipe For pipe sizes - 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), and 2" (50mm)
• Environmental Specifications - Suitable for indoor or outdoor use with factory installed gasket and die-cast housing, NEMA 4/IP55 rated enclosure
• Automatic Sprinkler - NFPA-13
• One or two family dwelling - NFPA-13D
• Residential occupancy up to four stories - NFPA-13R
• National Fire Alarm Code - NFPA-72

Potter Electric Signal - Usa - 1111100 - Product Categories

• Security
• Fire Alarm Systems
• Sprinkler and Water Flow Monitoring

Potter Electric Signal - Usa - 1111100 - Specifications

• Potter Electric Signal - Usa 1111100 Datasheet
