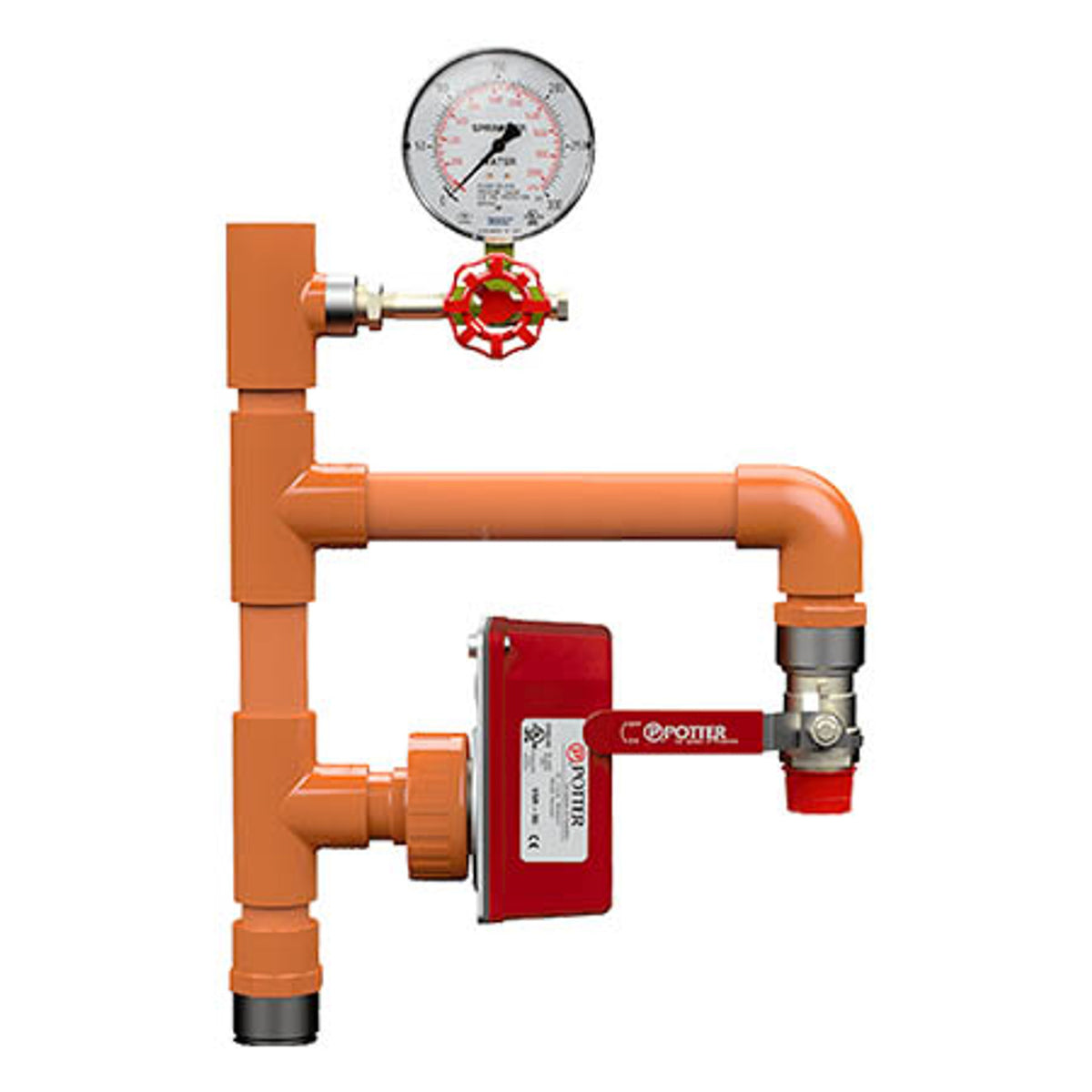

Potter Electric Signal - Usa 1119067 | Rd13-1" Riser No Check Valve - Sprinkler

Potter Electric Signal - Usa - 1119067 - Additional Information

• Pre-assembled and pressure tested
• 1" nominal pipe size
• Female adapter ships loose so riser can be installed in a confined space
• Fits in standard 2x4 construction walls
• Includes 3 way valve to allow for calibration of pressure gauge
• The RD13 Riser is constructed from Listed CPVC products suitable for fire sprinkler services subject to the limitations and installation requirements of Flameguard by Spears. The RD13 Riser incorporates a UL Listed VSRSFG flow switch, gauge, drain valve. The VSRSFG flow switch is equipped with union connection to facilitate the installation and removal of the switch in confined spaces.
• Service Pressure - 175 PSI (12,07 BAR) UL
• Flow Sensitivity Range for Signal - 410 GPM (1538 LPM) UL
• Maximum Surge - 18 FPS (5.5 MPS)
• Conduit Entrances: - Two knockouts provided for 1/2" conduit.
• Contact Ratings:
• Two sets of SPDT (Form C)
• 10.0 Amps at 125/250V AC
• 2.0 Amps at 30V DC Resistive
• 10 m Amps min. at 24V DC
• Environmental Specifications:
• Temperature range: 40°F 120°F, (4.5°C 49°C) UL
• Service Use:
• Automatic Sprinkler NFPA13
• One or two family dwelling NFPA13D
• Residential occupancy up to four stories NFPA13R
• National Fire Alarm Code NFPA72
• UL, CUL, and CSFM Listed
• 1 Inch Model Dimensions: 22 x 13 x 2
