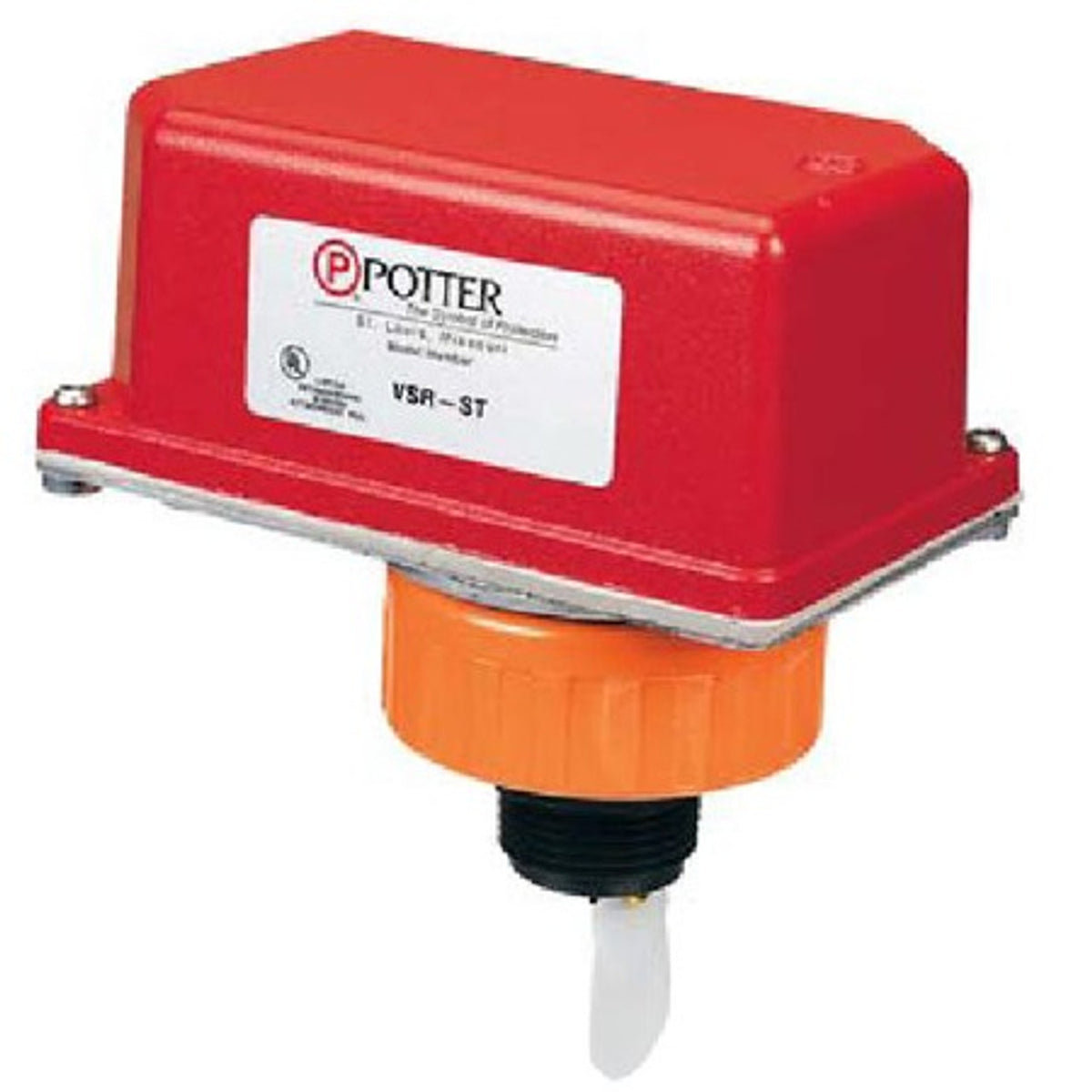

Potter Electric Signal - Usa 1144465 | VSR-ST Sprinkler Threaded Flow Switch With Plastic Threaded Union

Potter Electric Signal - Usa - 1144465 - Additional Information

• Specifications
• Service Pressure - Up to 175 PSI (12,07 BAR)
• Minimum Flow Rate for Alarm - 10 GPM (38 LPM)
• Maximum Surge - 18 FPS (5,5 m/s)
• Enclosure - Die-cast, red powdercoat finish
• Tamper - Cover incorporates micro-switch
• Cover Tamper - Activated by cover removal
• Cover Tamper Switch Contacts - One set SPDT, Rated at 250VAC
• Cover Tamper Switch Terminations - 8" 22AWG wire leads
• Contact Ratings - Two sets of SPDT (Form C), 10.0 Amps at 125/250 VAC, 2.0 Amps at 30 VDC Resistive
• Conduit Entrances - Two openings provided for 1/2" conduit, Individual switch compartments suitable for dissimilar voltages
• Usage - Listed plastic, copper and schedule 40 iron pipe, Fits pipe sizes - 1", 1¼", 1½" and 2"
• Environmental Specifications - Suitable for indoor or outdoor use with factory installed gasket and die-cast housing for NEMA 4/IP55 rated enclosure
• Temperature range - 40° F to 120° F (4,5° C to 49° C)
