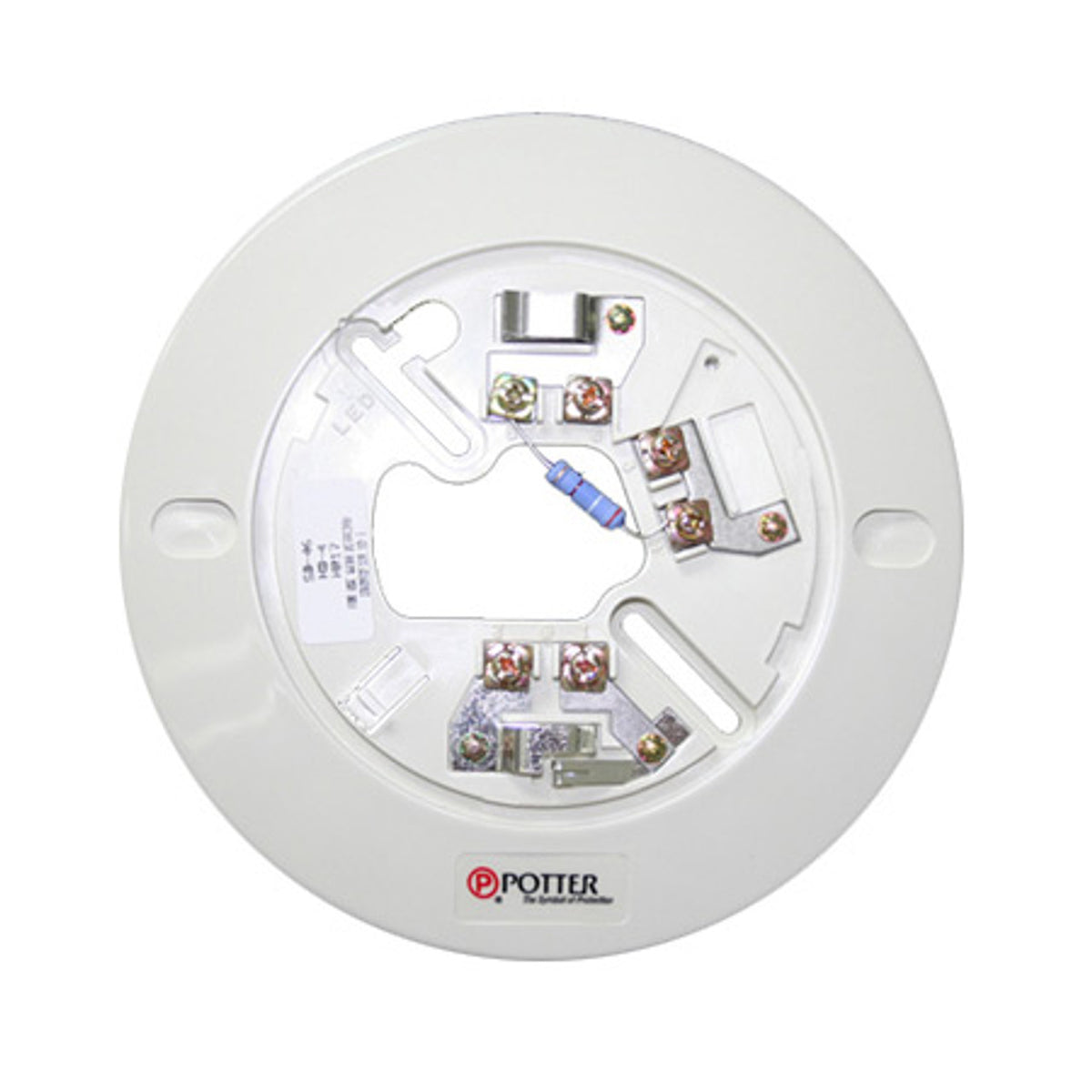

Potter Electric Signal - Usa 1430015 | Sb-81R Smoke Detector Base - Smoke Detector

Potter Electric Signal - Usa - 1430015 - Additional Information

• The SB Series is a 6 polarized base with annunciator output featuring a current limiting resistor, and a blocking diode to enhance annunciator function. The SB Series Smoke Detector base is designed specifically for use with the Potter Smoke Detector Models IS-24, PS-24 and PS-24H.These detectors will not sense fires which start where smoke does not reach the detector
• Compatibility - For use on Potter PFC 3000 and 5000 Series; Not for use on Potter release panels Check other panel manufacturer s compatibility listings.
• UL and ULC Listed
• Electrical:
• 24VDC
• Polarized
• Suitable for use with Potter PFC Series Controls
• Mounting - 3 1/4 or 4 outlet box
• Annunciator Output - 15mA at 24VDC
• Alarm Current - 81mA @ 24 VDC - RELAY BASE
• Service Use - National Fire Alarm Code NFPA-72

Potter Electric Signal - Usa - 1430015 - Product Categories

• Security
• Fire Alarm Systems
• Smoke and Heat Detection

Potter Electric Signal - Usa - 1430015 - Specifications

• Potter Electric Signal - Usa 1430015 Datasheet
