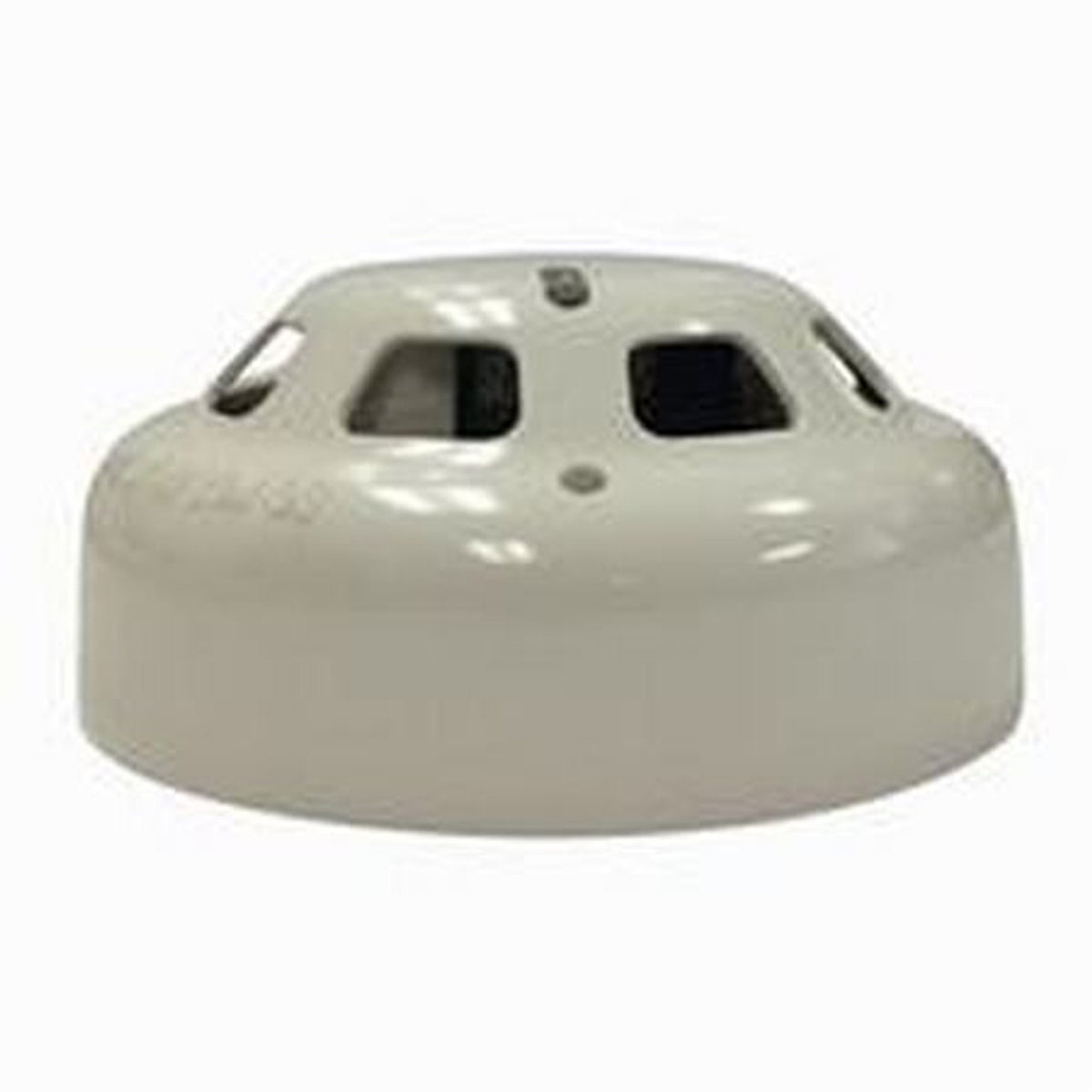

Potter Electric Signal - Usa 1430036 | Cps-24: Photoelectric Smoke - Smoke Detector

Potter Electric Signal - Usa - 1430036 - Additional Information

• 360ºview of detector status LED
• Low profile, 2" high (with base)
• 2 or 4 wire base compatibility, relay bases available
• Highly stable operation, RF/Transient protection
• Low standby current, 59µA at 24VDC
• One built-in power/sensitivity supervision/alarm LED
• The CPS-24 is a reliable, high quality Photoelectric Smoke Detector. It can be used in all open areas where Photoelectric Smoke Detectorsare required, including in-duct applications. The computer-designedsmoke chamber makes the CPS-24 well suited for detectingsmoldering fires as well as fast-flaming fires.
• Specifications
• Light Source: GaAIAs Infrared Emitting Diode
• Rated Voltage: 12 or 24 VDC
• Working Voltage: 8 - 35.0 VDC
• Maximum Voltage: 42 VDC
• Supervisory Current: 59µA @ 24 VDC
• Surge Current: 160µA max. @ 24VDC
• Alarm Current: 150mA max. @24 VDC
• Air Velocity Range: 0-4000 fpm
• Ambient Temperature: 32°F to 120°F (0°C to 49°C)
• Sensitivity Test Feature: Automatic Sensitivity window verification test
• Mounting
• Refer to Potter SB Series Smoke Detector Base series, bulletin no.
• 8840008
