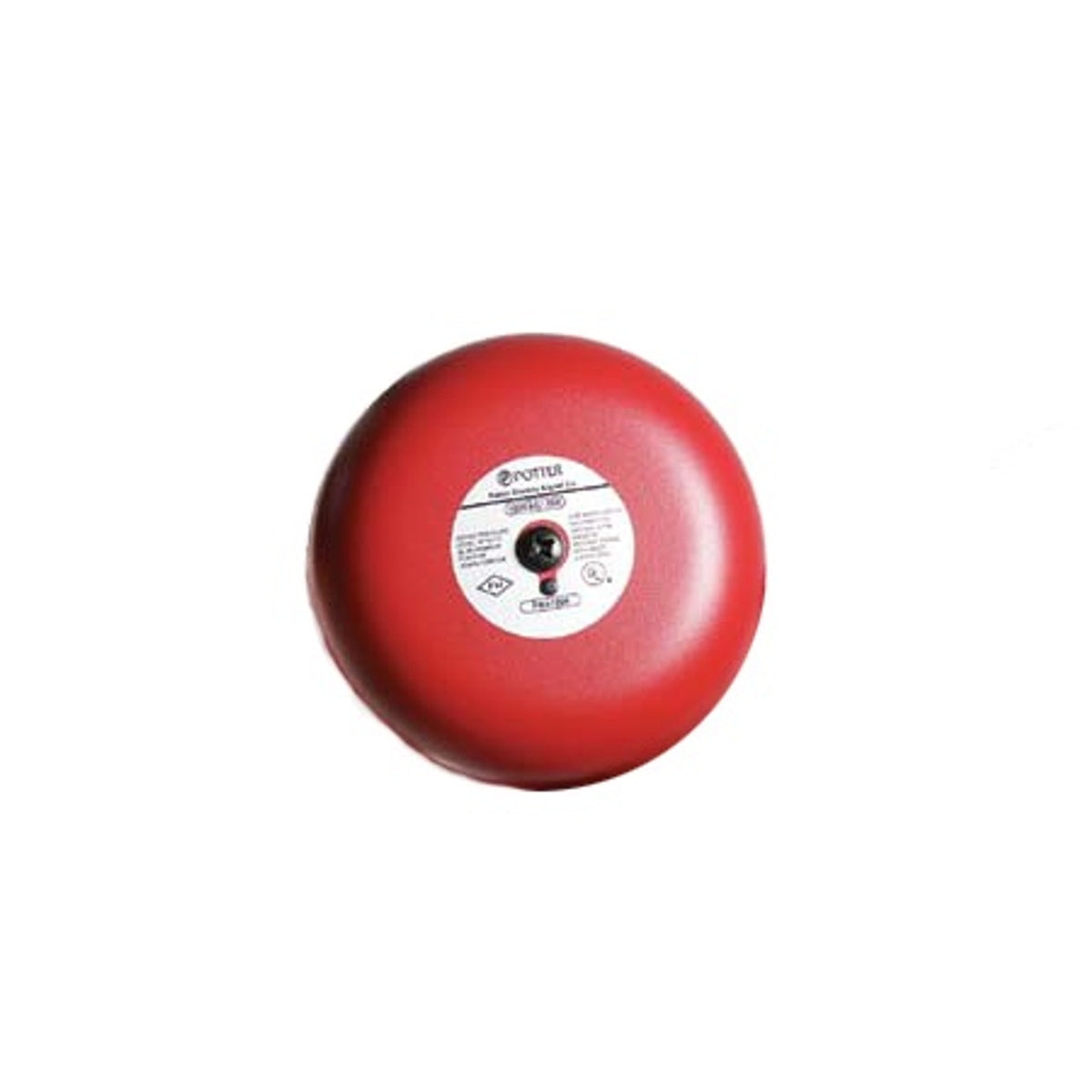

Potter Electric Signal - Usa 1806120 | Pba-1206 120Vac 6" Bell - Switch

Potter Electric Signal - Usa - 1806120 - Additional Information

• Size - 6 Inches
• Voltage - 120VAC
• Max. Current - .05A
• Typical dB at 10 ft. - 92
• Minimum dB at 10 ft. - 83
• These vibrating type bells are designed for use as fire, burglar or general signaling devices. They have low power consumption and high decibel ratings. The unit mounts on a standard 4" (101mm) square electrical box for indoor use
• UL, ULC, and FM Approved
• Sizes Available - 6" (150mm), 8" (200mm) and 10" (250mm)
• Voltage - 120VAC
• Service Use:
• Fire Alarm
• General Signaling
• Burglar Alarm
• Environment:
• Indoor or outdoor use
• -40° to 150°F (-40° to 66°C)
• Termination - 4 No. 18 AWG stranded wires
• Finish - Red powder coating

Potter Electric Signal - Usa - 1806120 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

Potter Electric Signal - Usa - 1806120 - Specifications

• Potter Electric Signal - Usa 1806120 Datasheet
