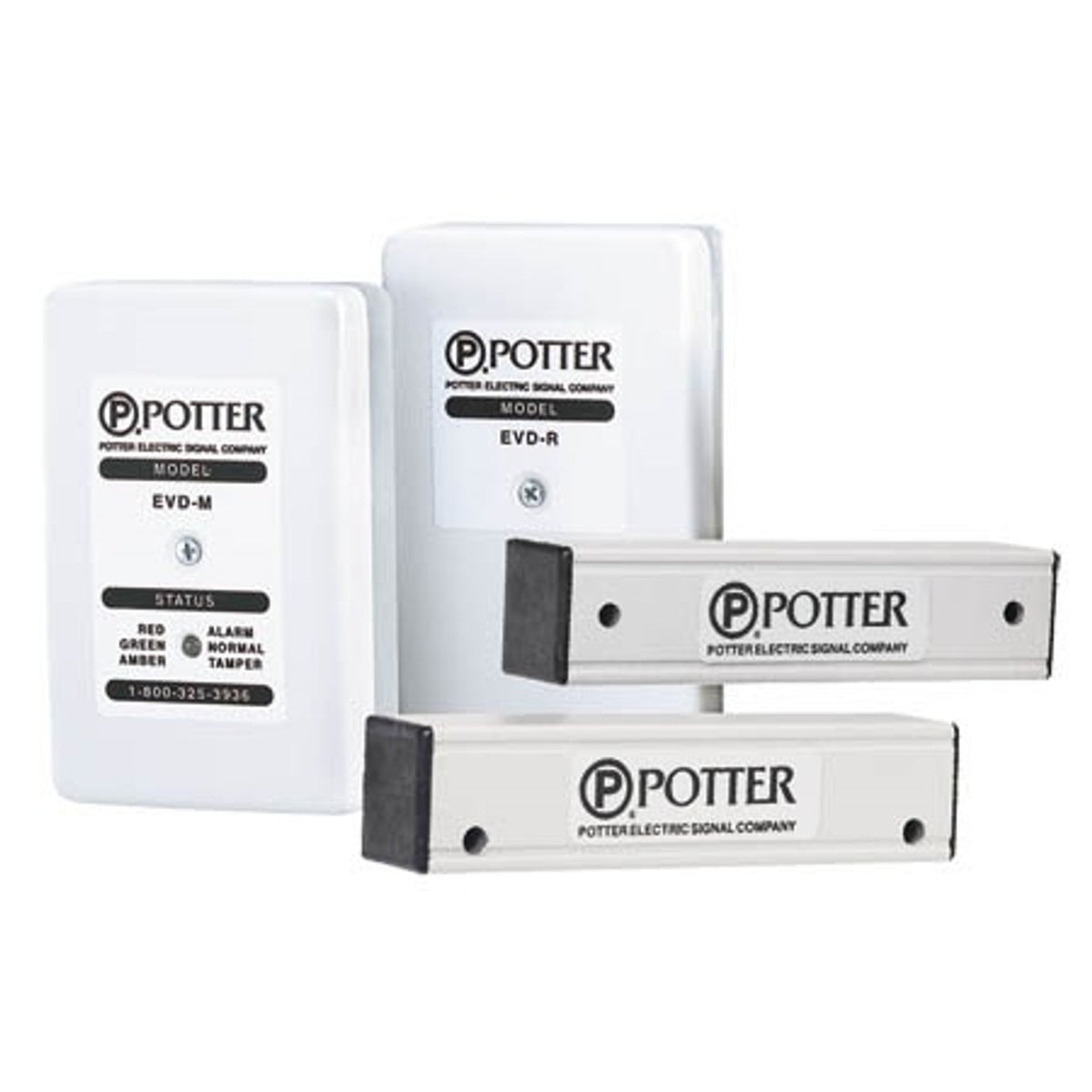

Potter Electric Signal - Usa 2020240 | Evd-2C Safe/Vault Pak - Fire Signal

Potter Electric Signal - Usa - 2020240 - Additional Information

• Detects all common threats to safes and vaults.
• Sophisticated signal processing provides unprecedented sensitivity without false alarms.
• Expandable system allows up to 15 remote pickups, (Model EVD-R).
• Reliable, sensitive piezo sensor technology.
• On board high security safe contact interface.
• Integral, multi-color status LED.
• The EVD-2 can be mounted on the safe door (single door safes only). When the detector is mounted on the safe door, the maximum linear distance decreases to 73.5" from the sensor location, through the hinges, to all points on the safe body..
• Specifications
• Dimensions: (EVD-M and EVD-R) 5.10"H x 3.26"W x 1.20"D (13,0cm H x 8,3cm W x 3,0cm D)
• Weight
• EVD-M 0.64 lbs. (0,29 kg)
• EVD-R 0.62 lbs. (0,28 kg)
• Enclosure
• Base: Die-cast aluminum
• Cover: Stamped Steel, 22 Gauge
• Power Input: 9.0 VDC to 16.0 VDC, 12 VDC Nominal Maximum 0.1 V ripple
• Typical Current
• Normal Standby Condition: 34 mA
• Alarm Condition: 33 mA
• Tamper Condition: 41 mA
• Each additional EVD-R Remote Pickup adds (approx.) 3 mA With model RTA connected, add 10 mA in Tamper Condition and 10 mA in Alarm Condition.
• Maximum Current
• Normal Standby Condition: 36 mA
• Alarm Condition: 33 mA
• Tamper Conditio: 41 mA
• With model RTA connected, add 14 mA in Tamper Condition and 14 mA in Alarm Condition.
• Contact Data
• Alarm Relay: Form C, 2.0 Amps at 30 VDC
• Tamper Contact: Form A, 2.0 Amps at 30 VDC
