Potter Electric Signal - Usa 2020300 | Evd-2 Electronic Vibration - Switch

Potter Electric Signal - Usa - 2020300 - Additional Information

• UL and ULC Listed
• Detects all common threats to safes and vaults.
• Sophisticated signal processing provides unprecedented sensitivity without false alarms.
• Expandable system allows up to 15 remote pickups, (Model EVD-R).
• Reliable, sensitive piezo sensor technology.
• On board high security safe contact interface.
• Integral, multi-color status LED.
• Built in test circuit on both controller and remote pickups.

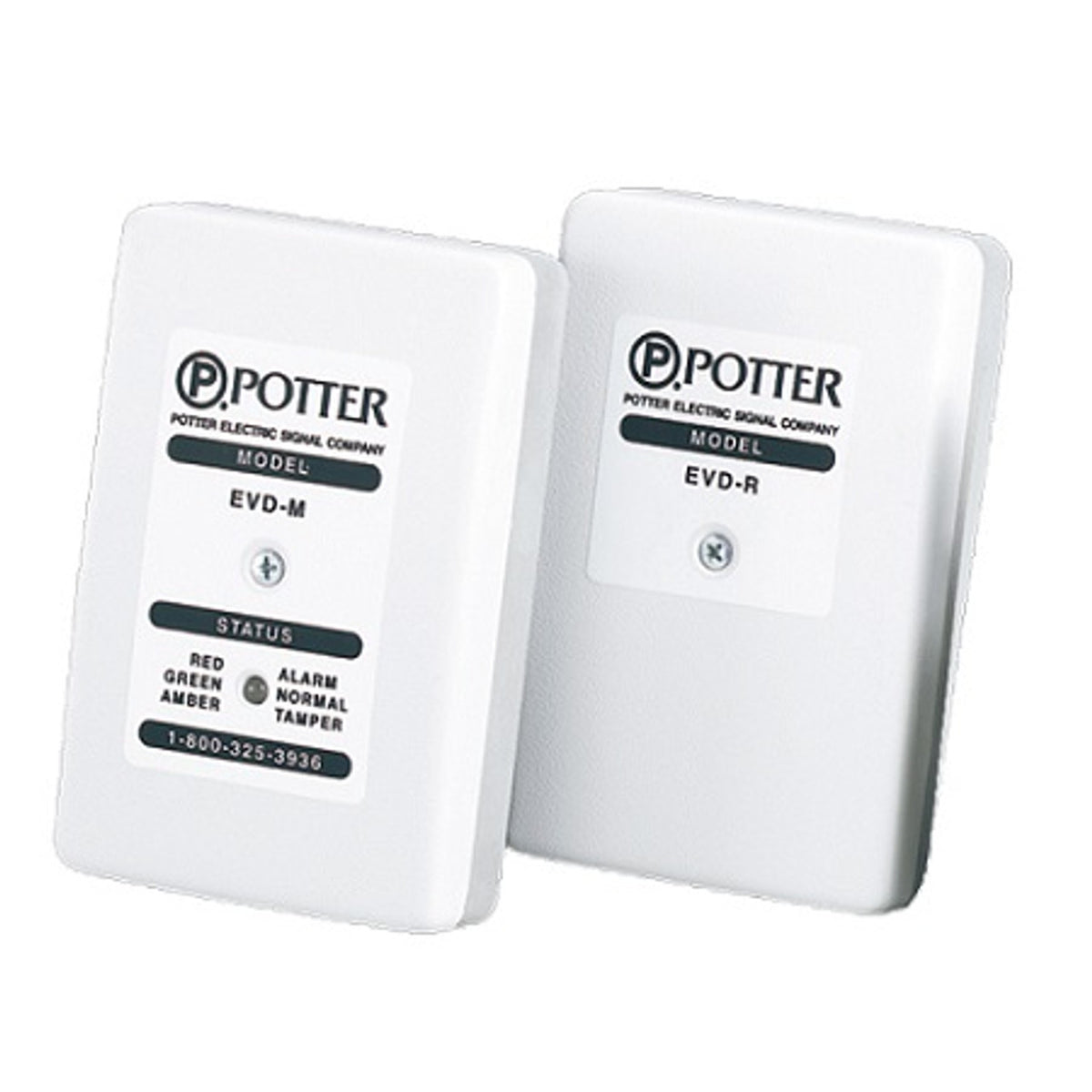

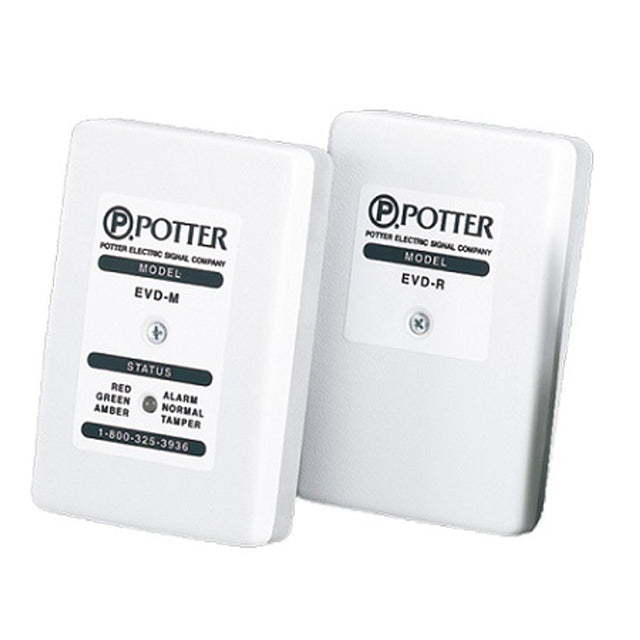

• The EVD-2, Electronic Vibration Detector System, is listed by Underwriters Laboratories, Inc. for primary protection of Mercantile or Bank, safe or vault, ATM machines and supplementary protection of interior units such as file cabinets, display cases, walls and ceilings. The System must be used with an appropriate UL listed control unit. The standard EVD-2 system consists of a model EVD-M controller and a model EVD-R remote pickup.
• Dimensions - 5.10"H x 3.26"W x 1.20"D (13,0cm H x 8,3cm W x 3,0cm D)
• Weight - EVD-1 0.64 lbs. (0,29 kg)
• Enclosure:
• Base: Die-cast aluminum
• Cover: Stamped Steel, 22 Gauge
• Power Input:
• 9.0 VDC to 16.0 VDC
• 12 VDC Nominal
• Maximum 0.1 V ripple
• Note: If the EVD is going to be powered by the auxiliary power of a burglar panel, and the burglar panel has ground fault detection, it may be necessary to power the EVD from a separate UL listed 12 VDC power supply. Alternately, the safe may be insulated from ground.
• Typical Current:
• Supply Voltage 12.0 VDC)
• Normal Standby Condition: 34 mA
• Alarm Condition: 33 mA
• Tamper Condition: 41 mA
• With model RTA connected, add 10 mA in Tamper
• Condition and 10 mA in Alarm Condition.
• Maximum Current:
• (Supply Voltage 16.0 VDC)
• Normal Standby Condition: 36 mA
• Alarm Condition: 33 mA
• Tamper Condition: 43 mA
• With model RTA connected, add 14 mA in Tamper
• Condition and 14 mA in Alarm Condition.
• Contact Data:
• Alarm Relay: Form C, 2.0 Amps at 30 VDC
• Tamper Contact: Form A, 2.0 Amps at 30 VDC
