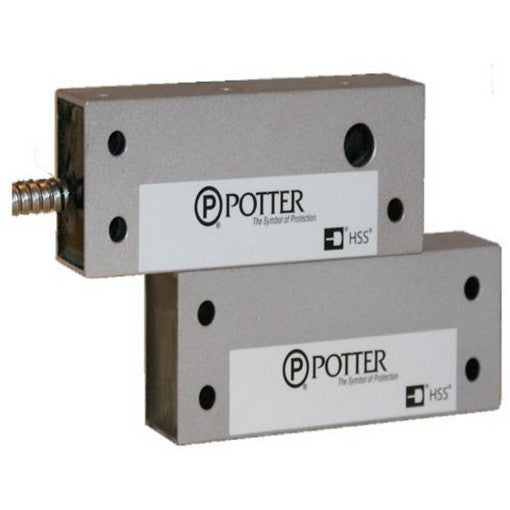

Potter Electric Signal - Usa 2020410 | Contact - P2S-000 Level 2 Contact

Potter Electric Signal - Usa - 2020410 - Additional Information

• Experts agree that the most devastating threats to government and corporate security have come from employees who were deemed trusted insiders. Armed with simple magnets, unscrupulous insiders can disable even triple-balanced BMS magnetic contacts while the system is unarmed, and enter undetected at a later time, leaving no evidence of tamper.
• Single contact
• Listed to UL 634 Level 2 Standards
• Resistant to external and internal magnetic defeat
• Unique cross hole mounting feature eliminates need for L and Z brackets on most installations
• Retrofit for existing BMS devices
• No adjustment required for installation
• Industrys most secure removal tamper sensor/circuit
• May be used as an intrinsically safe simple apparatus
• Resists permanent contact welding (lightning, power surges, stun guns)
• Single and dual alarm contacts available
• Hermetically sealed switch contacts
• Fully epoxy potted assembly
• Indoor or outdoor use
• Aluminum Case - Silver grey anodized
• Wire Lead Type - Solid color coded lead wires
• Single Alarm Contact (P2S) - Closed or open loop
• Dual Alarm Contact (P2D) - Closed loop
• Removal Tamper Circuit - Closed loop
• Max. Current - 0.25 A resistive
• Max. Voltage - 30 VDC
• Max. Power - 0.250 W
• Operating Temperature - -40°F to 176°F (-40°C to 80°C)

Potter Electric Signal - Usa - 2020410 - Product Categories

• Security
• Intrusion Detection
• Contacts

Potter Electric Signal - Usa - 2020410 - Specifications

• Potter Electric Signal - Usa 2020410 Specification Sheet
• Potter Electric Signal - Usa 2020410 Datasheet
