Potter Electric Signal - Usa 3006221 | Arm-44: 8 Relay Module - Module

Potter Electric Signal - Usa - 3006221 - Additional Information

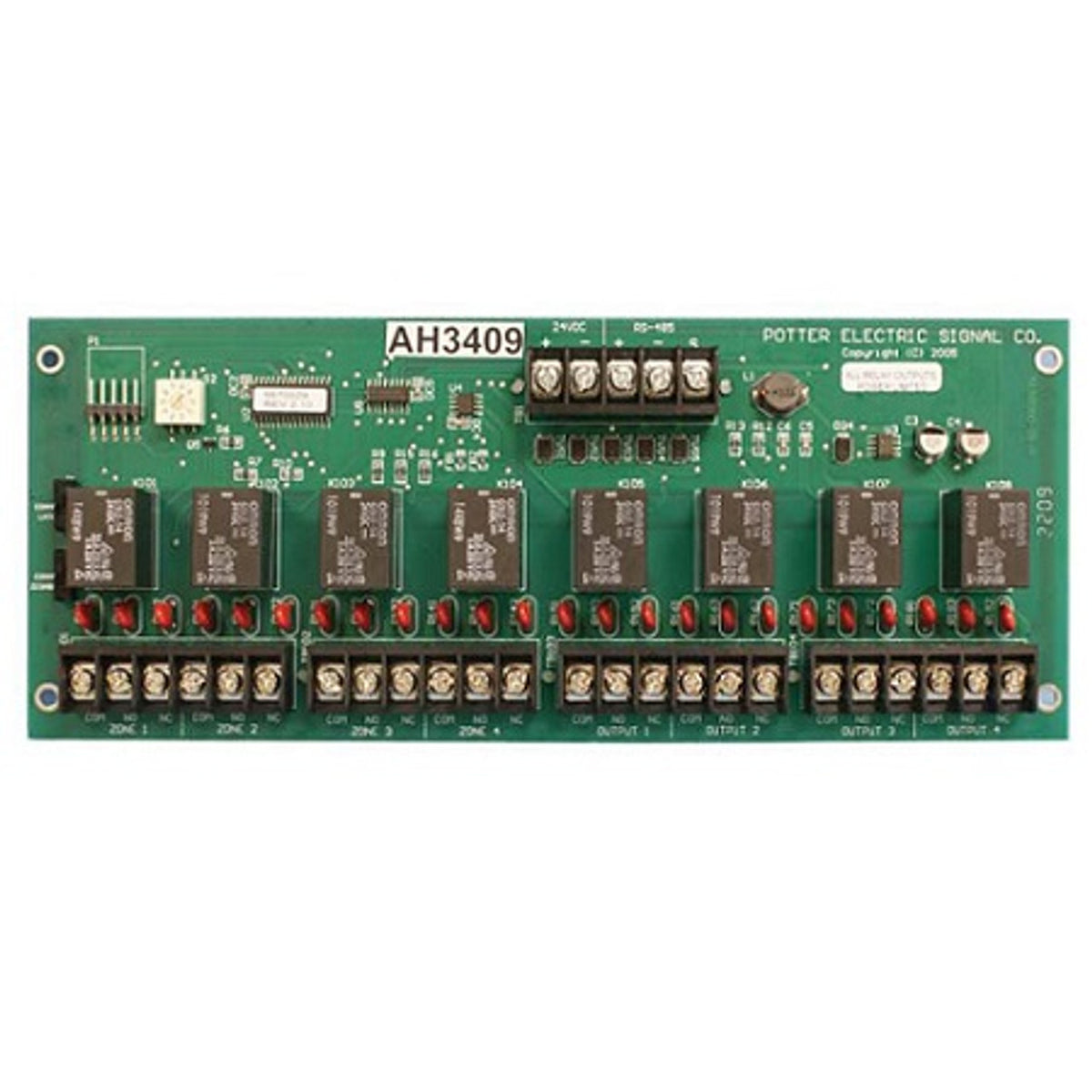

• The ARM-44 is an auxiliary relay module designed to operate with the PFC-4410RC to provide 8 independent form C relay outputs.c The 4 initiating zones and the 4 output circuits each have a dedicated relay. Each relay is rated for 3 amps at 24 volts DC resistive load. The relay module directly mounts to the back of the cabinet and is connected the to the main board. All of the relay terminals are readily marked and accessible for the ease of wiring. There is a disable switch for disabling the relays when the system is being tested or serviced.
• UL Listed in conjuction with PFC-4410RC
• Provides 8 Form C relay outputs
• Zone type operation - Operates for specifi c zone/circuit input signals.
• Mounts in cabinet with terminal accessible for ease of wiring
• Disable switch for maintenance
• Selectable latching or common setting
• Electrical Ratings:
• 9.6mA Standby
• 157.3 mA Max alarm current*
• Contact Rating:
• 3 amps at 24 VDC max.
• resistive load 22-12 AWG
• * Maximum current is all relays operating simultaneously.
