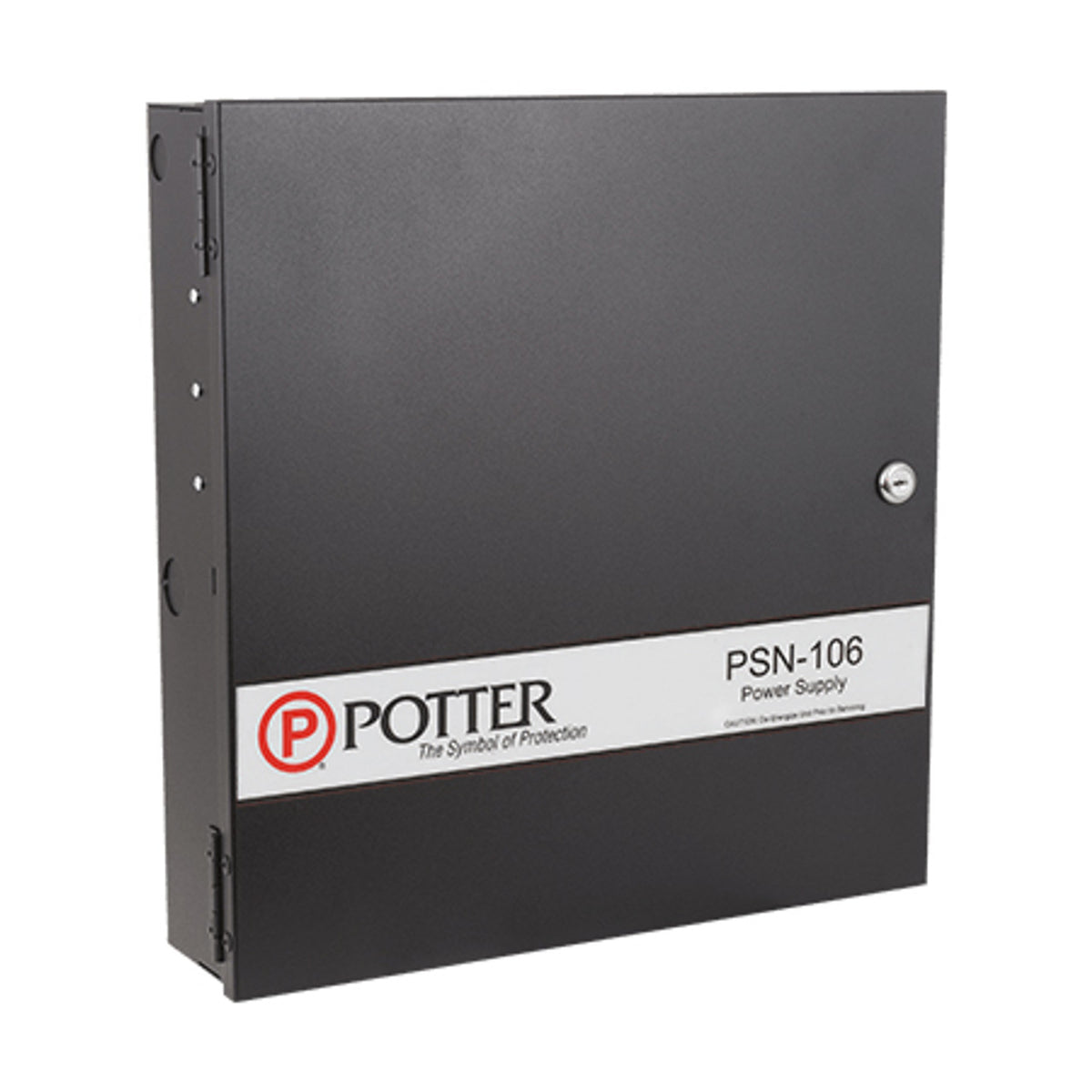

Potter Electric Signal - Usa 3006446 | Psn-106B Power Supply - Power Supply

Potter Electric Signal - Usa - 3006446 - Additional Information

• PSN-64 has 6 amps regulated with 4 Outputs
• PSN-106 has 10 amps regulated with 6 Outputs
• Outputs Rated at 3 amps maximum each
• May be configured as up to three class “A Style "Z" notification circuits
• 3 amp, 24 VDC programmable output power
• Supervised Battery Charger: 27.3 @ 1A (supports 7-55 AH batteries)
• Easy to install cabinet with leveling mounts and key lock
• Wiring knockouts provided on sides and top of cabinet
• The PSN series of notification power supplies offers reliable notification power with unprecedented versatility. The power supplies offer either 6 or 10 amps of continuous power through 4 or 6 outputs respectively. Each output is rated at 3 amps and it may be used continuously without any derating. The power supply operates on either 120 VAC or 220 VAC power input and has a regulated 24 VDC output. In addition, the panel can charge up to 55 AH batteries and leads the industry in housing up to 18 AH batteries. The cabinet is constructed out of 18 gauge cold rolled steel and has a durable red powder coat finish. In addition, a key lock is provided for securing the door. Ample electrical knockouts are provided on the sides and the top, allowing the installer options for running wires and maintaining the correct separations.

Potter Electric Signal - Usa - 3006446 - Product Categories

• Security
• Fire Alarm Systems
• Power Supplies

Potter Electric Signal - Usa - 3006446 - Specifications

• Potter Electric Signal - Usa 3006446 Datasheet
