Potter Electric Signal - Usa 3006462 | Ra-6075R 2 X 16 Lcd Releasing - Module

Potter Electric Signal - Usa - 3006462 - Additional Information

• Standby Current: 20 mA
• Alarm Current: 25 mA
• Operating Temperature: 0°C-49°C (32°F-120°F) 10%-93% @ 30°C (86°F) non-condensing humidity
• Maximum Wire Length: 6500 FT
• Maximum Annunciators: 31
• Size (WxHxD): 8 x 6-1/4 x 1-5/8
• Wire Gauge: 14 AWG-22 AWG

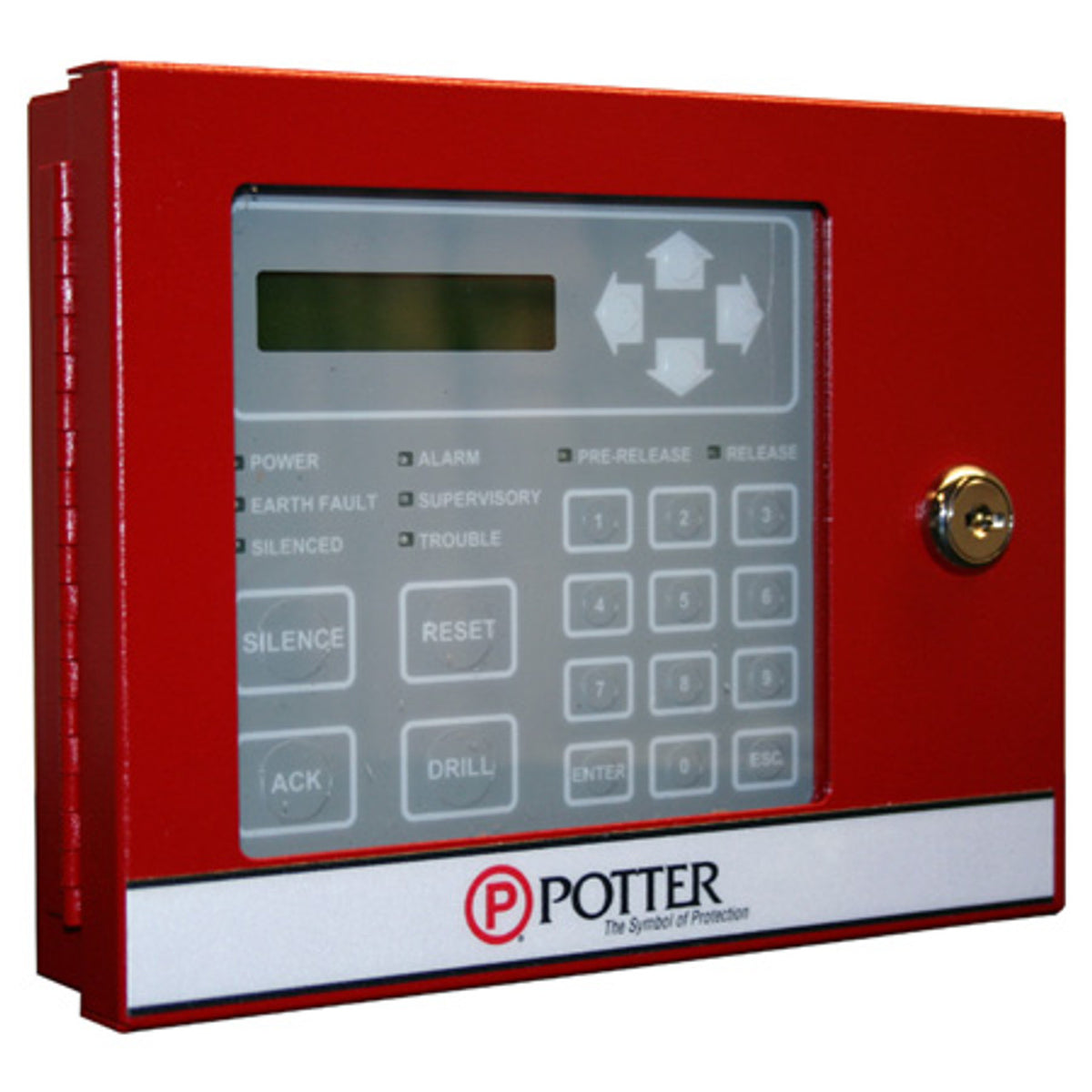

• The RA-6075R is a LCD remote annunciator for the PFC-6075R addressable releasing fire control panel. The RA-6075R communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions. The RA-6075R features a 16x2 LCD display with LEDs for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It also provides Release and Pre-Release LEDs to indicate releasing status. It can be mounted on a single gang electrical box or a two square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.

Potter Electric Signal - Usa - 3006462 - Product Categories

• Security
• Fire Alarm Systems
• Fire Alarm Modules

Potter Electric Signal - Usa - 3006462 - Specifications

• Potter Electric Signal - Usa 3006462 Datasheet
