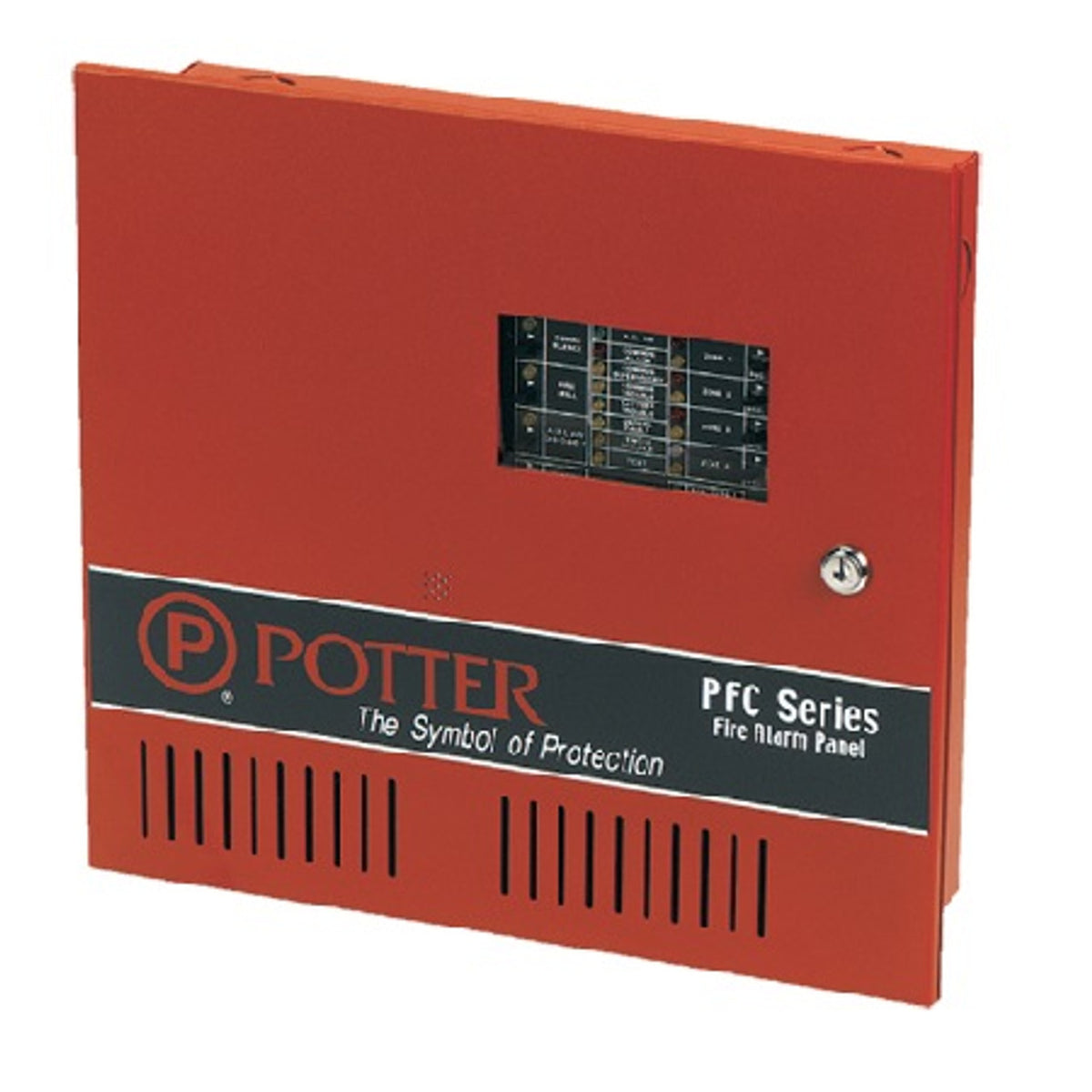

Potter Electric Signal - Usa 3992175 | Pfc-5008D Fire Alarm Control - Control Panel

Potter Electric Signal - Usa - 3992175 - Additional Information

• 8 Class B (Style B) Initiating Circuits which may be configured as 4 Class A (Style D) circuits.
• 4 Class A/B (Style Z/Y) Indicating Circuits with individual trouble indicators (1.7 Amps max. per circuit.)
• Each Indicating Circuit can be configured as Silenceable or Non-Silenceable
• Audibles may be configured as Steady, Temporal Code, California Code or March Time
• Predefined Initiating Circuits can be configured as Waterflow or Latching/Non- Latching Supervisory
• Auxiliary relay contacts for Common Alarm, Common Trouble and Common Supervisory.
• If no Supervisory circuits are enabled, the Supervisory relay becomes a second Alarm relay.
• Zone Disconnect Switches
• Potter's PFC-5008 Fire Alarm Control Panel is a microprocessor based unit designed for small commercial, residential, multi-family, institutional and industrial occupancies. Fully configurable using DIP switches, it enables the user to configure the system to meet their specific requirements.
• Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
• Interface for Remote Trouble Indicator
• Built-in Walk Test operation
• Auto Signal Silence
• Selectable Alarm Verification on Initiating Circuits
• 5 Amp Power Supply
• Output for 4-wire resettable regulated smoke power supply of 24 VDC 100mA maximum.
• Output for PRTI or Remote Annunciators of 24VDC, 300mA max, unfiltered Extensive Transient Protection
• Easy configuration via DIP switches
