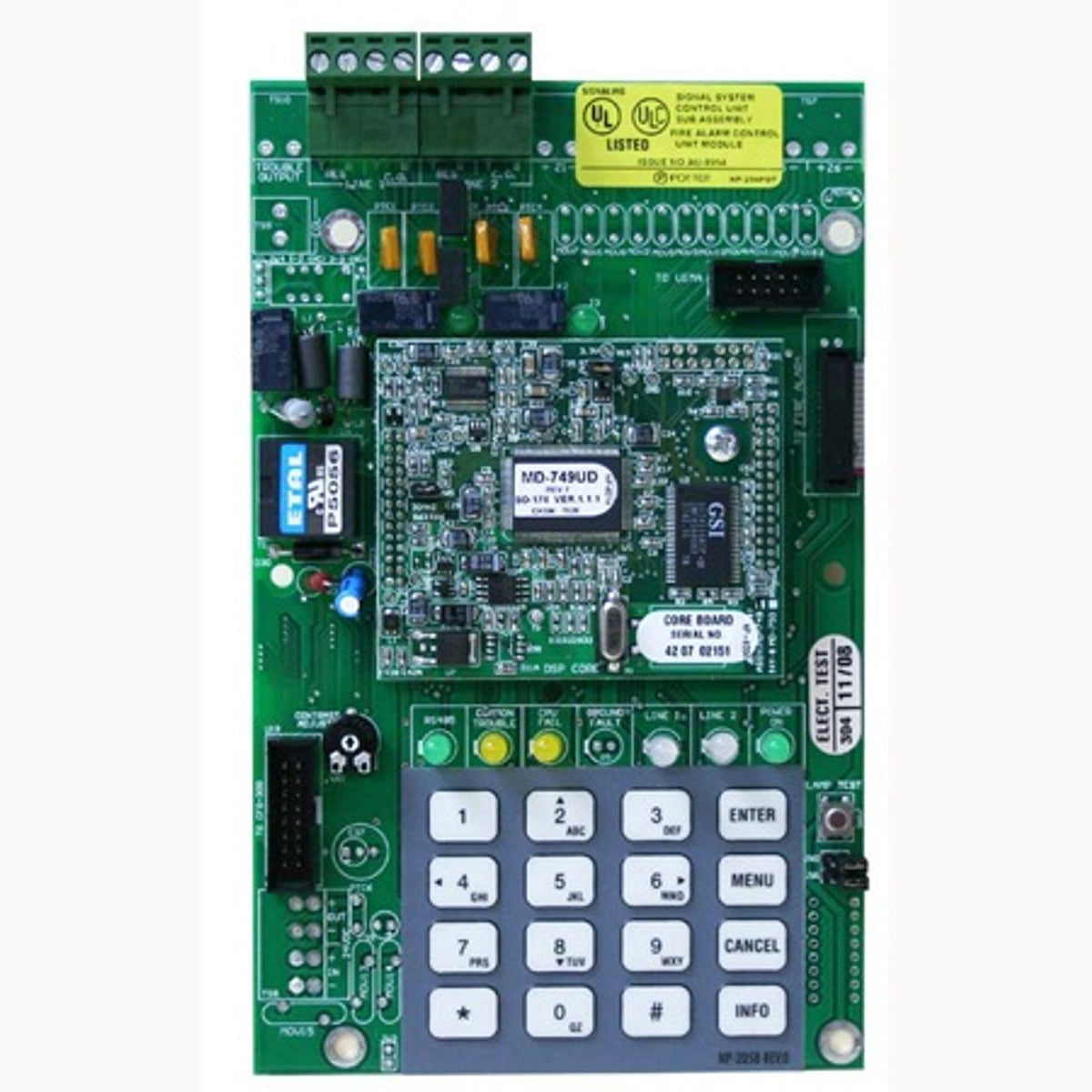

Potter Electric Signal - Usa 3992500 | Module - Udact-9100 Digital Alarm

Potter Electric Signal - Usa - 3992500 - Additional Information

• Communicates with PFC-5000 or PFC-9000 Series fire alarm control panels via an RS-485 data link
• Programmed to use the Ademco Contact ID and SIA-DCS reporting protocols
• Can be configured for DACT or UDACT mode of operation
• DACT mode transmits a common Alarm, Supervisory, Waterflow and Trouble information
• UDACT mode transmits point-specifi c Alarm, Supervisory, Waterflow, and Trouble information
• UDACT-9100 has the ability of disconnecting the incoming and outgoing calls and capturing the line for transmission to the Digital Alarm Communicator Receiver (DACR)
• Onsite or remote programming
• Onsite configurable with the on-board keypad and the CFG-LCD Configuration Tool or using the UIMA Programming Tool and a computer with an available serial or USB port
• Remotely configurable via a Personal Computer with a modem (Confi guration is passcode protected)
• Provides telephone line monitoring and reports status via LED indication on-board
• Provides event logs of 500 entries each to save events from local dialer or remote fire alarm panel
• Logs can be reviewed locally with the CFG-LCD Configuration Tool or remotely via modem
• Continuously supervises the status of each of two connected telephone lines at approximately one minute intervals
• Mounts in a dedicated location in the PFC-5000 or PFC-9000 Series main chassis
• The UDACT-9100 Digital Alarm Communicator Transmitter/Dialer Module allows PFC-5000 or PFC-9000 Series Fire Alarm Control Panels to transmit Alarm, Supervisory and Trouble information on two telephone lines to a monitoring facility.
• The UDACT-9100 is powered by the host fire alarm control panel and communicates with the fire alarm control panel via an RS-485 data link. The Digital Communicator can be programmed for dual line operation and uses the Security Industry Association (SIA) and Ademco Contact ID reporting protocols.
