Potter Electric Signal - Usa 3992664 | Slce-127 Slc Expander - Control Panel

Potter Electric Signal - Usa - 3992664 - Additional Information

• No special wiring
• Class A or B capable
• Mounts with included stacker bracket
• May mount in panel, accessory cabinet, or PSN-1000/E Power Supply
• Alarm Current 400 mA0°C–49°C (32°F–120°F) 10%-93% @30°C(86°F) non-condensing humidity ambient operating temperature
• Maximum 1 SLCE-127 for PFC-6200
• Maximum 7 SLCE-127 for PFC-6800
• Size (W x H x D) is 4" x 6" x 1-5/8"

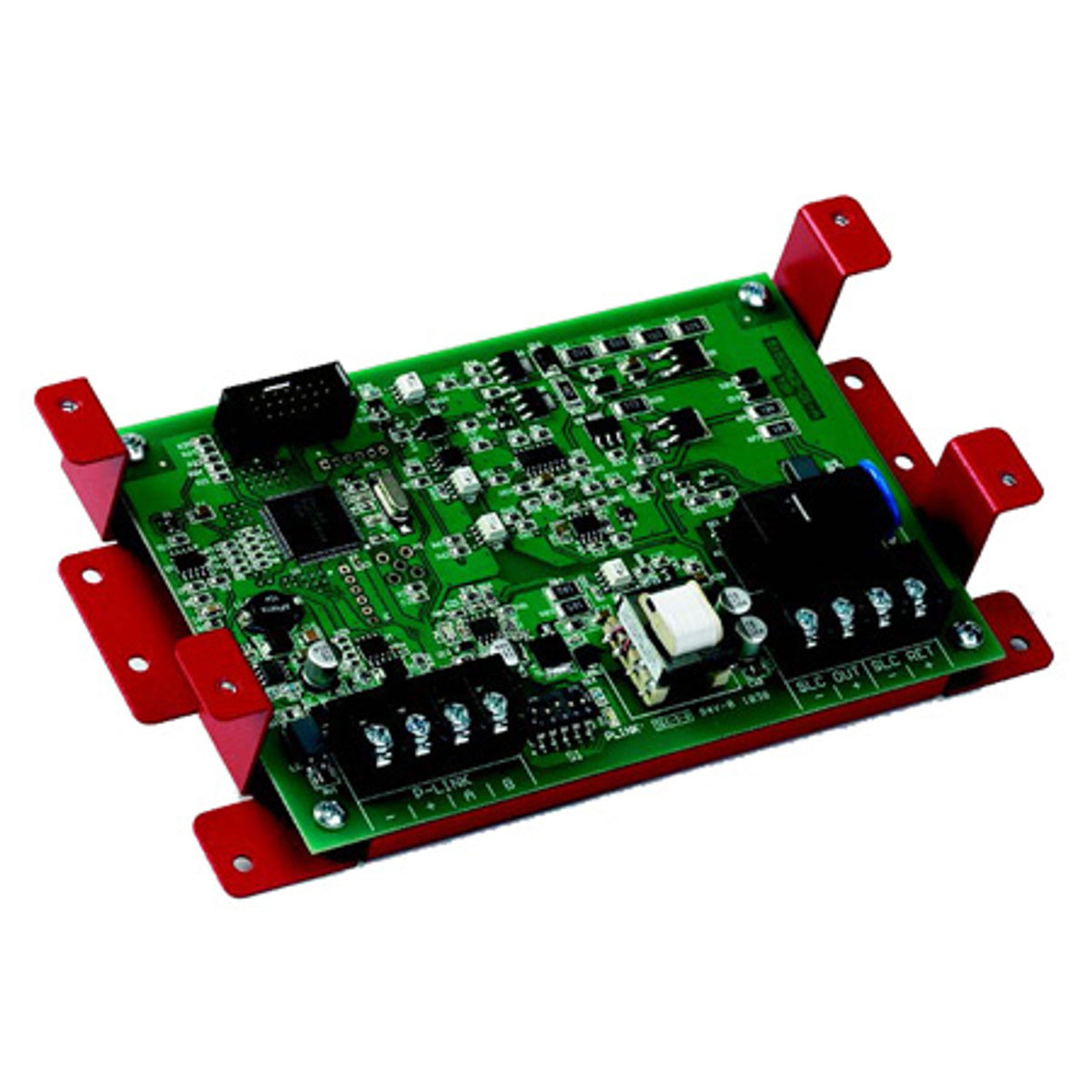

• The Signaling Line Circuit Expander (SLCE-127) allows for an additional loop for the PFC-6200 and up to seven additional loops for PFC-6800 fire alarm control panels. Each loop adds 127 addressable sensors or modules in any combination. The SLCE-127 may be configured for Class A or Class B wiring without the need for additional modules. The SLCE-127 communicates with the control panel via the Potter P-Link communication bus. The loop adder is mounted in either the control panel cabinet, the intelligent power supply/P-Link repeater, the PSN-1000E, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Potter Electric Signal - Usa - 3992664 - Product Categories

• Security
• Fire Alarm Systems
• Fire Alarm Accessories

Potter Electric Signal - Usa - 3992664 - Specifications

• Potter Electric Signal - Usa 3992664 Specification Sheet
• Potter Electric Signal - Usa 3992664 Datasheet
