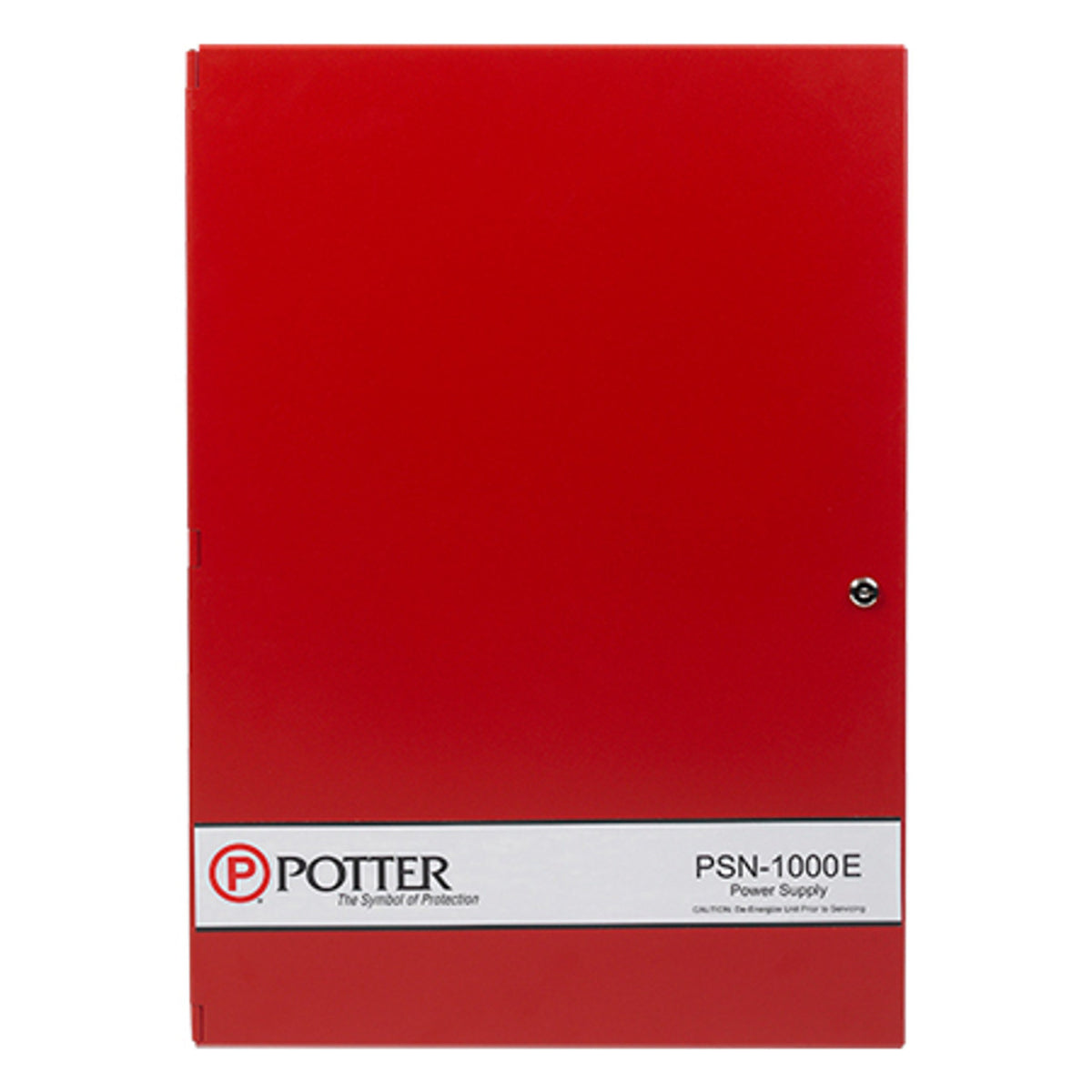

Potter Electric Signal - Usa 3992665 | Psn-1000E Intelligent Power - Power Supply

Potter Electric Signal - Usa - 3992665 - Additional Information

• 10 Amp Power Supply
• 3 Amps, regulated per NAC
• 6 NACs Class B or 3 NACs Class A
• 2 dry contact inputs
• Fully programmable and monitored through control panel
• Isolated P-Link repeater connection, Class A or B
• Up to 31 power supplies per control panel with system wide sync
• Quadrasync feature synchronizes strobes from Potter/AMSECO, Gentex, Cooper-Wheelock and System Sensor.
• The PSN-1000 series is a UL listed intelligent 10 amp notifi cation power supply and P-Link (RS-485) repeater. The power supply connects to the P-Link bus from the control panel and is operated and supervised from the panel. The power supply may be installed 6,500 feet from the control panel. The PSN-1000 then repeats the P-Link communication for another 6,500 feet.
• The power supply has six (6) Class B or three (3) Class A power outputs. Each output is regulated and power limited with a 3 Amp maximumrating. In addition, the PSN-1000 has two (2) programmable dry contact inputs. The dry contact inputs are Class B, supervised inputs.
• The power supply operates on either 120 or 220 VAC power and has a regulated 24 VDC output. In addition, the panel can charge up to 55 AH batteries and will house 18 AH batteries. The cabinet is constructed out of 18 gauge cold rolled steel with a durable red powder coat fi nish. A standard Potter key lock is provided for securing the door. Electrical conduit knockouts are provided on the sides and top providing installers with multiple options for installing conduits and providing proper power separations.
• The PSN-1000 is a self contained intelligent power supply/P-Link repeater complete with cabinet. The PSN-1000E is the intelligent powersupply/P-Link repeater with additional cabinet room for the exclusive Stacker Bracket for SLCE-127 loop expanders. Both cabinets include space for 18 AH batteries.

Potter Electric Signal - Usa - 3992665 - Product Categories

• Security
• Fire Alarm Systems
• Power Supplies

Potter Electric Signal - Usa - 3992665 - Specifications

• Potter Electric Signal - Usa 3992665 Specification Sheet
• Potter Electric Signal - Usa 3992665 Datasheet
