Potter Electric Signal - Usa 3992674 | Fib-1000Rm Fiber Interface - Mount

Potter Electric Signal - Usa - 3992674 - Additional Information

• Allows standard 4-wire P-Link bus to be converted to/from fiber optic cable
• Class B or Class A operation
• Uses 62.5/125 micron multi-mode fiber optic cable; tolerates up to 12 db of signal loss (wave length 820 nm)
• Mounts with included stacker bracket
• Mounts in panel, accessory cabinet or PSN-1000/E Power Supply
• Optional FIB-1000RM 19-inch rack mount available
• Maximum of 31 FIB-1000s per panel
• Provides P-Link wire length of 6,500 feet

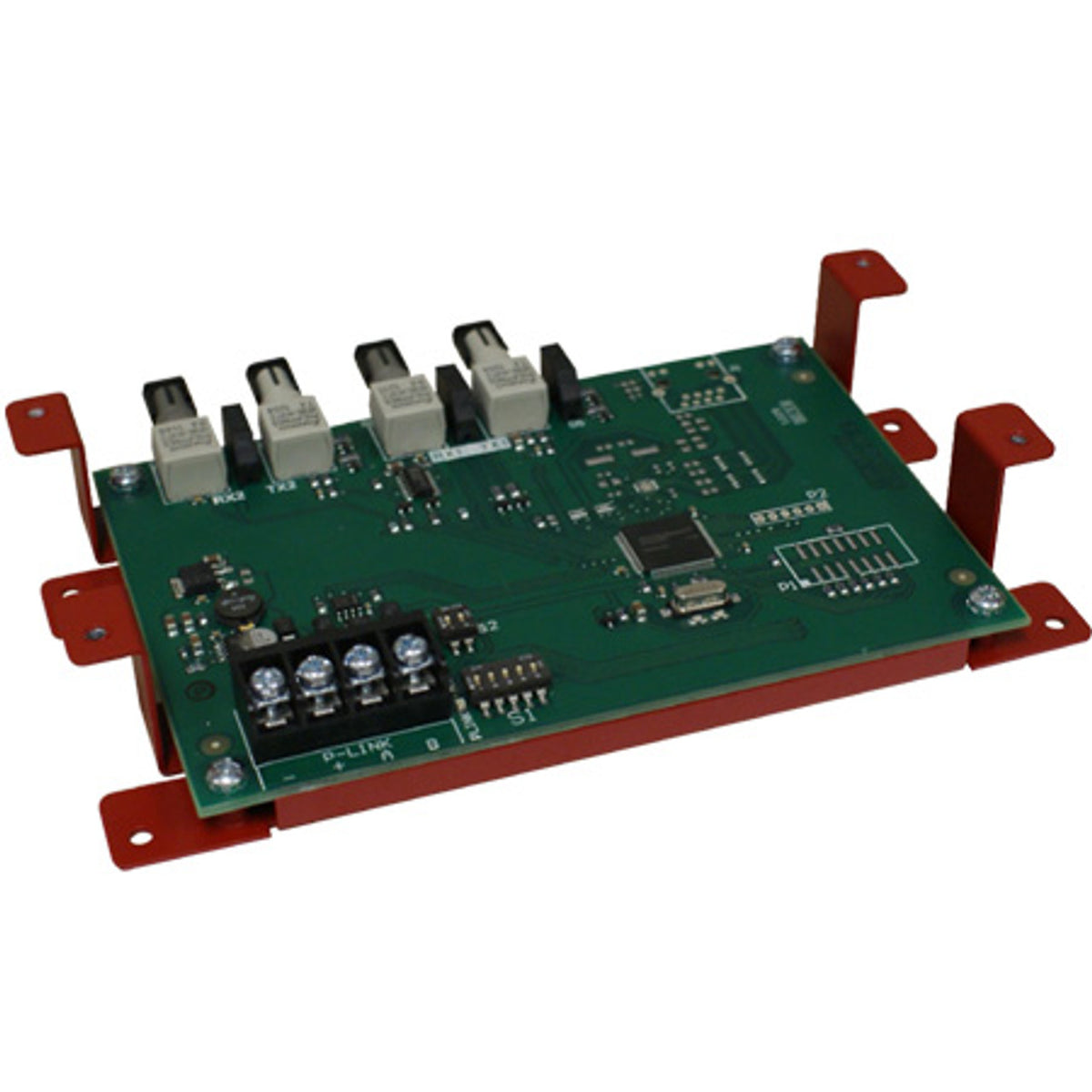

• The FIB-1000RM Fiber Interface Bridge allows the RS-485 P-Link bus to be converted into or from the fiber optic cable. It is fully supervised and is capable of both Class B and Class A operation. The FIB-1000RM may be mounted in either the control panel cabinet, the intelligent power supply/P-Link repeat, the PSN-1000/E, the AE-8 or AE-14 accessory enclosure. The FIB-1000RMRM includes a 19-inch rack-mount kit for installation in an equipment rack. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Potter Electric Signal - Usa - 3992674 - Product Categories

• Security
• Fire Alarm Systems
• Fire Alarm Accessories

Potter Electric Signal - Usa - 3992674 - Specifications

• Potter Electric Signal - Usa 3992674 Datasheet
