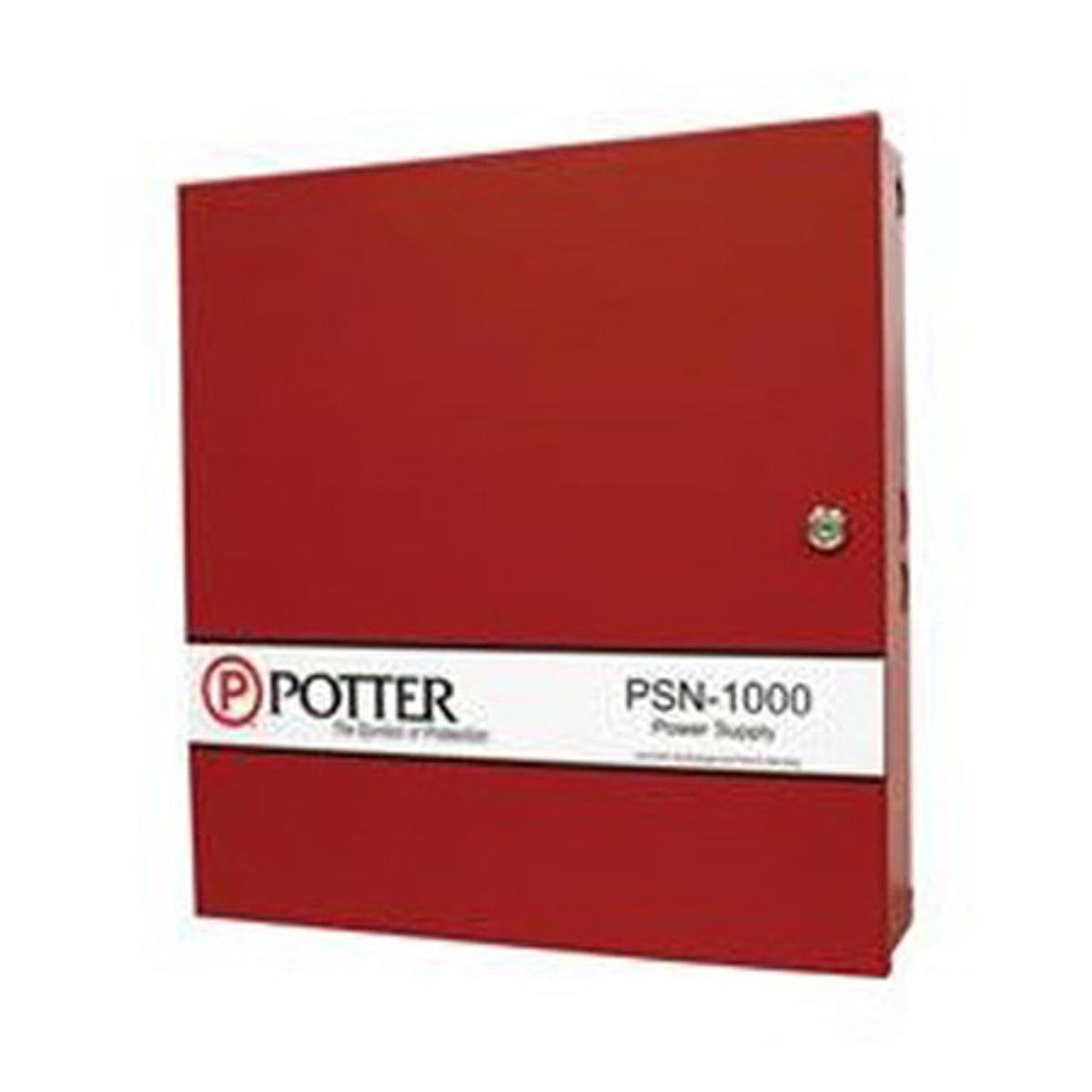

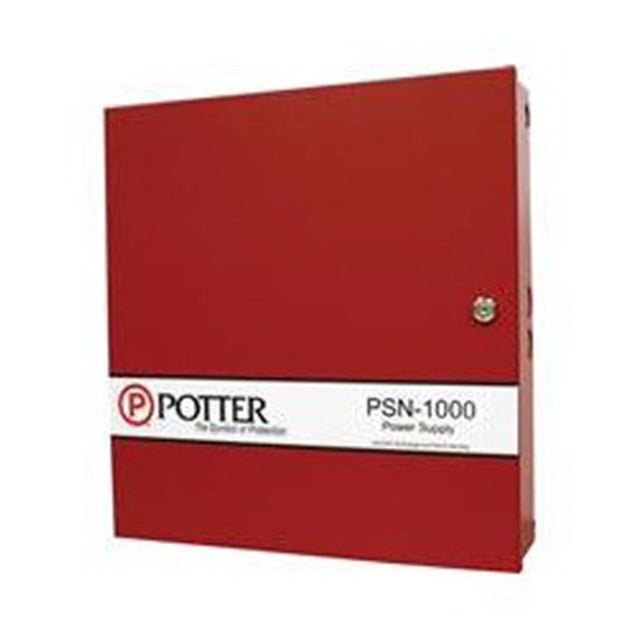

Potter Electric Signal - Usa 3992694 | Psn-1000-Pca: Replacment Board - Power Supply

Potter Electric Signal - Usa - 3992694 - Additional Information

• 10 Amp Power Supply
• 3 Amps, regulated per NAC
• 6 NACs Class B or 3 NACs Class A
• 2 dry contact inputs
• Fully programmable and monitored through control panel
• Isolated P-Link repeater connection, Class A or B
• Up to 31 power supplies per control panel with system wide sync
• Quadrasync feature synchronizes strobes from Potter/AMSECO,
• The PSN-1000 series is a UL listed intelligent 10 amp notification power supply and P-Link (RS-485) repeater. The power supply connects to the P-Link bus from the control panel and is operated and supervised from the panel. The power supply may be installed 6,500 feet from the control panel. The PSN-1000 then repeats the P-Link communication for another 6,500 feet. The power supply has six (6) Class B or three (3) Class A power outputs. Each output is regulated and power limited with a 3 Amp maximum rating. In addition, the PSN-1000 has two (2) programmable dry contact inputs. The dry contact inputs are Class B, supervised inputs.

Potter Electric Signal - Usa - 3992694 - Product Categories

• Security
• Fire Alarm Systems
• Power Supplies

Potter Electric Signal - Usa - 3992694 - Specifications

• Potter Electric Signal - Usa 3992694 Datasheet
