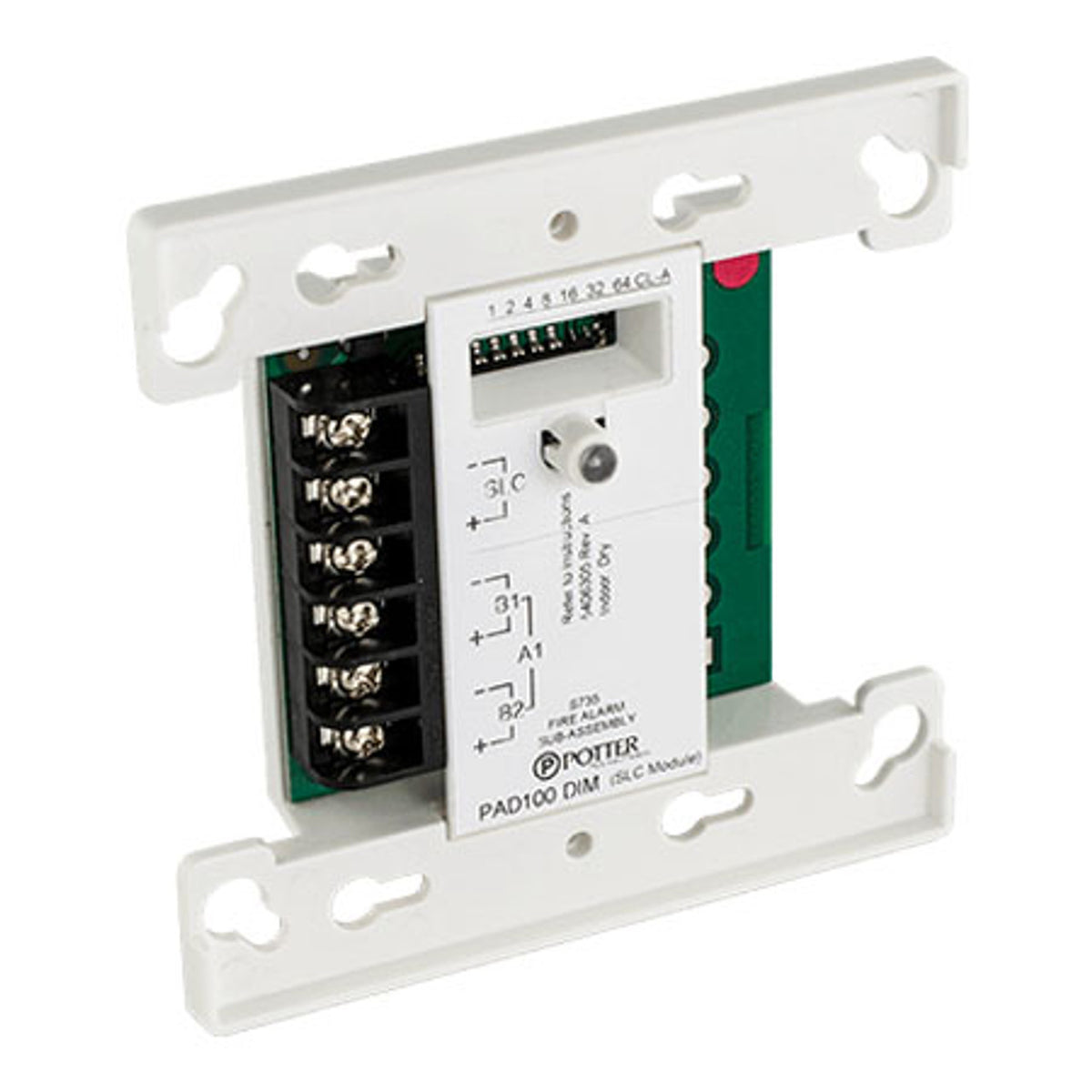

Potter Electric Signal - Usa 3992703 | Module - Pad 100-Dim:

Potter Electric Signal - Usa - 3992703 - Additional Information

• Single module with dual contact monitoring inputs
• Two (2) Class B or one (1) Class A monitoring inputs
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box
• Wiring terminals accessible when mounted in box
• The PAD100-DIM uses one (1) SLC loop address when monitoring two (2) Class B circuits or one (1) Class A circuit. The module mountson either a 4 square or double gang box. The module is capableof monitoring two (2) separate class B circuits making it ideal formonitoring sprinkler waterflow and valve tamper switches when theyare located in the same proximity. The PAD100-DIM includes one redLED to indicate the modules status. In normal condition, the LEDflashes when the device is being polled by the control panel. When aninput is activated, the LED will flash at a fast rate.
• Specifications
• Operating Voltage: 24.0V
• Max SLC Standby Current: 240?A
• Max SLC Alarm Current: 240?A
• Max Wiring Resistance of IDC: 100 ?
• Max Wiring Capacitance of IDC: 1?F
• EOL Resistor: 5.1K ?
• Operating Temperature Range: 32 to 120°F (0 to 49°C)
• Operating Humidity Range: 0 to 93% (non-condensing)
• Max no. of Module Per Loop: 127 units
• Dimensions: 4.17" (106mm)L x 4.17" (106mm)W x 1.14" (29mm)D
• Mounting Options: Standard 4" Square or Double Gang Box
• Shipping Weight: 0.6 lbs
