• Monitored output module that provides an additional supervised output
• Can be used as either a NAC or Releasing Output
• NAC can be wired Class A or Class B
• Monitors presence of 24 VDC Aux Power
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box

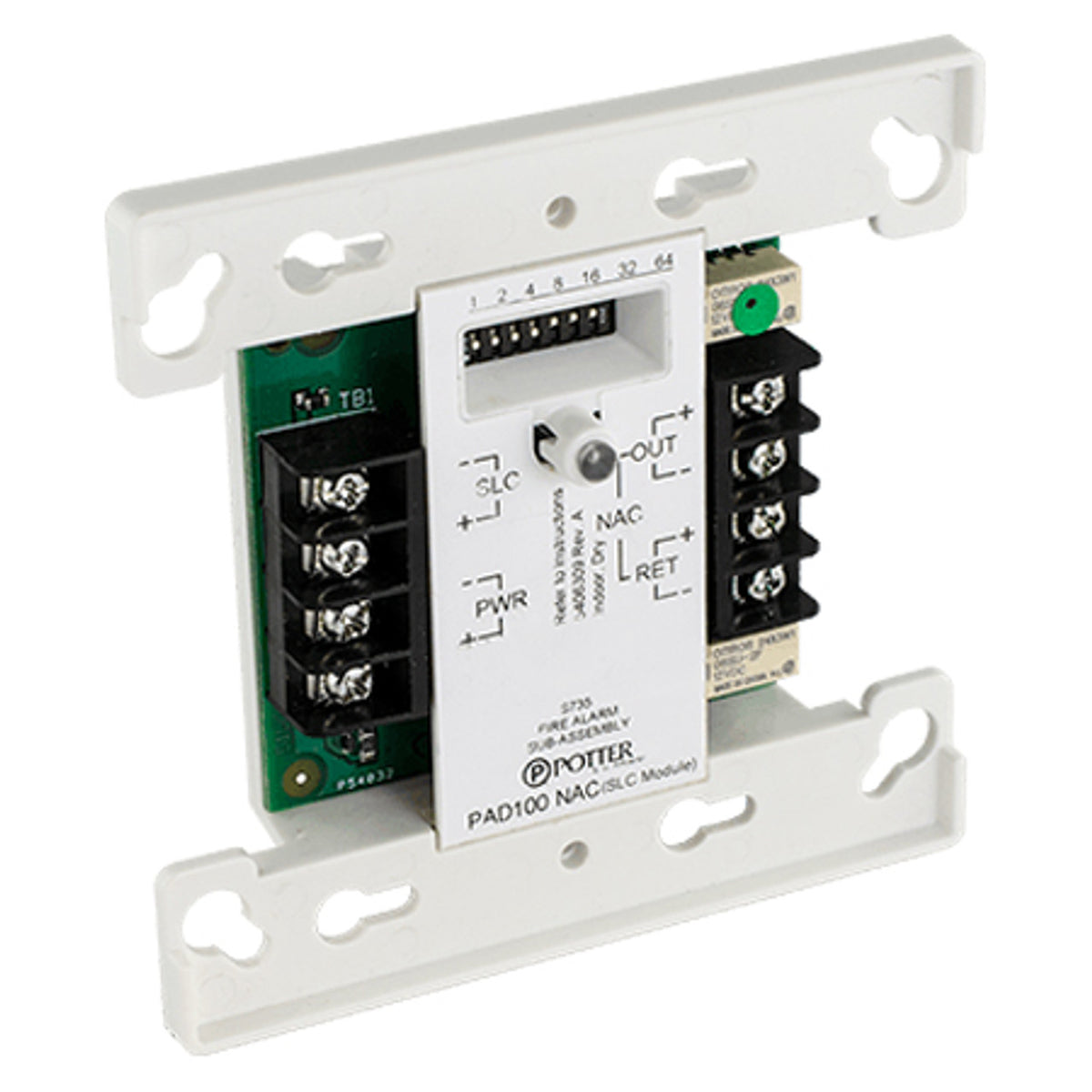

• The PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B or Class A Notification Appliance or one (1)Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection. The PAD100-NAC includes one red LED to indicate the modules status. In normal condition, the LED flashes when the device is being polled by the control panel.
• Specifications
• Operating Voltage: 24.0V
• Max SLC Standby Current: 200?A
• Max SLC Alarm Current: 200?A
• Aux Power Required: 16-33 VDC
• Output Ratings: 24 VDC, 2A
• EOL Resistor: 5.1K ?
• EOL Resistor Diode: Stock #3005012 Releasing Applications (Not Included)
• Operating Temperature Range: 32 to 120ºF (0 to 49ºC)
• Operating Humidity Range: 0 to 93% (non-condensing)
• Max no. of Module Per Loop: 127 units
• Dimensions: 4.17" (106mm)L × 4.17"(106mm)W × 1.14" (29mm)D
• Mounting Options: Standard 4" Square or Double Gang Box
• Shipping Weight: 0.6 lbs
