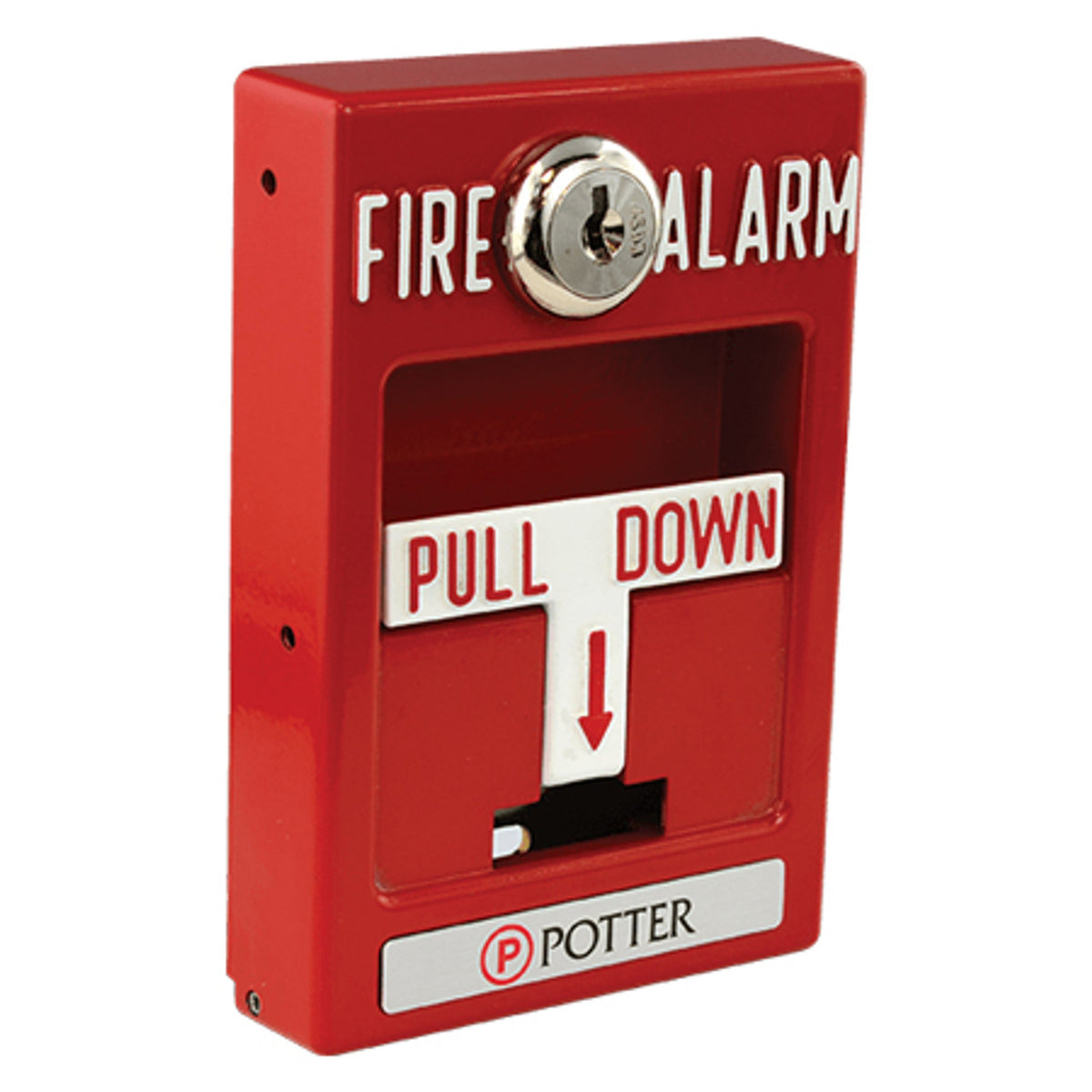

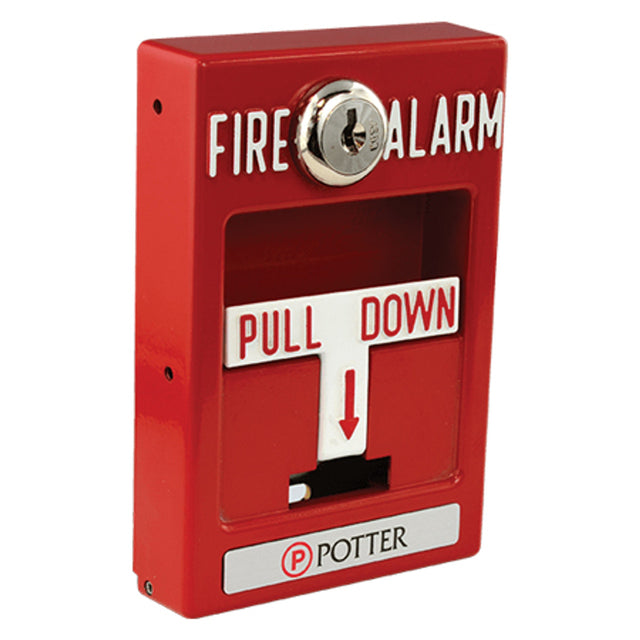

Potter Electric Signal - Usa 3992721 | Pull Station - Pad 100-Pssa: Addressable

Potter Electric Signal - Usa - 3992721 - Additional Information

• Single or Dual Action versions
• Durable die-cast construction
• Reset key matches the fire alarm control panels
• Compatible with IPA Series panels
• SLC Class A, Class X & Class B
• Product includes a 5 year warranty
• The PAD100-PSSA (Single Action) is activated by simply pulling the white "T" bar handle down. The PAD100-PSDA (Dual Action)is activated by lifting the front cover and then pulling the white "T" bar handle down. Once activated, the "T" bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the "T" bar back into the normal position and re-secure the front cover.
• Specifications
• Operating Voltage: 24.0 VDC
• Max SLC Standby Current: 200uA
• Max SLC Alarm Current: 200uA
• Environmental Limitations: 32°F - 120°F (0° - 49°C)Indoor Only
• Dimensions: 4.75" H x 3.25" W x 1.75" D
• Relative Humidity Range: 0 - 93% (non-condensing)
• Mounting Options: Single gang box or Potter P32-BB/DBB
• Shipping Weight: APS-SA - 1.22 lbs.
