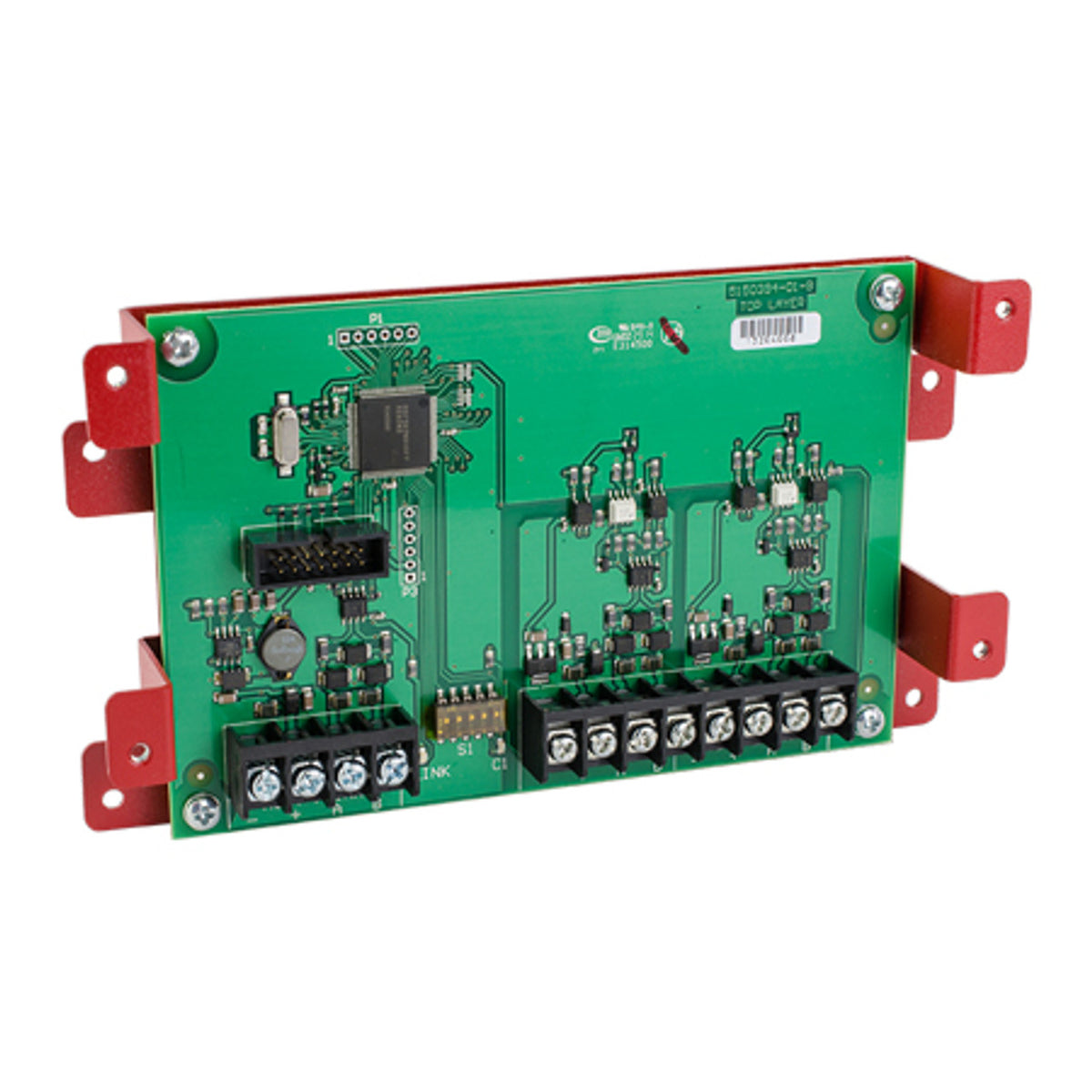

Potter Electric Signal - Usa 3992723 | Mc-1000: Multi-Connect Only - Control Panel

Potter Electric Signal - Usa - 3992723 - Additional Information

• Allows up to 63 IPA Series panels to share a single reporting technology
• No special wiring for P-Link connection
• Class A or B capable
• Mounts with included stacker bracket
• May mount in panel, accessory cabinet, or PSN-1000/E Power Supply
• Product includes a 5 year warranty
• The Multi-Connect Expander (MC-1000) allows up to sixty-three (63) IPA series fire alarm control panels to share a single reporting technology. Each MC-1000 supports communication between the host reporting panel and two client panels. The MC-1000 communicates with the host and client control panels via the Potter P-Link communication bus. The MC-1000 can be mounted in either the control panel cabinet,the intelligent power supply/P-Link repeater, the PSN-1000E, AE-2,AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
• Specifications
• Standby Current: 10mA
• Alarm Current: 10mA
• Operating Temperature: 0°C-49°C (32°F-120°F) 10%-93%
• Operating Humidity Range: 10% - 93% (non-condensing)
• Max no. of MC-1000 Expanders: 31
• Dimensions: (W x H x D) 4" x 6" x 1-5/8"

Potter Electric Signal - Usa - 3992723 - Product Categories

• Security
• Fire Alarm Systems
• Control Panels

Potter Electric Signal - Usa - 3992723 - Specifications

• Potter Electric Signal - Usa 3992723 Datasheet
