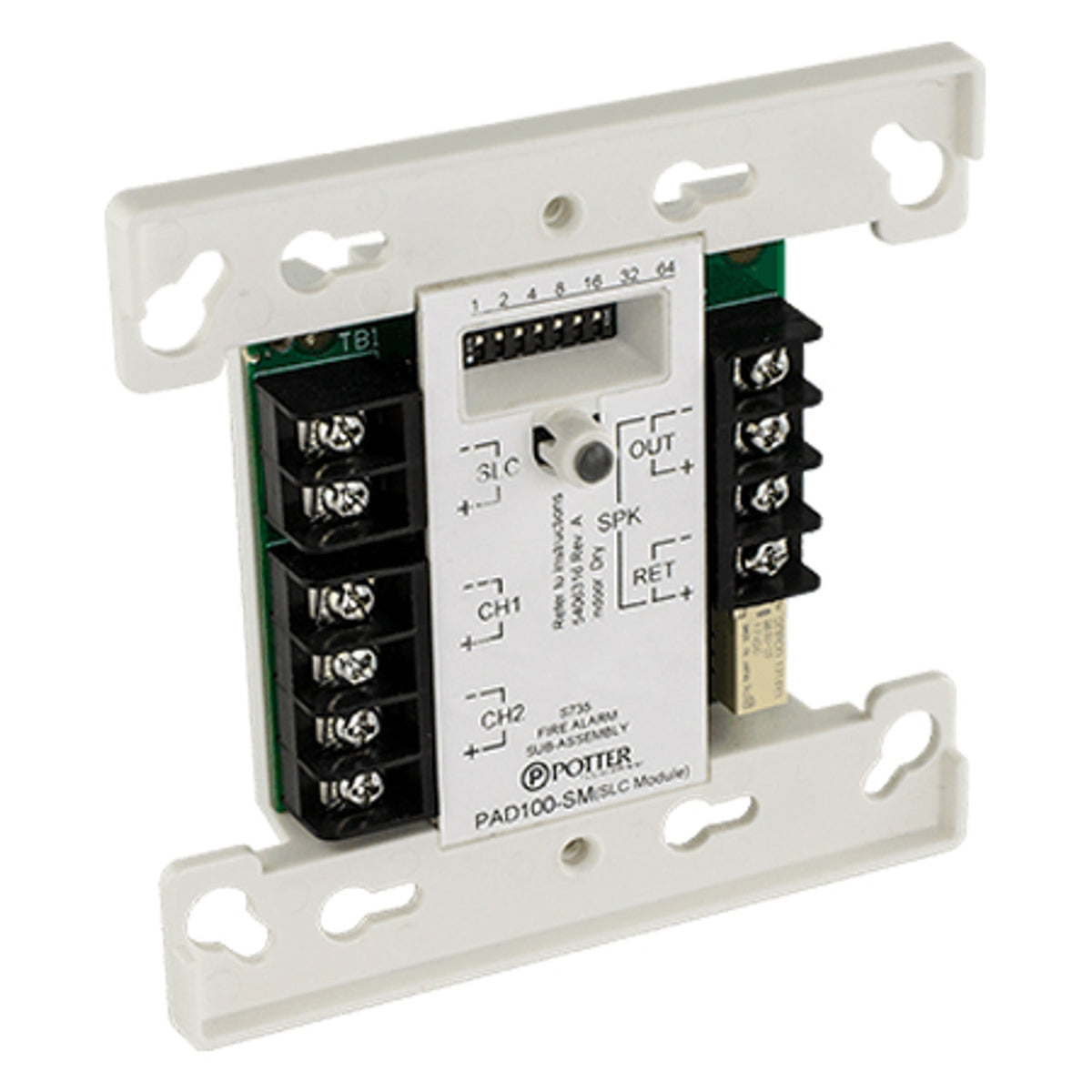

Potter Electric Signal - Usa 3992724 | Pad 100-Sm: Speaker Module - Speaker

Potter Electric Signal - Usa - 3992724 - Additional Information

• Single module with two (2) channel audio inputs
• One (1) Class B or Class A audio output channel
• SLC Class A, Class X & Class B
• Mounts in a standard 4" or double gang box
• Wiring terminals accessible when mounted in box
• All wiring terminals accept 22 to 12 AWG
• The PAD100-SM uses one (1) SLC loop address. The module mounts on either a 4" square or double gang box. The module is capable of switching one of the two audio input channels to its audio output channel. The PAD100-SM includes one red LED to indicate the modules status. In normal condition, the LED flashes when the device is being polled by the control panel.
• Specifications
• Operating Voltage: 24.0V
• Max SLC Standby Current: 240?A
• Max SLC Alarm Current: 240?A
• Max Output Rating: 2A @30VDC, 0.5A @125VAC, 60 WATTS
• EOL Resistor: 5.1K ?
• Operating Temperature Range: 32 to 120°F (0 to 49°C)
• Operating Humidity Range: 0 to 93% (non-condensing)
• Max no. of Module Per Loop: 127 units
• Dimensions: 4.17" (106mm)L × 4.17"(106mm)W × 1.14" (29mm)D
• Mounting Options: Standard 4" Square or Double Gang Box
• Shipping Weight: 0.6 lbs
