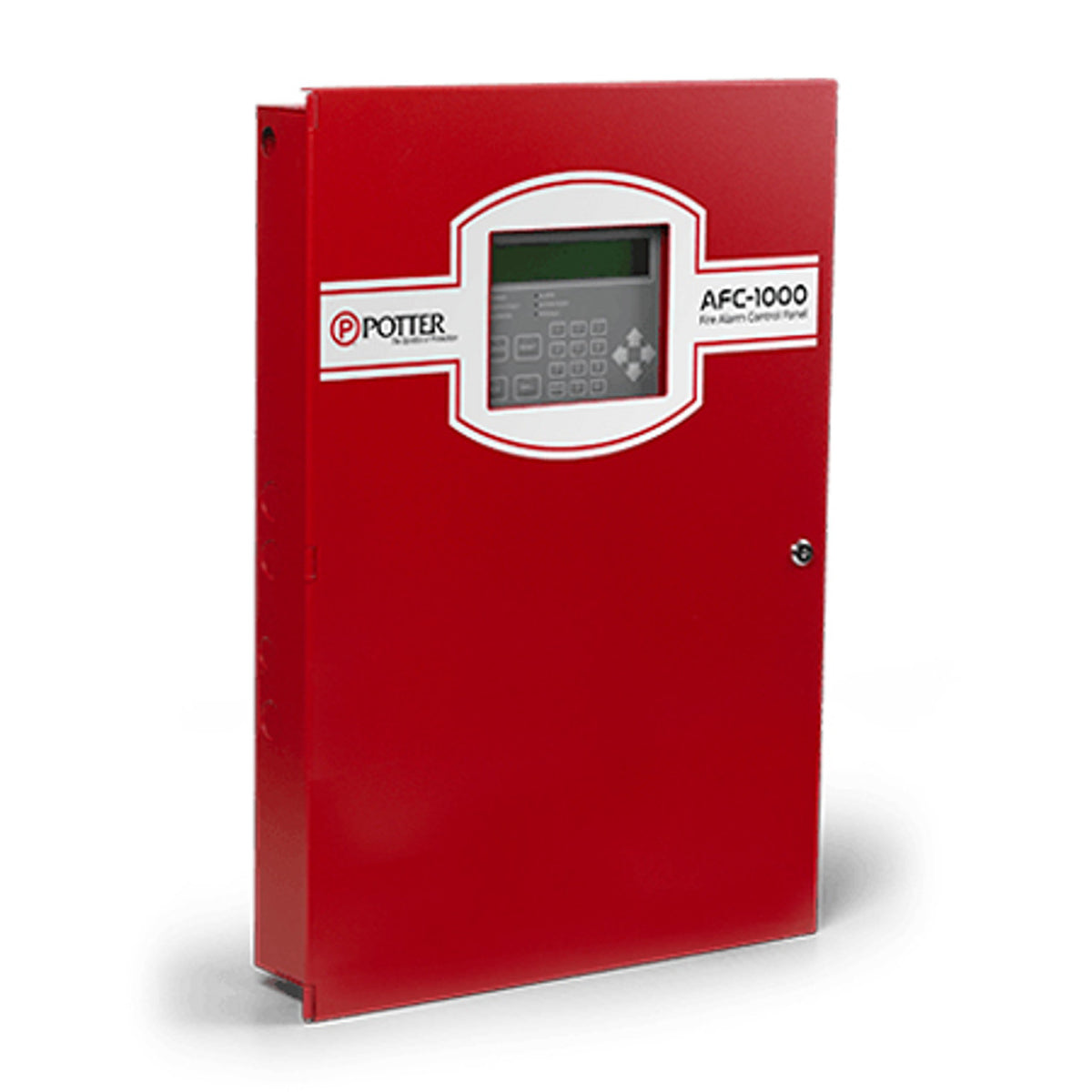

Potter Electric Signal - Usa 3992754 | Afc-1000: - Module

Potter Electric Signal - Usa - 3992754 - Additional Information

• 1,270 addresses available on this analog addressable system
• Additional system capacity achieved via multi-point SLC modules
• 1500 software zones
• NFPA 72 Compliant Smoke Sensitivity Test Built-In
• System Operates as Class A or Class B for SLC, P-Link and NACs
• 10 Amp Power Supply, Expandable to 315 amps
• The AFC-1000 is an expandable analog/addressable releasing fire alarm system with a total system capacity of 1270 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. The system is expandable with a total of nine additional addressable Signaling Line Circuits (SLC) each with a maximum of 127 devices. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
• Specifications
• Dimensions: 18 15/16"W x 27 5/16"H x 4 7/16"D
• AC Mains
• 5.0 Amps @ 120 VAC 50/60 HZ
• 3.0 Amps @ 240 VAC 50/60 HZ
• Enclosure: 16 gauge cold rolled steel with removable locked door with Lexan viewing window
• Battery
• Standby Current-130 mA
• Alarm Current-200 mA
• 10 Amps power for NACs, I/O, and P-Link
• 3 Amps per NAC, regulated
• 1 Amp per I/O circuit, regulated
• Battery Charger range 8-55 Ah
• Battery Charger voltage 27.3 VDC
• P-Link maximum current of 1 Amp
• Temperature and Humidity Range: 32° to 120° (0°C to 49°C) with a maximum humidity of 93% non-condensing.
