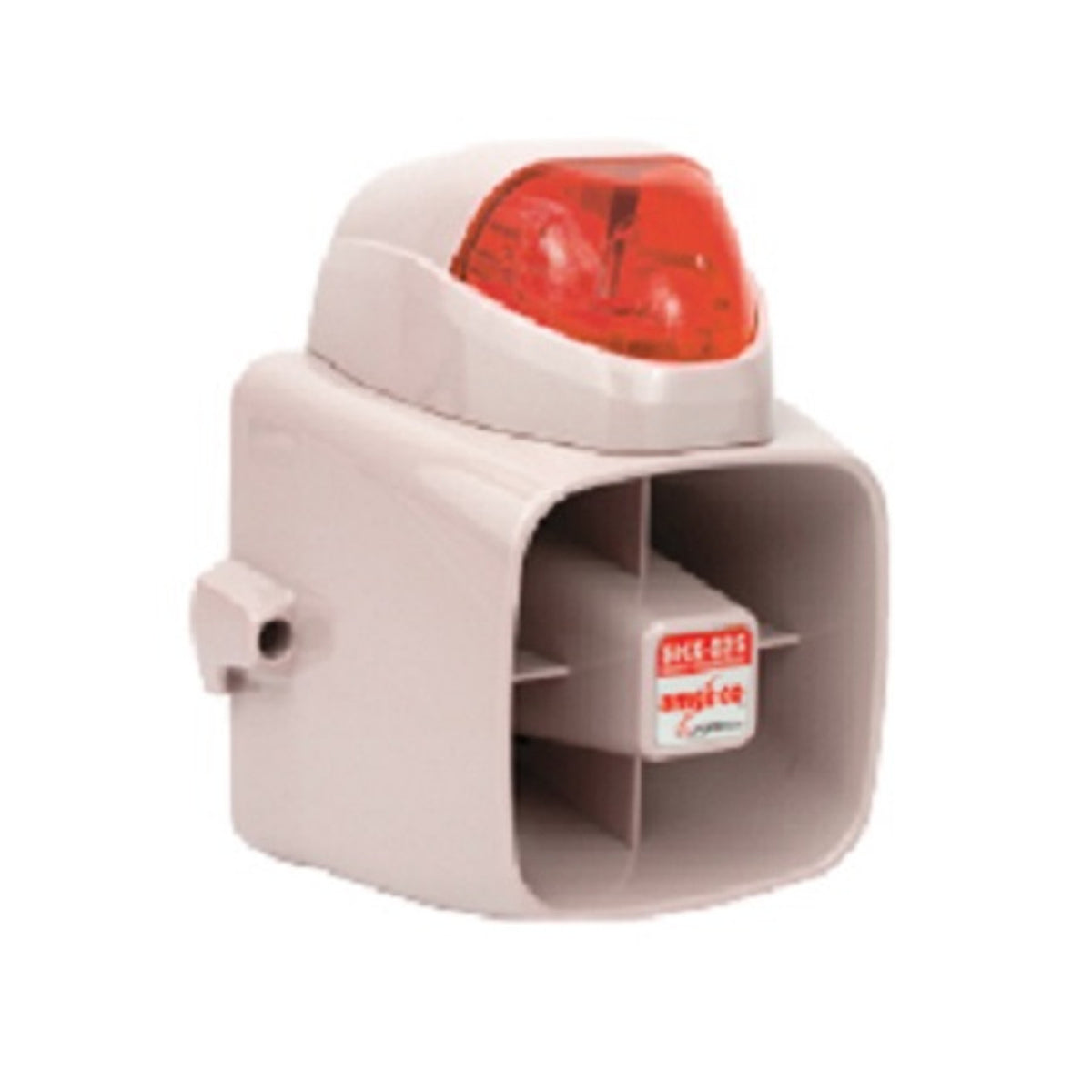

Potter Electric Signal - Usa 4210028 | Shx-52Sr; 15W Speaker With - Strobe

Potter Electric Signal - Usa - 4210028 - Additional Information

• The SHX-52 is a patented indoor/outdoor, self-contained, 8 ohm, 15 watt speaker. The full featured speaker consists of a light weight, strong polycarbonate housing and dual-action plunger switch for tamper supervision for a normally closed loop. The speaker does not require additional modules, metal boxes, tamper switches, special tools, or training to install and operate. The SHX-52 series comes completely assembled and ready for installation. It is ideally suited for noisy, heavy, machinery areas, warehouses, loading docks, print shops, and busy production floors, or for indoor/outdoor applications where high quality and high output warning is required.
• The SHX-52S Speaker Strobe is also available. It includes all of the great SHX-52 features with the addition of a colored strobe. The strobe uses a colored mirror and lens to ensure that the color can be easily distinguished and is available in amber, blue, clear, or red.
• Model Number - SHX-52SR
• Power Supply - 15 watts
• Tamper Contact Capacity - 0.3A @12V DC
• Strobe Specifications
• Lens Color - Red
• Rated Voltage - 12V DC
• Rated Current - 180 mA
• Flash Rate - 60-100 times/min
• Speaker Specifications
• Sound Output - 97dBA
• Independence - 8 Ohms
• Frequency Range - 500-5000Hz
• Operating Temperature Range - -4°F - 140°F, -20°C - 60°C

Potter Electric Signal - Usa - 4210028 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

Potter Electric Signal - Usa - 4210028 - Specifications

• Potter Electric Signal - Usa 4210028 Datasheet
