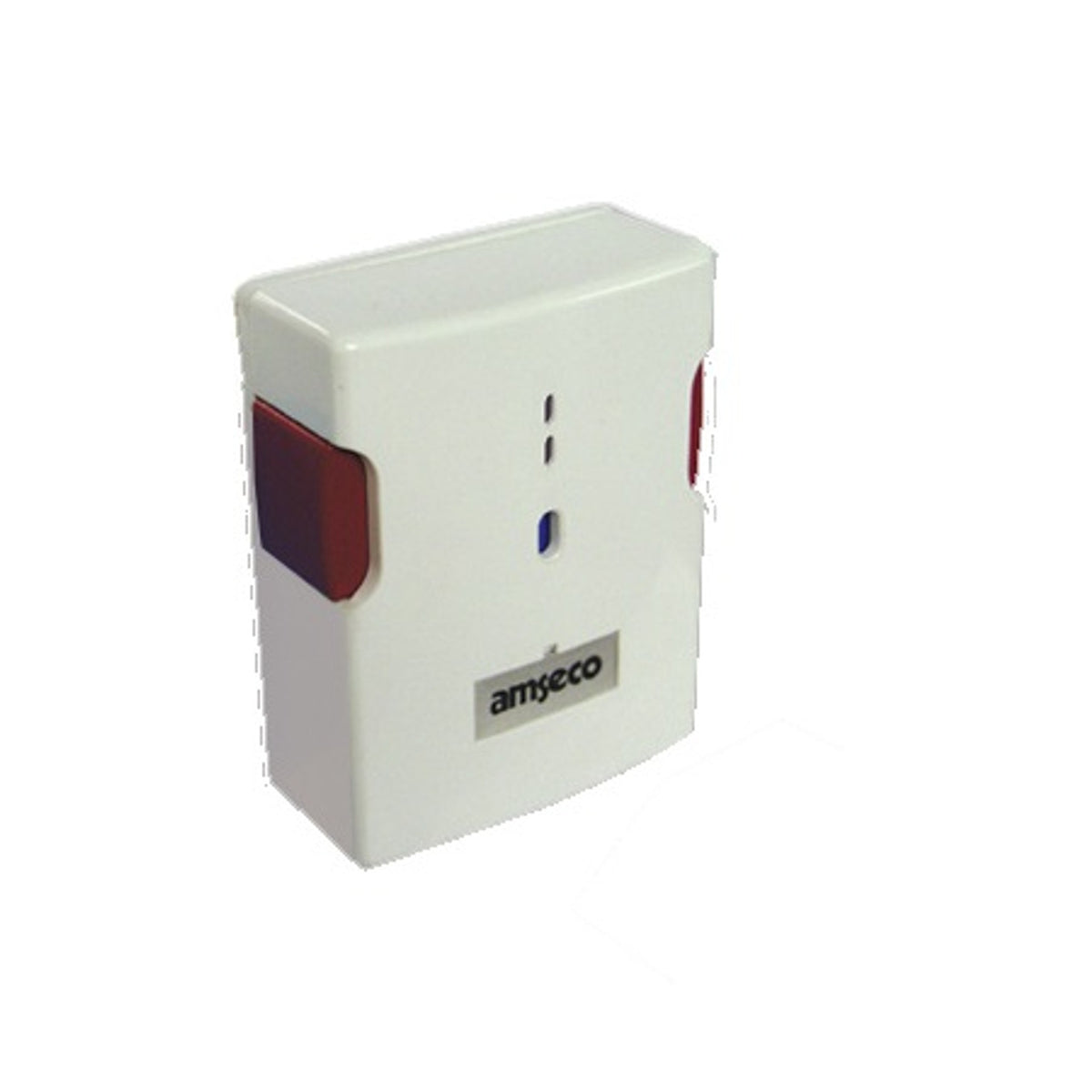

Potter Electric Signal - Usa 4370037 | Dual-Button Momentary Hold-Up - Switch-Door

Potter Electric Signal - Usa - 4370037 - Additional Information

• Dual button activation to eliminate accidental triggering
• SPDT transfer contact for supervised loop
• Terminal strip with three wire terminals
• Tamper protected switch mechanism using UL listed microswitch
• Concealed mounting screw
• Status window indicator
• White plastic case housing
• HUSD-15BM momentary button, auto-reset
• The HUSD-15B Series is a Form C (SPDT), dual button hold-up switch that is designed to generate an alarm condition only when both buttons are pressed simultaneously, thus preventing accidental triggering.
• The housing of this series is specially designed with a status window, red (alarm) and blue (armed), to verify the switch condition. The housing mounting screw is concealed to provide additional tampering protection. The built-in UL approved microswitch design generates an alarm condition when the cover is removed or damaged. The terminal strip consists of three wire ports that provide a firm and secure wiring installation.
• The HUSD-15BL is designed for latching operation when triggered. The HUSD-15BM is designed for momentary operation.
• Operating Temperature Range - 32™F - 120™F (0™C - 49™C)
• Operating Method - Dual button
• Overall Force - 10.5 - 14 ounce
• Overall Stroke - 3mm
• Contact Rating:
• 125V DC - 0.4A
• 30V DC - 5A
• 125V AC - 5A
• Contact Type - SPDT N.O./N.C.

Potter Electric Signal - Usa - 4370037 - Product Categories

• Security
• Electrified Door Hardware
• Electrified Exit Devices

Potter Electric Signal - Usa - 4370037 - Specifications

• Potter Electric Signal - Usa 4370037 Datasheet
