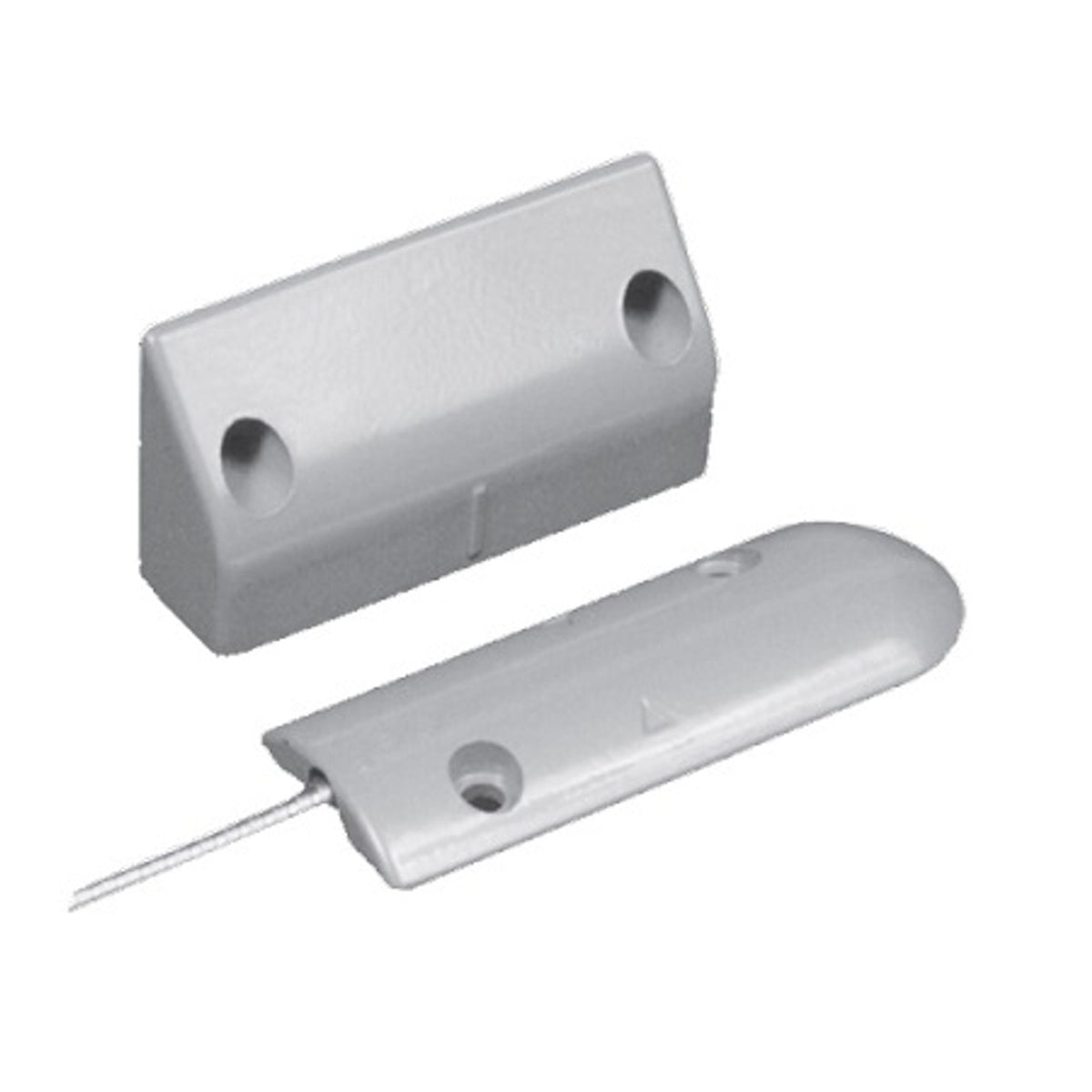

Potter Electric Signal - Usa 4410003 | Odc-59A-W/Lbk Overhead Door - Contact

Potter Electric Signal - Usa - 4410003 - Additional Information

• UL and ULC listed
• 2" operating gap
• HG - 7" Horizontal gap
• 24" stainless steel armored cable
• Adjustable, aluminum L bracket
• Hermetically sealed reed switch
• The ODC-59 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24 stainless steel armored cable. The ODC-59 Series magnet is mounted on an adjustable L shaped bracket designed for greater flexibility, universal mounting, greater pulling power, and to provide a professional installation appearance.
• UL and ULC listed
• 2 operating gap
• HG - 7 Horizontal gap
• 24 stainless steel armored cable
• Adjustable, aluminum L bracket
• Hermetically sealed reed switch
• Temperature Range - 32°F - 120°F (0°C - 49°C)
• Operating Gap - 2
• Breakdown Voltage - 250VDC
• Max. Switching Current - .5 Amp
• Max. Carry Current - 2 Amp
• Contact Type - Form A N.O.
• Contact Rating - 10VA
• Contact - 22AWG 24 Leads

Potter Electric Signal - Usa - 4410003 - Product Categories

• Security
• Intrusion Detection
• Contacts

Potter Electric Signal - Usa - 4410003 - Specifications

• Potter Electric Signal - Usa 4410003 Specification Sheet
• Potter Electric Signal - Usa 4410003 Datasheet
