Potter Electric Signal - Usa 4410006 | Odc-59B; Overhead Door Contact - Contact

Potter Electric Signal - Usa - 4410006 - Additional Information

• UL and ULC listed
• 2 operating gap
• HG - 7 Horizontal gap
• 24 stainless steel armored cable
• Adjustable, aluminum L bracket
• Hermetically sealed reed switch

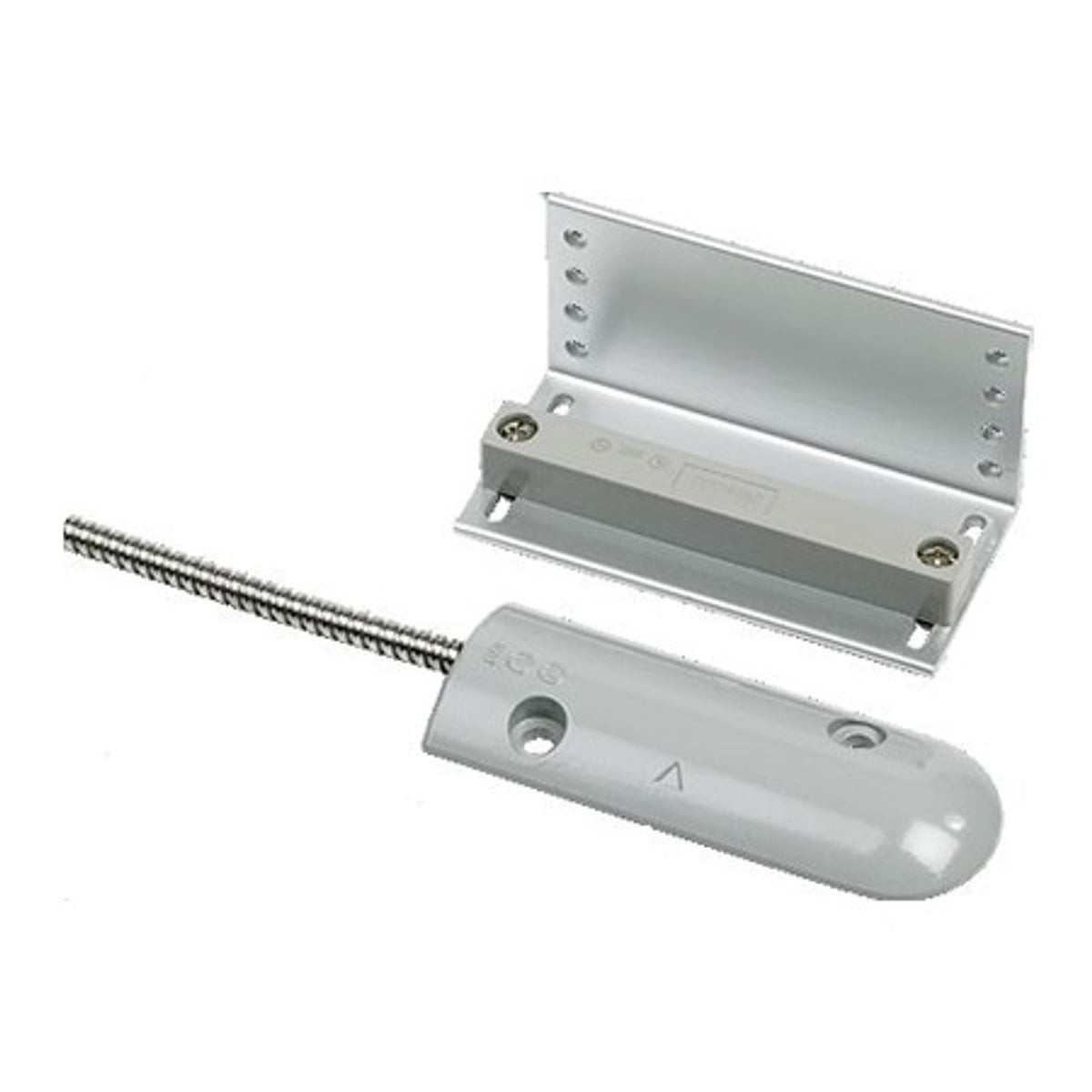

• The ODC-59 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24 stainless steel armored cable. The ODC-59 Series magnet is mounted on an adjustable L shaped bracket designed for greater flexibility, universal mounting, greater pulling power, and to provide a professional installation appearance.
• Temperature Range - 32°F - 120°F (0°C - 49°C)
• Operating Gap - 2
• Breakdown Voltage - 150VDC
• Max. Switching Current - .2 Amp
• Max. Carry Current - .5 Amp
• Contact Type - Form C N.O./N.C.
• Contact Rating - 3VA
• Contact - 22AWG 24 Leads

Potter Electric Signal - Usa - 4410006 - Product Categories

• Security
• Intrusion Detection
• Contacts

Potter Electric Signal - Usa - 4410006 - Specifications

• Potter Electric Signal - Usa 4410006 Datasheet
