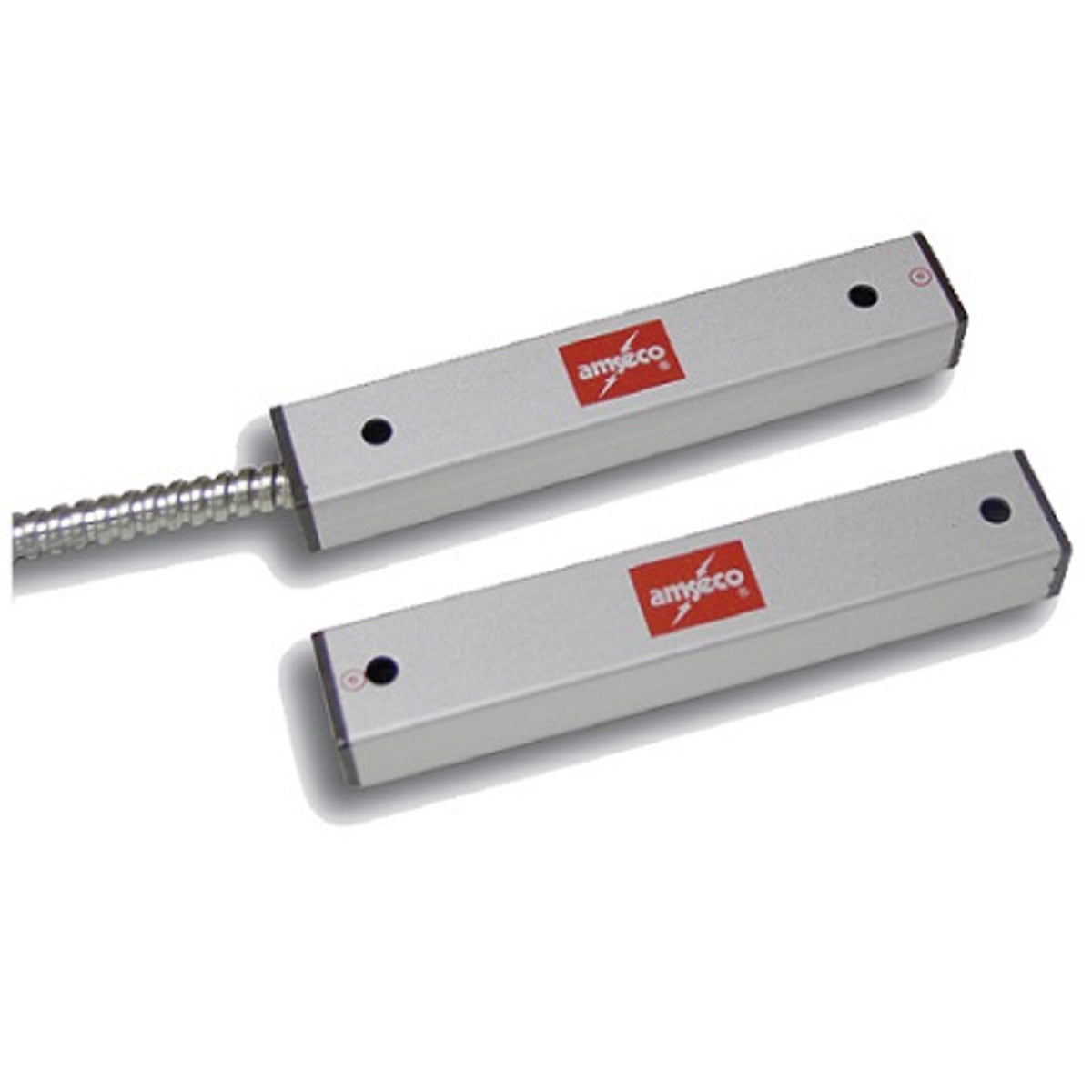

Potter Electric Signal - Usa 4440004 | Bmc-33B; Contact Anti-Defeat - Contact

Potter Electric Signal - Usa - 4440004 - Additional Information

• The BMC-33B Anti-Defeat Magnetic Contacts are uniquely designed and constructed to make defeating almost impossible. The switch housing contains specially arranged reed switches. These reed switches are pre-set in a biased format with ring magnets, producing a symmetrical magnetic field. The magnetic layout is designed with a combination of three polarized magnets. This switch and magnetic combination produces a perfect symmetrical magnetic field in a balanced condition, as if no magnet field existed. Any attempt to bypass or defeat the BMC-33B with an external magnet will cause the magnetic fields to be imbalanced, thus causing an alarm condition.
• 1 3/8 to 3 operating gap
• 24 armored cable
• Corrosion resistant
• Alnico 6 magnet
• Anodized aluminum housing
• Contact Rating - 3VA
• Contact Type - N.O./N.C.
• Max. Carry Current - .5 Amp
• Max. Switching Current - .5 Amp
• Breakdown Voltage - 200VDC Min.
• Operating Gap - 1 3/8 to 3
• Mounting Method - Screws
• Operating Temperature Range - 32°F to 120°F (0°C to 49°C)

Potter Electric Signal - Usa - 4440004 - Product Categories

• Security
• Intrusion Detection
• Contacts

Potter Electric Signal - Usa - 4440004 - Specifications

• Potter Electric Signal - Usa 4440004 Specification Sheet
• Potter Electric Signal - Usa 4440004 Datasheet
