Potter Electric Signal - Usa 4890002 | Mht-1224W Wall Mini Horn White - Horn

Potter Electric Signal - Usa - 4890002 - Additional Information

• Single unit is capable of 12 or 24 VDC determined by the input voltage
• Unit Dimensions: 4.48" (11.38cm) high x 2.84" (7.21 cm) wide x 0.5" (1.27 cm) deep
• Jumper selectable temporal 3 or continuous tone
• Horn frequency is 3100Hz
• Terminal blocks (12 AWG to 18 AWG)
• Low current consumption
• Variety of mounting options for new construction and retrofit applications
• Synchronize using the AVSM Series control module

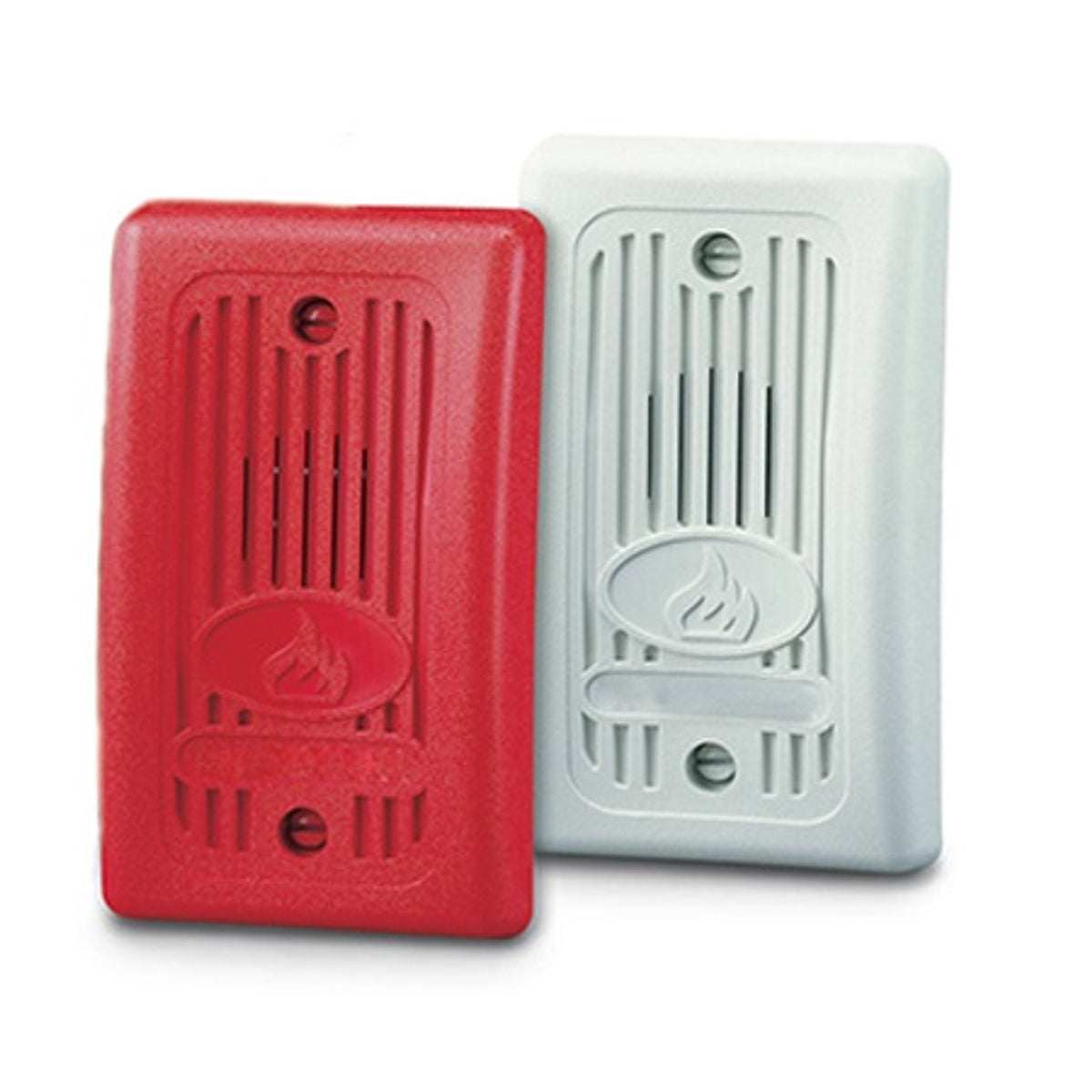

• The MHT-1224 Series mini-horn is a high quality remote audible signaling appliance that offers dependable remote annunciation. The MHT-1224 is ideal for applications where a dependable audible alarm signal is required in applications such as hotels, dormitories, and apartments. The MHT-1224 is listed for use with both filtered and unfiltered power and a jumper is provided to select either temporal 3 or continuous tone.
• The MHT-1224 can be used on the same sync circuit (AVSM Series Control Module) as other Potter signals. The MHT-1224 Series is ANSI/UL 464 listed for use with fire protective systems.

Potter Electric Signal - Usa - 4890002 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

Potter Electric Signal - Usa - 4890002 - Specifications

• Potter Electric Signal - Usa 4890002 Datasheet
