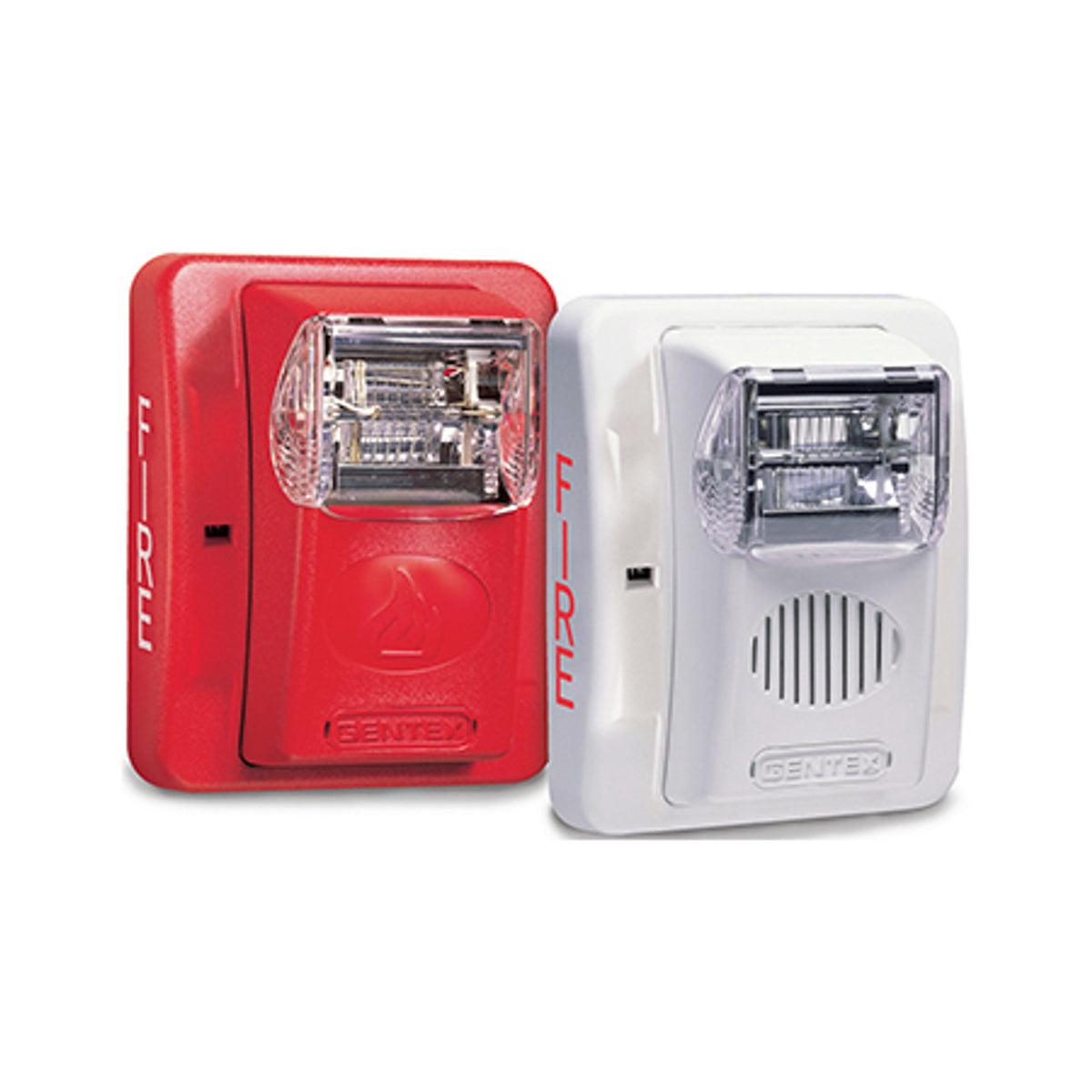

Potter Electric Signal - Usa 4890030 | Hs-24Wr Wall Selectable - Strobe

Potter Electric Signal - Usa - 4890030 - Additional Information

• 24VDC units have field selectable candela options of 15, 30, 60, 75, & 110
• Super-Slide Bracket - Ease of Supervision Testing
• Checkmate - Instant Voltage Verification
• Synchronize strobe and/or horn with AVSM Control Module
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Features
• 24VDC units have field selectable candela options of 15, 30, 60, 75, & 110
• Super-Slide Bracket - Ease of Supervision Testing
• Checkmate - Instant Voltage Verification
• Synchronize strobe and/or horn with AVSM Control Module
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals accept 12 to 18 AWG
• Switch selection for high or low dBA
• Switch for chime, whoop, mechanical and 2400Hz tone
• Tamperproof re-entrant style grill
• Switch for continuous or temporal 3 tone (not available on whoop tone)
• Surface mount with the AVBB (Surface Mount Back Box)
• Silence audible while visual appliance will remain flashing (for use in accepted jurisdictions)
• Faceplate available in red or off-white
• Operating Temperature
• 32°F to 120°F (0°C to 49°C). The HS and S Series are not listed for outdoor use.
• Unit Dimensions
• 5 (12.7 cm) high x 4.5 (11.43 cm) wide x 2.5 (6.35 cm) deep

Potter Electric Signal - Usa - 4890030 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

Potter Electric Signal - Usa - 4890030 - Specifications

• Potter Electric Signal - Usa 4890030 Specification Sheet
• Potter Electric Signal - Usa 4890030 Datasheet
