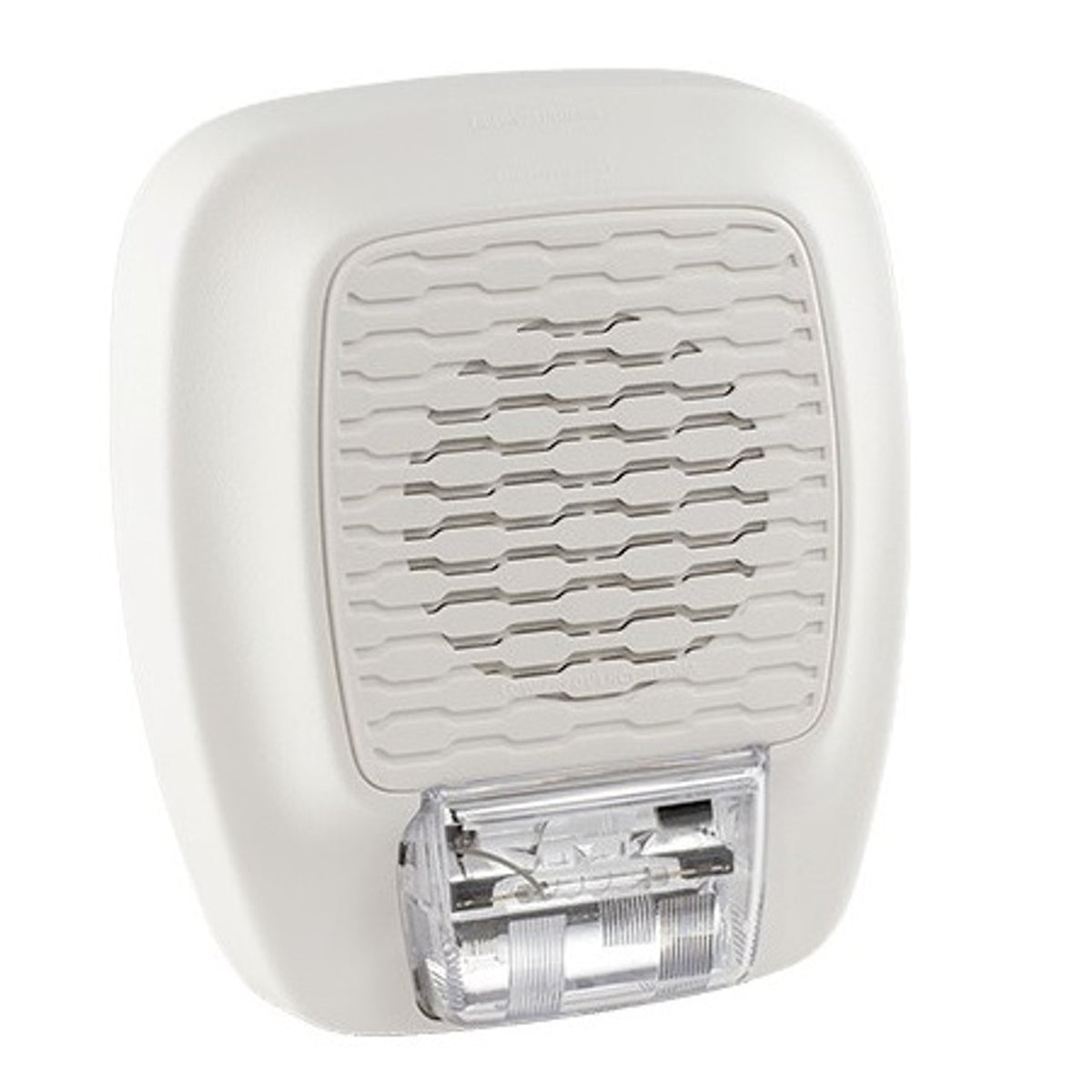

Potter Electric Signal - Usa 4890075 | Horn - Lfhs-177W:

Potter Electric Signal - Usa - 4890075 - Additional Information

• High quality, low profile, low frequency audible and visible appliance
• Produces a 520 Hz square wave, temporal 3 tone
• Fixed Candela options: 15, 110, and 177
• Jumper Selection for normal or loud dBA
• Input terminals accept 12 to 18 AWG
• Super-Slide Bracket - Ease of Supervision Testing
• Checkmate - Instant Voltage Verification
• Temporal 4 pattern available when used with compatible panels
• The LFHS is a high quality, low profile, low frequency audible and visible appliance that offers a dependable audible and visual alarm. The LFHS is ideal for any occupancy that requires low frequency notification appliances. The LFHS horn offers a 520 Hz square wave, temporal 3 tone.
• Specifications
• Mounting Options - Single or Double gang, or 4" square box
• Terminals - Screw-clamp Type
• Wire Gauge - 12 to 18 AWG
• Operating Voltage - 24 VDC
• Operating Temperature Range - 32ºF to 120ºF
• Dimensions - Height - 6.5", Width - 5.5", Depth - 2"

Potter Electric Signal - Usa - 4890075 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

Potter Electric Signal - Usa - 4890075 - Specifications

• Potter Electric Signal - Usa 4890075 Manual
