Brand: Potter Electric Signal - Usa
|
SKU:
954752

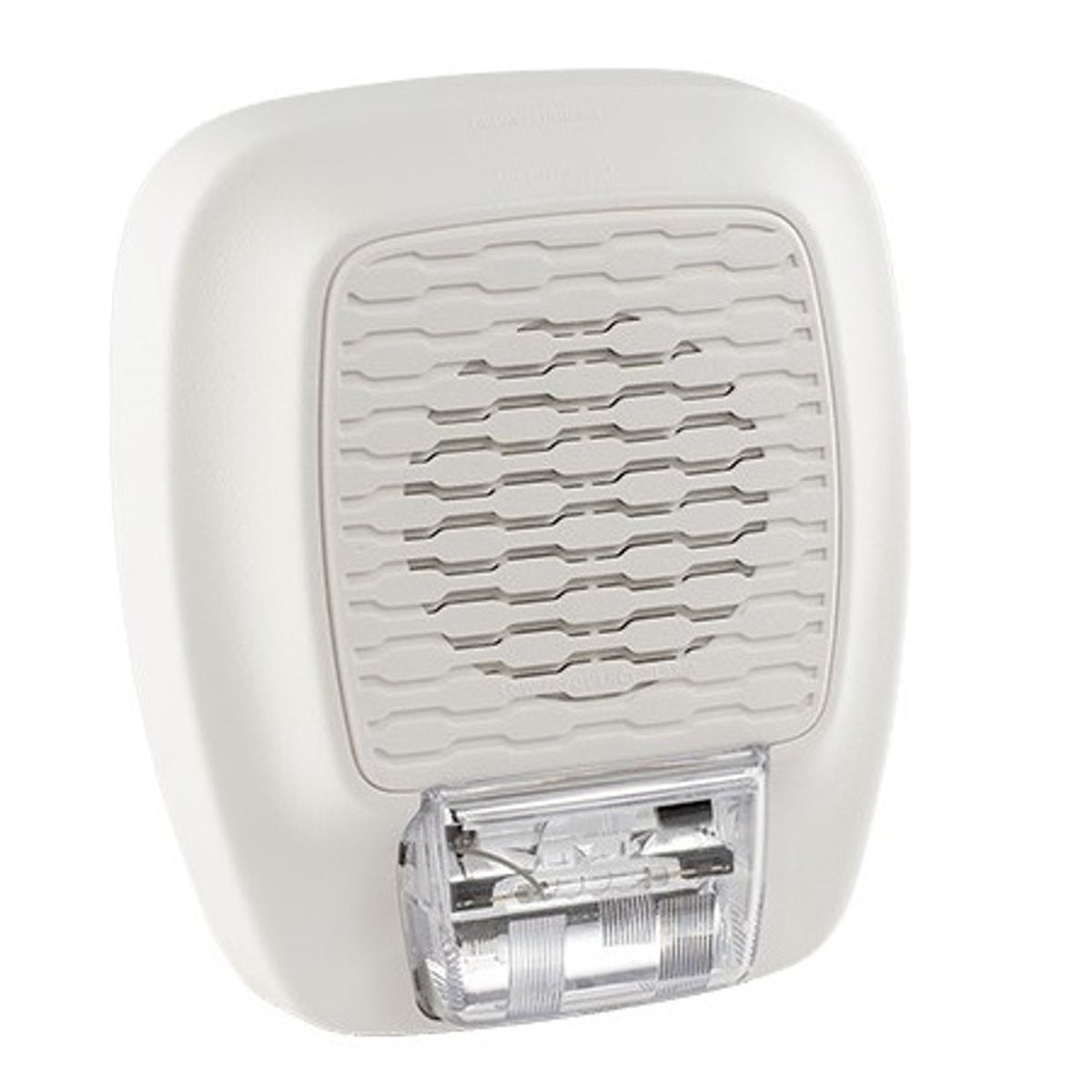

Potter Electric Signal - Usa 4890077 | LFHS-110W Low Freq Horn/Strobe 110CD
Regular price
$131.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Potter Electric Signal - Usa 4890077 | LFHS-110W Low Freq Horn/Stro...
Regular price
$131.94
Unit price
Brand: Potter Electric Signal - Usa
|
SKU:
954752
Regular price
$131.94
Unit price
Shipping calculated at checkout.
Description
Description
Potter Electric Signal - Usa 4890077 | LFHS-110W Low Freq Horn/Strobe 110CD
4890077 - Additional Information
- High quality, low profile, low frequency audible and visible appliance
- Produces a 520 Hz square wave, temporal 3 tone
- Fixed candela options: 15, 110, and 177
- Jumper Selection for normal or loud dBA
- Input terminals accept 12 to 18 AWG
- Super-Slide Bracket - Ease of Supervision Testing
- Checkmate - Instant Voltage Verification
- Temporal 4 pattern available when used with compatible panels
- The LFHS is a high quality, low profile, low frequency audible and visible appliance that offers a dependable audible and visual alarm. The LFHS is ideal for any occupancy that requires low frequency notification appliances. The LFHS horn offers a 520 Hz square wave, temporal 3 tone.
- Specifications
- Mounting Options - Single or Double gang, or 4" square box
- Terminals - Screw-clamp Type
- Wire Gauge - 12 to 18 AWG
- Operating Voltage - 24 VDC
- Operating Temperature Range - 32°F to 120°F
- Dimensions - Height - 6.5", Width - 5.5", Depth - 2"
Specifications
Specifications
Potter Electric Signal - Usa - 4890077 - Additional Information
- High quality, low profile, low frequency audible and visible appliance
- Produces a 520 Hz square wave, temporal 3 tone
- Fixed candela options: 15, 110, and 177
- Jumper Selection for normal or loud dBA
- Input terminals accept 12 to 18 AWG
- Super-Slide Bracket - Ease of Supervision Testing
- Checkmate - Instant Voltage Verification
- Temporal 4 pattern available when used with compatible panels
- The LFHS is a high quality, low profile, low frequency audible and visible appliance that offers a dependable audible and visual alarm. The LFHS is ideal for any occupancy that requires low frequency notification appliances. The LFHS horn offers a 520 Hz square wave, temporal 3 tone.
- Specifications
- Mounting Options - Single or Double gang, or 4" square box
- Terminals - Screw-clamp Type
- Wire Gauge - 12 to 18 AWG
- Operating Voltage - 24 VDC
- Operating Temperature Range - 32°F to 120°F
- Dimensions - Height - 6.5", Width - 5.5", Depth - 2"
Potter Electric Signal - Usa - 4890077 - Specifications
| Brand Name | Potter Electric Signal - Usa |
|---|---|
| Manufacturer Part Number | 4890077 |
| Item Description | LFHS-110W Low Freq Horn/Strobe 110CD |
