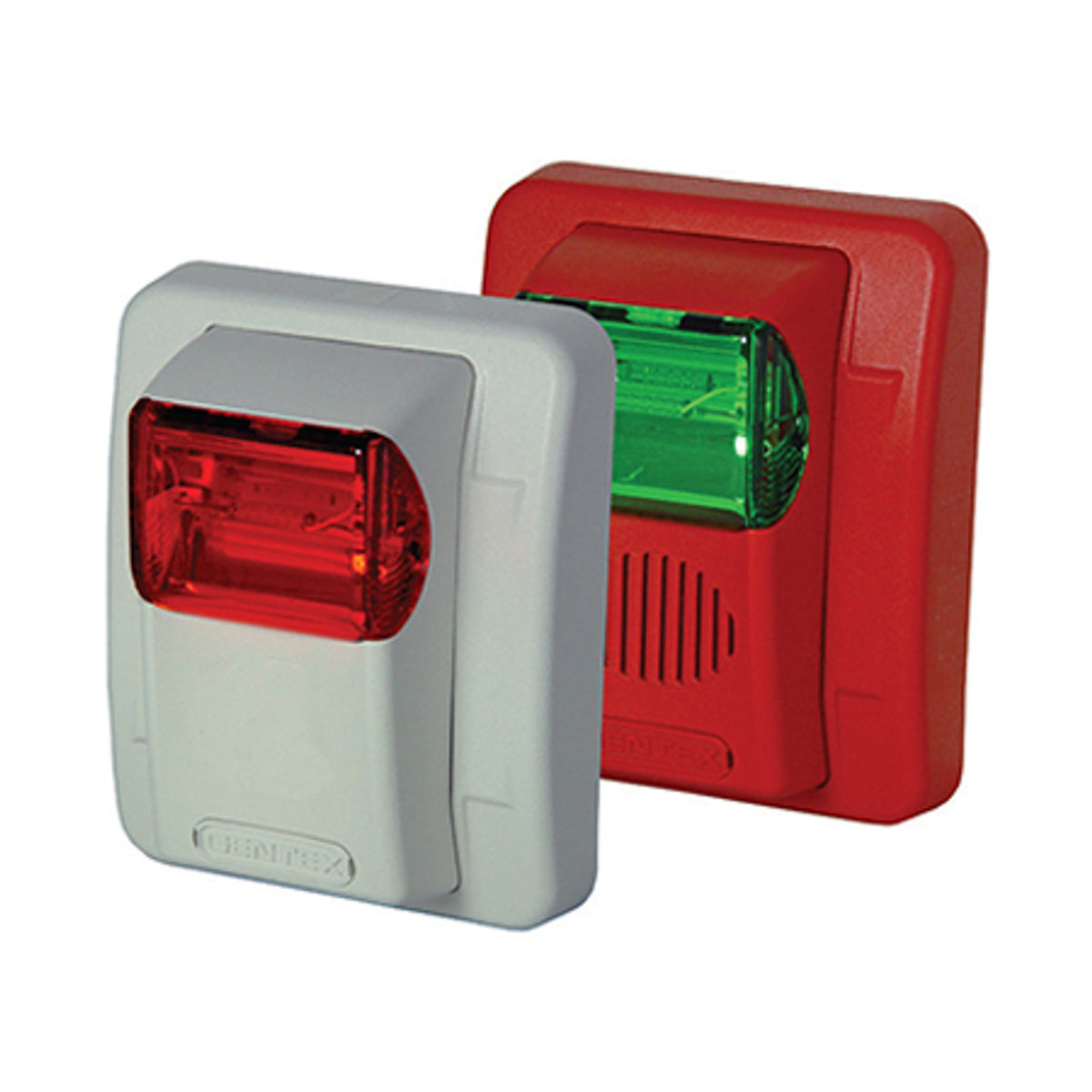

Potter Electric Signal - Usa 4890101 | Cs-24Waw Wall Mount Selectable - Contact

Potter Electric Signal - Usa - 4890101 - Additional Information

• Tamperproof field selectable candela settings of 15, 30, 60, 75, and 110
• Lens colors available in amber, blue, green, and red
• Super-Slide Bracket Ease of supervision testing
• Checkmate Instant voltage verification
• Synchronize strobe and/or horn with AVSM module
• Silence audible while visual appliance remains flashing
• Switch for chime, whoop, mechanical, and 2400Hz tone
• Switch for continuous or temporal 3 tone (not available on whoop)
• The CS Series Colored Lens Signals are 24VDC units available in lens colors of amber, blue, green, and red. The Series offers tamperproof field selectable options of 15, 30, 60, 75, and 110 candela. They have a minimal operating current and a minimum flash rate of 1Hz, regardless of input voltage. The strobes can be synced using a Gentex sync protocol or the AVSM Sync Module.
• The Colored Lens Series is shipped with a die-cast universal 4 mounting bracket which incorporates the popular Super-Slide feature that allows the installer to easily pre-wire the system and test for supervision. The product also features a locking mechanism that secures the signal to the bracket without showing any screws. The Colored Lens Series also features the Checkmate - Instant Voltage Verification Feature which allows the installer to check the voltage drop, current draw, and match against the blue print.
• Specifications
• Operating Voltage: Nominal 24VDC (16-33VDC)
• Environmental Limitations: 32°F - 120°F (0° - 49°C) Indoor Only
• Dimensions
• -5 H x 4.5 W x 2.5 D
• Wiring Connections: Terminals accept 18 - 12 AWG
• Mounting
• Single gang, double gang, or 4 square backbox
• Surface mount with AVBB
• Shipping Weight: 1.05 lbs.
