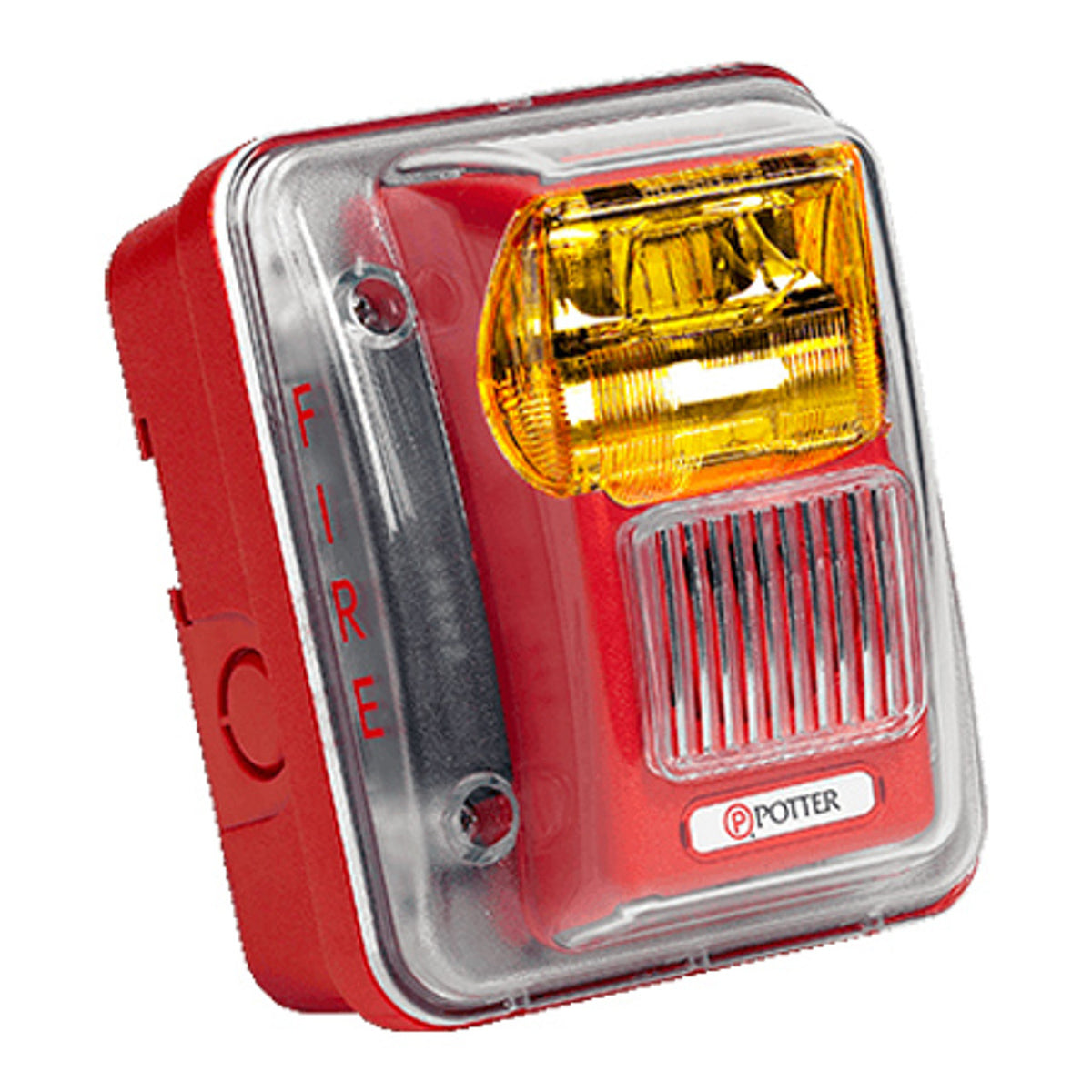

Potter Electric Signal - Usa 4890165 | Chs-24Gw-Wp Wall Mount - Control Panel

Potter Electric Signal - Usa - 4890165 - Additional Information

• Fixed 75cd strobe
• Available in surface-mount (standard) and Low Profile (LP) versions
• WPBB/LP made of clear Lexan- provides maximum visibility and reliability, allowing full 75cd output
• Lens colors available in amber, blue, green, and red
• Super-SlideBracket — Ease of supervision testing
• Checkmate- Instant voltage verification
• Synchronize strobe and/or horn with AVSM module
• Switch selection for high/low dBA
• The CS-WP Series Outdoor Colored Lens Signals are wall mount, low profile strobes that offer dependable audible and visual alarms for warning in outdoor locations. Applications include emergency communication, severe weather, emergency response and many more.
• The CS-WP Series Outdoor Colored Lens Signals are 24VDC units available in lens colors of amber, blue, green and red. The Series has a fixed 75 candela strobe. They have a minimal operating current and a minimum flash rate of 1Hz regardless of input voltage. The weatherproof enclosure is made of clear Lexan which provides maximum visibility and reliability for effective visible signaling, allowing full 75cd output. The strobes can be synced using a Gentex sync protocol or the AVSM Smounted electrical box.
• Specifications
• Operating Voltage: Nominal 24VDC (16-33VDC)
• Operating Temperature: -31°F - 150°F (-35° - 66°C)
• Dimensions
• LP Version - 5.75 H x 4.75 W x 3.25 D
• Standard - 5.75 H x 4.75 W x 4.18 D
• Wiring Connections: Terminals accept 18 - 12 AWG
• Mounting: LP Version – Single gang, double gang, or 4 square back box Standard Version - Surface mount back box included
• Shipping Weight: 2.05 lbs.

Potter Electric Signal - Usa - 4890165 - Product Categories

• Security
• Fire Alarm Systems
• Control Panels

Potter Electric Signal - Usa - 4890165 - Specifications

• Potter Electric Signal - Usa 4890165 Datasheet
