Potter Electric Signal - Usa 4890220 | Spkstr-24Clpr Ceiling - Speaker

Potter Electric Signal - Usa - 4890220 - Additional Information

• 24VDC tamperproof selectable candela options of 15, 30, 60,75, and 110
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps - 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw Terminals, separate in/out wiring (18-12 gauge)
• Tamperproof grill

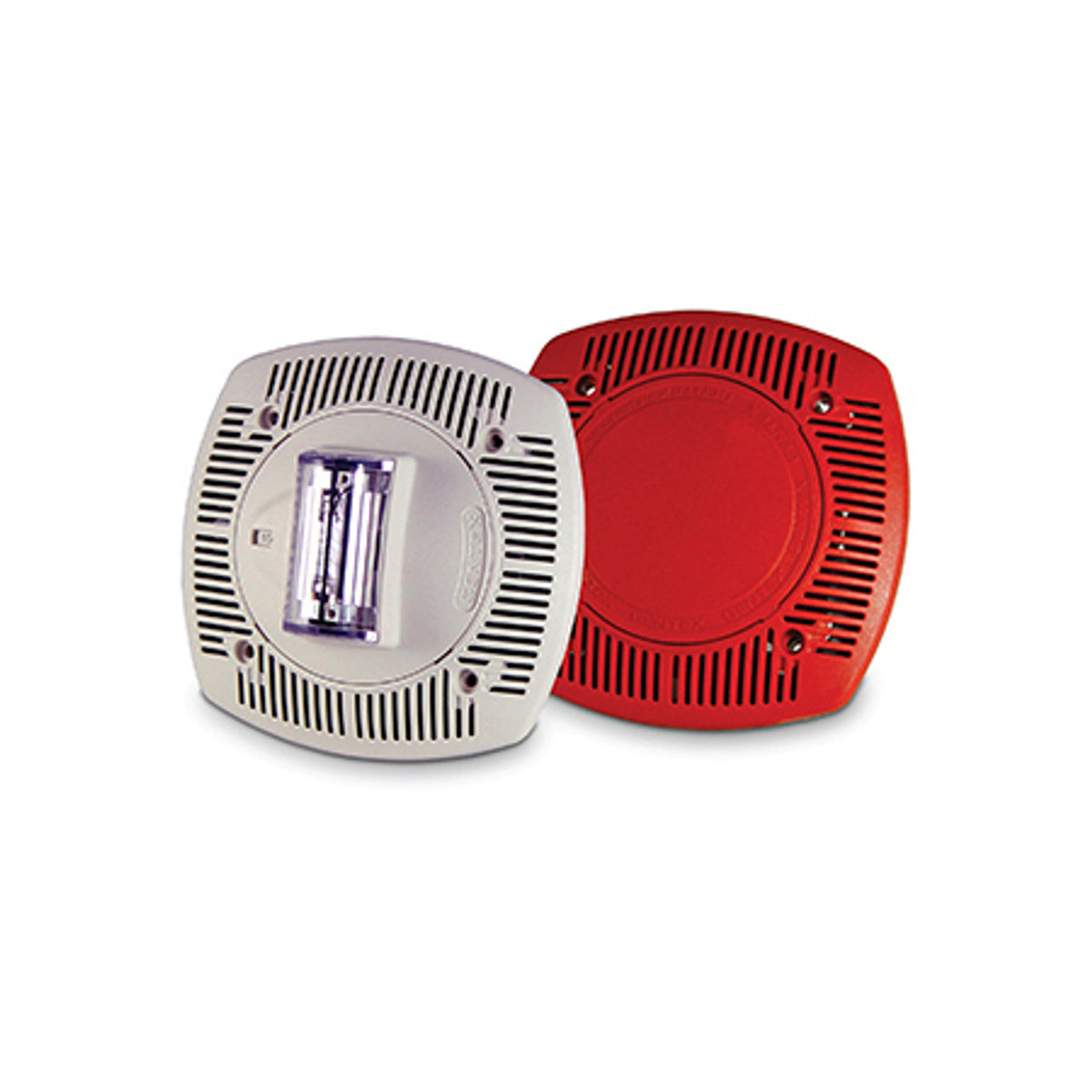

• Faceplate available in red or off-white
• The SPKSTR-24CLP has high output tamperproof candela selections of 15, 30, 75, 95, and 115. The SPKSTR-24CLP and FASPKR provide a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The SPKSTR-24CLP strobes can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.
• The SPKSTR-24CLP and FASPKR can be mounted to a 4 X 2 1/8 deep back box without an extension ring or Potter SPKRBB surface back box.
• The SPKSTR-24CLP and FASPKR are constructed of high textured plastic.
• Specifications
• Speaker Operating Voltage: 25VRMs or 70.7VRMs
• Strobe Operating Voltage: 16-33VDC
• Synchronization Module: Potter AVSM
• Environmental Limitations
• 32°F to 120°F
• Indoor Only
• Unit Dimensions
• 6.1 (15.494cm) square
• X 1.88 (4.7752cm) deep
• Back Box
• 4 X 2 1/8 deep box or Potter
• SPKRBB surface back box
• Shipping Weight: 1.5 lbs.

Potter Electric Signal - Usa - 4890220 - Product Categories

• Audio and Visual
• Audio Equipment
• Speakers

Potter Electric Signal - Usa - 4890220 - Specifications

• Potter Electric Signal - Usa 4890220 Datasheet
