Potter Electric Signal - Usa 4890250 | Avsm-R Sync Module Red - Module

Potter Electric Signal - Usa - 4890250 - Additional Information

• Operates with S-24, HS-24, CS, and CHS series.
• Synchronize horn and strobe with the use of only two wires.
• No limit to the number of modules that can be synchronized together.
• Module is rated for 3 amps continuous current and 5 amps surge or inrush current.
• Synchronizes to 1Hz flash rate.
• Operates 1 class 'A' circuit or 2 class 'B' circuits at 3 amps per circuit.
• Dual synchronization module ONLY when using 2 class 'B' circuits.
• A green LED status indicator to signal operation of module.
• The Potter AVSM synchronization control module is designed to provide an easy way to synchronize multiple horns, strobes, and horns/strobes using only two wires in isntances where a synchronized flash is required. When synchronizing multiple horns and horn/strobes there is the ability to silence the horn while allowing the strobes to continue to flash.
• Incorporating the control module as shown in the following diagrams, the control module will control the power to the signaling device to produce synchronized operation.

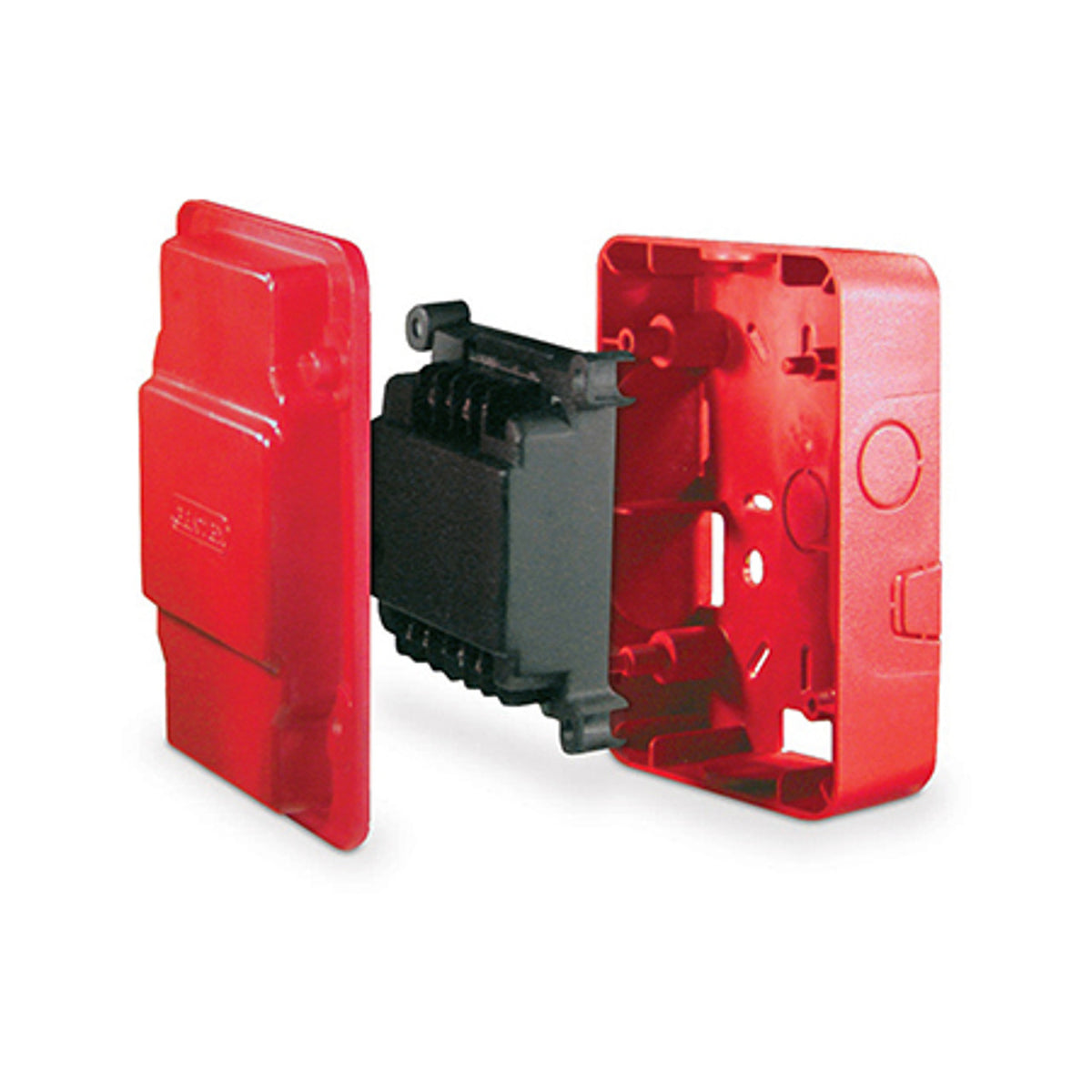

• The AVSM module is shipped with a back box and cover plate. A green LED status indicator will flash once every four seconds if zone 1 is operational. The LED will flash twice every four seconds if zones 1 and 2 are operational. Strobes should not be used on coded or pulsing signaling circuits.
