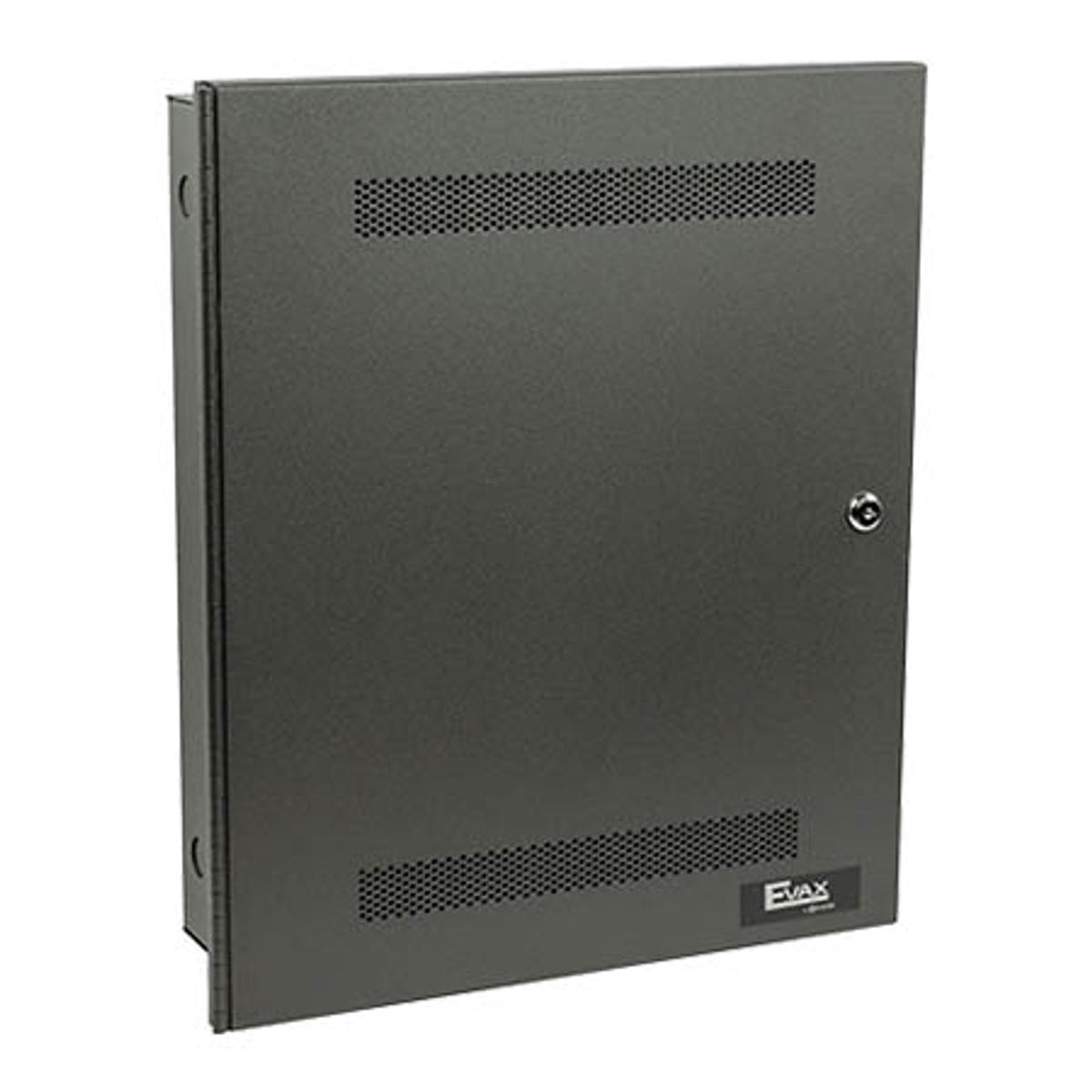

Potter Electric Signal - Usa EVAX-25E | Voice Expander Panel - Gray

Potter Electric Signal - Usa - EVAX-25E - Additional Information

• 25, 50, or 100 Watt Voice Evacuation Expander
• Microphone capable for voice communication
• Temporal whoop alarm tone
• Built-in power supply with battery charger
• 25 or 70 VRMS operation - field selectable with no additional parts required
• Power expansion of any Evax System
• Available as Expander Panels (model number EVAX Series), or as Expander Modules (model number EVX Series)
• The Evax Systems Voice Evacuation System Expander Panels and Modules provide an easy and cost-effective way to increase the output power of an EVAX 25W voice evacuation system.
• Specifications
• Primary Power - 24-30V AC/DC
• Current - 1.00A Alarm, 0.18 Standby
• Avg. Current Draw in Alarm - 1.0 A, 2.5A peak
• Output - 25 Watts
• Backbox Dimensions (WxHxD) - 14.5”x 18”x 4”
• Color - Charcoal Grey (Standard), Red (Optional)

Potter Electric Signal - Usa - EVAX-25E - Specifications

• Potter Electric Signal - Usa EVAX-25E Datasheet
