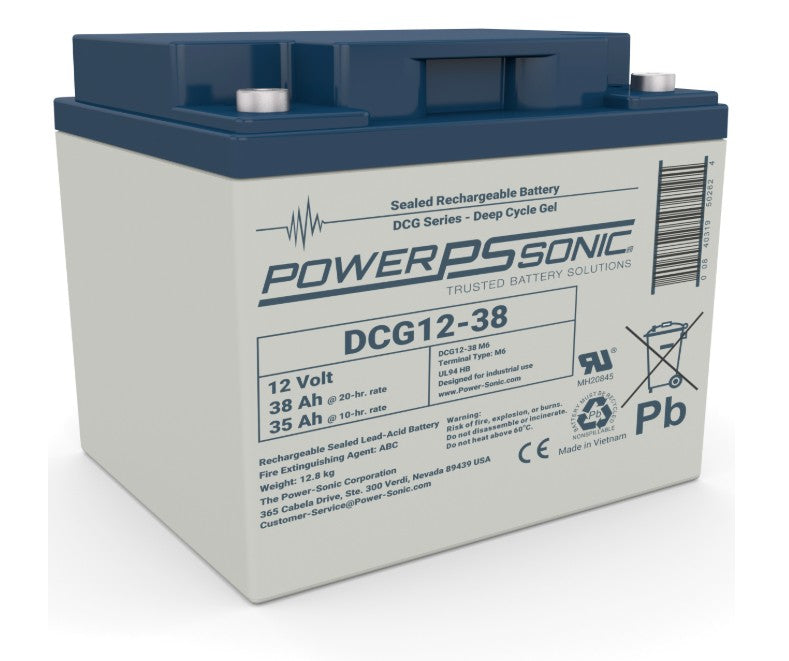

Powersonic 1203808405 | DCG12-38 12V 38Ah Gel Battery (B)
Description
Description
The DCG12-38 is part of our Gel VRLA range. This 12.0V and 38.0Ah battery provides deep discharge recovery and strong vibration resistance. Features include Gas Recombination, Gel Electrolyte, Power Volume Ratio, SLA ABS Case, SLA Cycle Life, and SLA Maintenance Free. These batteries are commonly used in Golf Carts, Medical, Mobility, Signaling (Air,Rail,Sea), Solar, Telecomm, and Wind requiring deep cycle endurance in harsh and high temperature environments. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 1203808405 - Specifications
| Nominal Voltage | 12.0 Volts, (6.0 cells) |
|---|---|
| Stored Energy (Wh) | 456.0 |
| Cycle Constant Voltage Range | 14.10V-14.40V-30mV/? |
| Float Constant Voltage Range | 13.38V-13.62V-18mV/? |
| Initial Charging Current (A) | 9.5 |
| Max Continuous Discharge Current (A) | 380.0 |
| Internal Resistance (m?) | 13.3 |
| Short Circuit Current (A) | 874.0 |
| Recommended Chargers | PSC-122000ACX |
| Case Material | ABS (UL94 HB or V-0 optional) |
| Approximate Weight lbs (kg) | 28.22 (12.8) |
| Length in (mm) | 7.76 (197.0) |
| Width in (mm) | 6.5 (165.0) |
| Height in (mm) | 6.69 (170.0) |
| Height Over Terminal in (mm) | 6.69 (170.0) |
