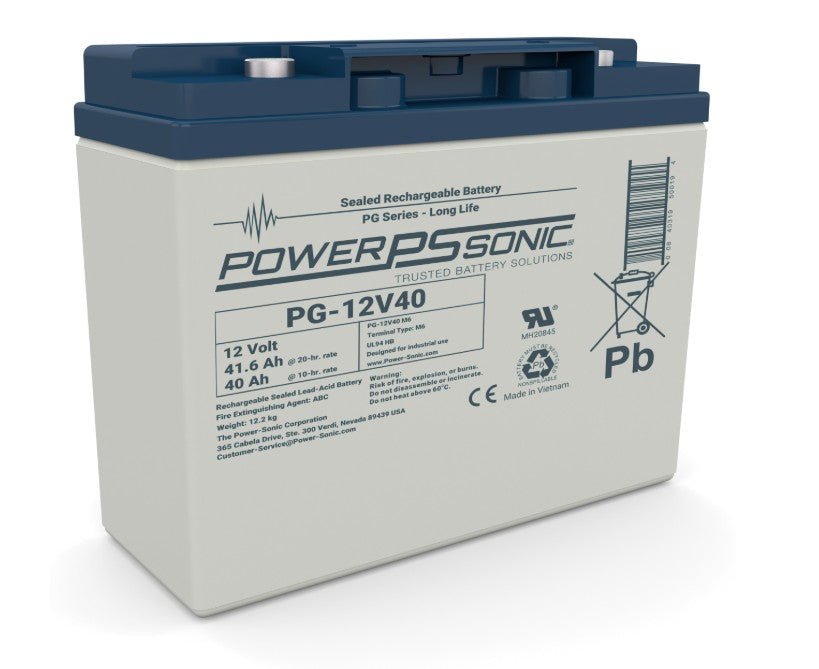

Powersonic 1204008419 | PG-12V40 12V 40Ah (20HR) Battery
Description
Description
The PG-12V40 is part of our Long Life AGM range. This 12.0V and 41.6Ah battery provides long cycle life and deep discharge capability. Features include AGM Technology, SLA ABS Case, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Emergency Lighting, Fire Security, Solar, Telecomm, UPS, Utility, and Wind requiring extended service life and dependable standby power. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 1204008419 - Specifications
| Nominal Voltage | 12.0 Volts, (6.0 cells) |
|---|---|
| Stored Energy (Wh) | 499.2 |
| Cycle Constant Voltage Range | 14.00V – 14.70V |
| Float Constant Voltage Range | 13.50V-13.80V-18mV/? |
| Initial Charging Current (A) | 12.48 |
| Max Continuous Discharge Current (A) | 380.0 |
| Internal Resistance (m?) | 10.0 |
| Short Circuit Current (A) | 1000.0 |
| Recommended Chargers | PSC-124000ACX |
| Case Material | ABS (UL94 HB or V-0 optional) |
| Approximate Weight lbs (kg) | 26.9 (12.2) |
| Length in (mm) | 10.04 (255.0) |
| Width in (mm) | 3.82 (97.0) |
| Height in (mm) | 7.99 (203.0) |
| Height Over Terminal in (mm) | 7.99 (203.0) |
