Powersonic 1205508417 | PGFT-12V55 12V 55Ah @10HR Front Terminal Ba...
Description
Description

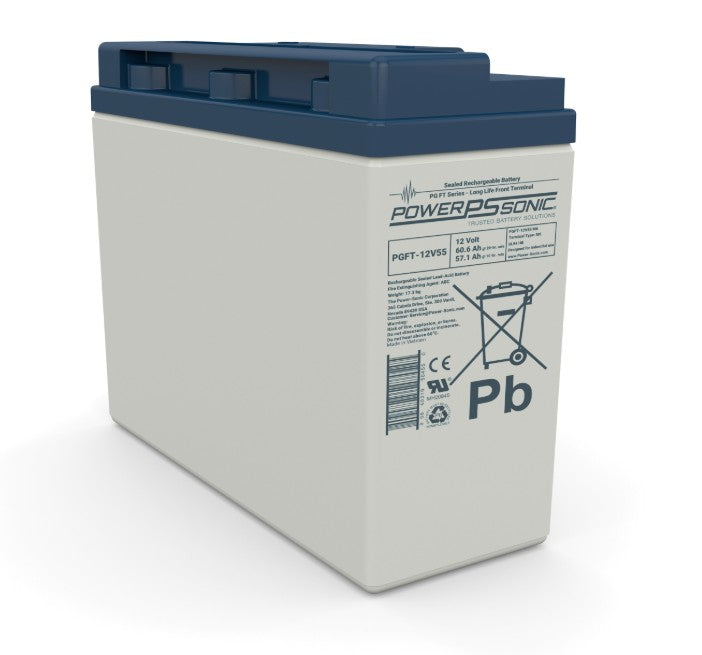

The PGFT-12V55 is part of our Front Terminal AGM range. This 12.0V and 60.6Ah battery provides a space efficient design and simplified installation. Features include AGM Technology, Front Terminal, Long Shelf Life, Power Volume Ratio, SLA ABS Case, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Edge Data Center, Emergency Lighting, Telecomm, UPS, and Utility requiring long service life and high-rate discharge capability. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 1205508417 - Specifications
| Nominal Voltage | 12.0 Volts, (6.0 cells) |
|---|---|
| Stored Energy (Wh) | 727.2 |
| Cycle Constant Voltage Range | 14.00V – 14.70V |
| Float Constant Voltage Range | 13.50V-13.80V-18mV/? |
| Initial Charging Current (A) | 18.18 |
| Max Continuous Discharge Current (A) | 550.0 |
| Internal Resistance (m?) | 7.6 |
| Short Circuit Current (A) | 1313.0 |
| Recommended Chargers | PSC-126000ACX |
| Case Material | ABS (UL94 HB or V-0 optional) |
| Approximate Weight lbs (kg) | 38.14 (17.3) |
| Length in (mm) | 10.91 (277.0) |
| Width in (mm) | 4.17 (106.0) |
| Height in (mm) | 8.74 (222.0) |
| Height Over Terminal in (mm) | 8.74 (222.0) |
