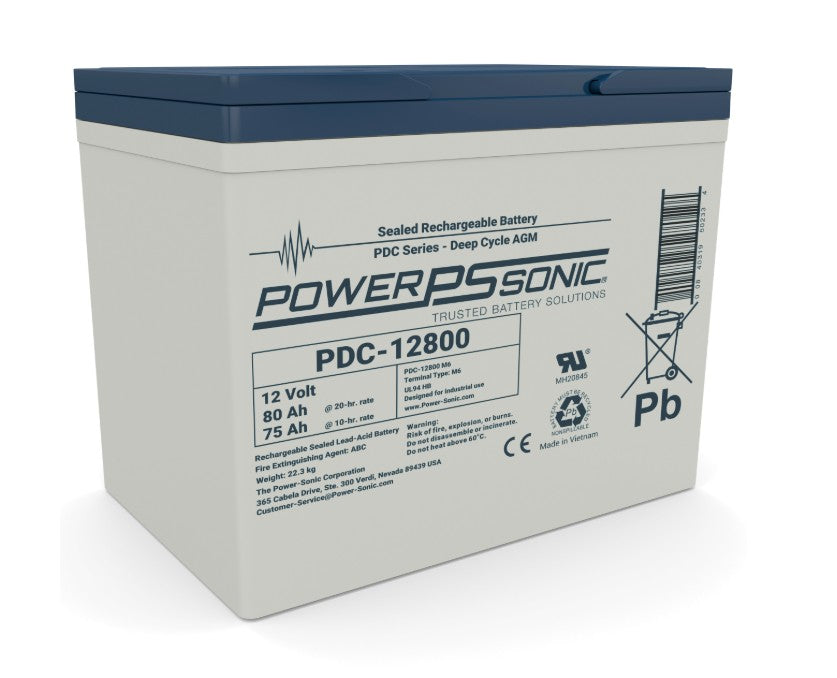

Powersonic 1208008406 | PDC-12800B 12V 80Ah Battery (B Terminals)
Description
Description
The PDC-12800 is part of our Deep Cycle AGM range. This 12.0V and 80.0Ah battery features long cycle life and deep discharge capability. Key advantages include AGM Technology, Deep Cycle Paste, Power Volume Ratio, SLA ABS Case, and SLA Maintenance Free and suitability for Golf Carts, Medical, Mobility, Solar, and Wind. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 1208008406 - Specifications
| Nominal Voltage | 12.0 Volts, (6.0 cells) |
|---|---|
| Stored Energy (Wh) | 960.0 |
| Cycle Constant Voltage Range | 14.10V-14.40V-30mV/? |
| Float Constant Voltage Range | 13.50V-13.80V-18mV/? |
| Initial Charging Current (A) | 24.0 |
| Max Continuous Discharge Current (A) | 900.0 |
| Internal Resistance (m?) | 7.2 |
| Short Circuit Current (A) | 1725.0 |
| Recommended Chargers | PSC-126000ACX |
| Case Material | ABS |
| Approximate Weight lbs (kg) | 50.04 (22.7) |
| Length in (mm) | 10.24 (260.0) |
| Width in (mm) | 6.61 (168.0) |
| Height in (mm) | 8.19 (208.0) |
| Height Over Terminal in (mm) | 9.06 (230.0) |
