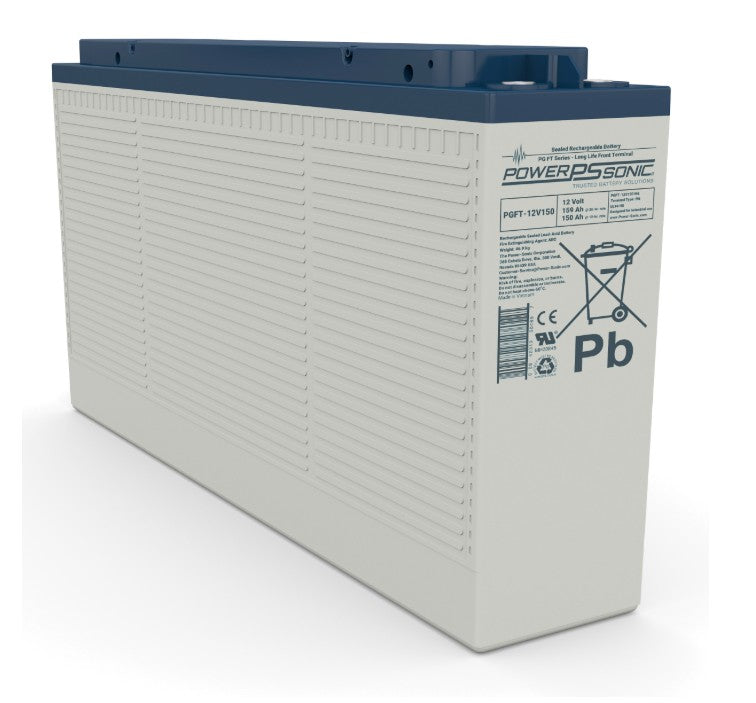

Powersonic 1215008417 | PGFT-12V150 12V 150Ah @10HR Front Terminal Battery
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Powersonic 1215008417 | PGFT-12V150 12V 150Ah @10HR Front Terminal ...
Description
Description
The PGFT-12V150 is part of our Front Terminal AGM range. This 12.0V and 158.8Ah battery provides a space efficient design and simplified installation. Features include AGM Technology, Front Terminal, Long Shelf Life, Power Volume Ratio, SLA ABS Case, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Edge Data Center, Emergency Lighting, Telecomm, UPS, and Utility requiring long service life and high-rate discharge capability. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 1215008417 - Specifications
| Nominal Voltage | 12.0 Volts, (6.0 cells) |
|---|---|
| Stored Energy (Wh) | 1905.6 |
| Cycle Constant Voltage Range | 14.00V – 14.70V |
| Float Constant Voltage Range | 13.50V-13.80V-18mV/? |
| Initial Charging Current (A) | 47.64 |
| Max Continuous Discharge Current (A) | 1500.0 |
| Internal Resistance (m?) | 4.3 |
| Short Circuit Current (A) | 2400.0 |
| Recommended Chargers | PSC-1212000ACX |
| Case Material | ABS (UL94 HB or V-0 optional) |
| Approximate Weight lbs (kg) | 103.4 (46.9) |
| Length in (mm) | 21.69 (551.0) |
| Width in (mm) | 4.33 (110.0) |
| Height in (mm) | 11.34 (288.0) |
| Height Over Terminal in (mm) | 11.34 (288.0) |
