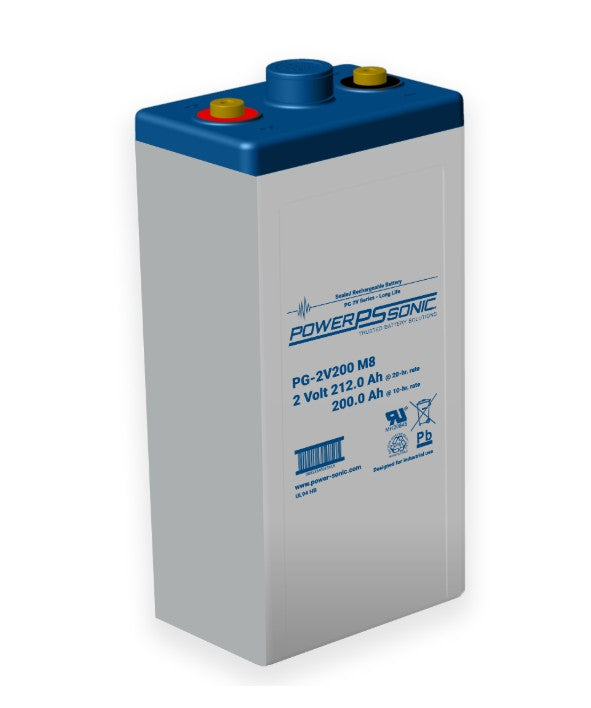

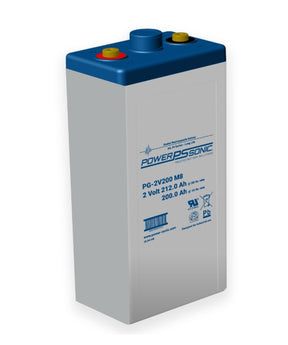

Powersonic 202008419 | PG-2V200 M8 2V 212Ah (20HR) Long Life Battery (HB Case)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Powersonic 202008419 | PG-2V200 M8 2V 212Ah (20HR) Long Life Batter...
Description
Description
The PG-2V200 is part of our 2V Telecom and Utility Cells range. This 2.0V and 212.0Ah battery cell provides durability in light cyclic uses. Features include AGM Technology, Off Grid Capacity, SLA ABS Case, SLA Discharge Recovery, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Emergency Lighting, Fire Security, Solar, Telecomm, UPS, Utility, and Wind requiring demanding standby power. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Specifications
Specifications
Powersonic - 202008419 - Specifications
| Nominal Voltage | 2.0 Volts, (1.0 cells) |
|---|---|
| Stored Energy (Wh) | 424.0 |
| Cycle Constant Voltage Range | 2.33V - 2.45V |
| Float Constant Voltage Range | 2.25V-2.30V-3mV/? |
| Initial Charging Current (A) | 63.6 |
| Max Continuous Discharge Current (A) | 1600.0 |
| Internal Resistance (m?) | 0.9 |
| Short Circuit Current (A) | 3600.0 |
| Case Material | ABS (UL94 HB or V-0 optional) |
| Approximate Weight lbs (kg) | 29.54 (13.4) |
| Length in (mm) | 6.69 (170.0) |
| Width in (mm) | 4.33 (110.0) |
| Height in (mm) | 12.91 (328.0) |
| Height Over Terminal in (mm) | 13.7 (348.0) |
